Headline

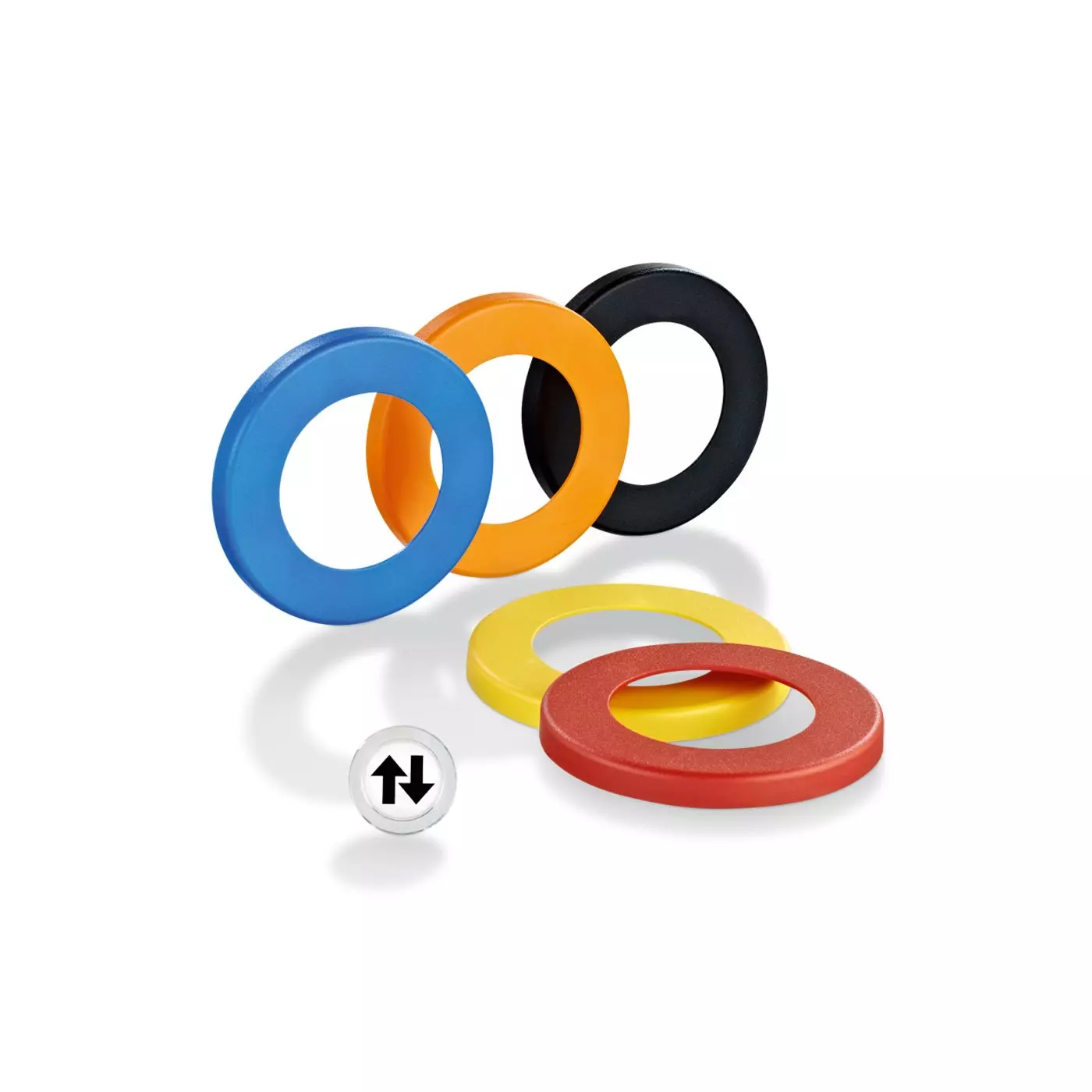

Symbol discs and cover rings
Capacitive touch sensors can be used, for example, as a start and stop button on machines, as enable switches and for opening and closing gates. Compared to mechanical switches the sensors operate without wear. The symbol disc for the sensing face is snapped on after installation of the sensor. No sensor alignment is required during installation. For 100 mm diameter touch sensors, coloured cover rings can be used to mark different functions.
Features & Benefits
- Simple clipping of the symbol disc in the touch sensor
- Robust design for use in harsh industrial environments
- Reliable identification of different functions
Additional Notes
| MPN | Product designation | Design | Dimensions | Material | Labeling / symbol |
|---|---|---|---|---|---|
| E12377 | Symbol disc (plastic) | for type KT M22 | Ø 15.5 mm | PA Grilamid TR 90UV | |
| E12378 | Symbol disc (plastic) | for type KT M22 | Ø 15.5 mm | PA Grilamid TR 90UV | |
| E12379 | Symbol disc (plastic) | for type KT M22 | Ø 15.5 mm | PA Grilamid TR 90UV | |
| E12380 | Symbol disc (plastic) | for type KT M22 | Ø 15.5 mm | PA Grilamid TR 90UV | |
| E12386 | Symbol disc (plastic) | for type KT M22 | Ø 15.5 mm | PA Grilamid TR 90UV | |
| E80372 | Cover ring 100 mm | for type KT50 | 100 x 10 x 100 mm | polycarbonate-ABS yellow | |
| E80373 | Cover ring 100 mm | for type KT50 | 100 x 10 x 100 mm | polycarbonate-ABS green | |
| E80374 | Cover ring 100 mm | for type KT50 | 100 x 10 x 100 mm | polycarbonate-ABS red | |
| E80375 | Cover ring 100 mm | for type KT50 | 100 x 10 x 100 mm | polycarbonate-ABS blue | |
| E80376 | Cover ring 100 mm | for type KT50 | 100 x 10 x 100 mm | polycarbonate-ABS orange |
