Headline

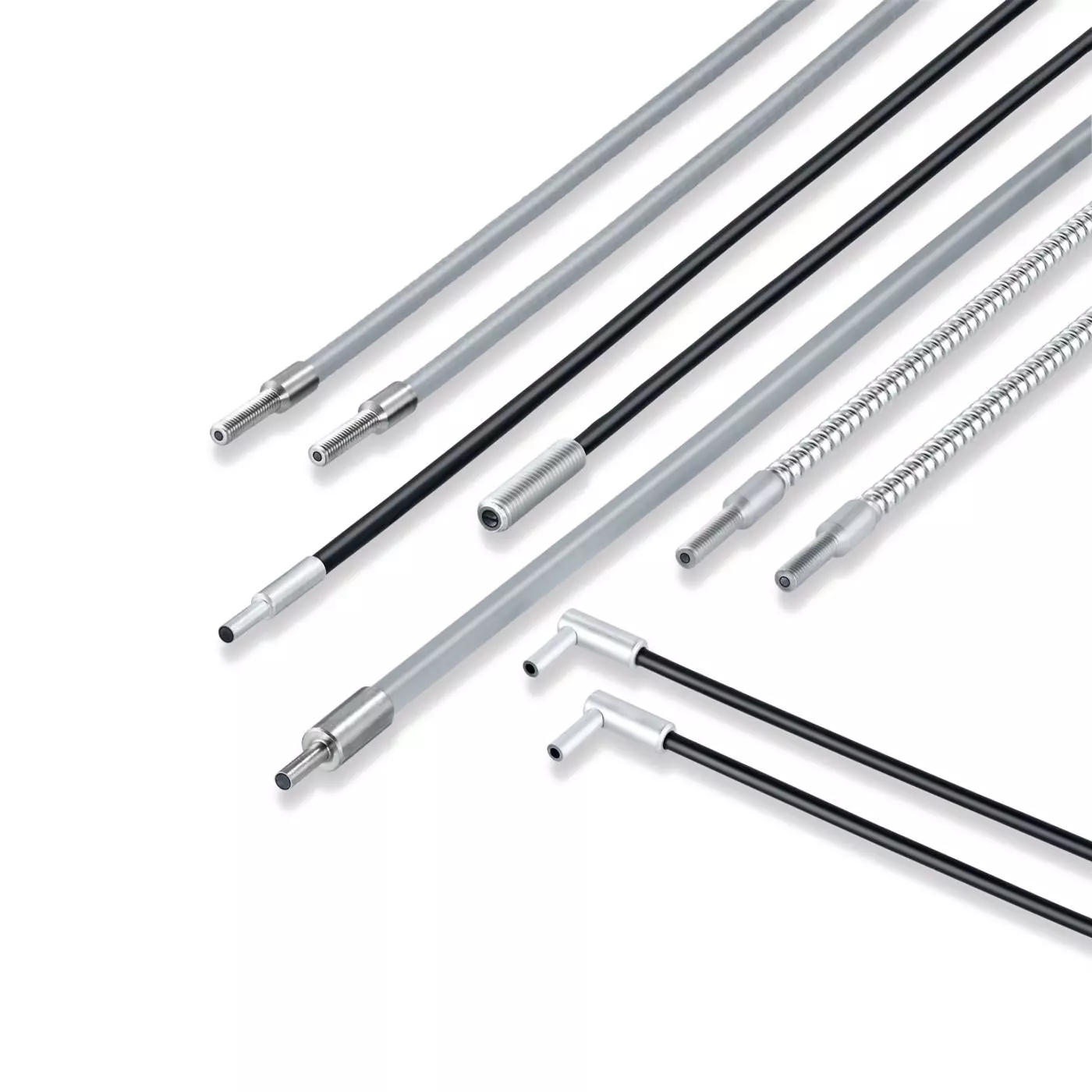

Acrylic fibre optics
Fibre optic systems are used where mounting space for photoelectric standard sensors is restricted. The evaluation unit and the fibre optics are mounted separately. These systems can therefore be installed in places where access is difficult.
Fibre optic systems are designed as through-beam or diffuse reflection sensors.
Acrylic fibre optic sensors are suited for standard applications if no particular demands such as heat or chemical resistance are made. They can be cut to length and are less expensive than glass fibre optic sensors.
Features & Benefits
- For installation with limited mounting space
- Operation as through-beam sensor or diffuse reflection sensor
- Different designs and sensing heads for a large variety of applications
- Bulk fiber available for cut-to-length applications
- High-flex versions for extremely small bending radii
Additional Notes
| MPN | Product designation | Dimensions | Thread length | Inside diameter | Material |
|---|---|---|---|---|---|
| E20065 | diffuse reflection sensor | 25 mm | Adapter: ABS | ||
| E20511 | diffuse reflection sensor | 25 mm | |||
| E20565 | diffuse reflection sensor | ||||
| E20571 | diffuse reflection sensor | ||||
| E20603 | Through-beam sensor | 13 mm | |||
| E20606 | Through-beam sensor | ||||
| E20609 | Through-beam sensor | ||||
| E20612 | Through-beam sensor | ||||
| E20615 | Through-beam sensor | ||||
| E20633 | diffuse reflection sensor | 26 mm | |||
| E20639 | diffuse reflection sensor | ||||
| E20645 | diffuse reflection sensor | ||||
| E20648 | diffuse reflection sensor | 26 mm | |||
| E20651 | diffuse reflection sensor | ||||
| E20654 | diffuse reflection sensor | 26 mm | |||
| E20692 | diffuse reflection sensor | ||||
| E20703 | Through-beam sensor | ||||
| E20711 | diffuse reflection sensor | ||||
| E20712 | diffuse reflection sensor | 13 mm | |||
| E20714 | Through-beam sensor | ||||
| E20715 | diffuse reflection sensor | ||||
| E20748 | diffuse reflection sensor | threaded sleeve: brass white bronze coated | |||
| E20749 | diffuse reflection sensor | threaded sleeve: brass white bronze coated | |||
| E20750 | Through-beam sensor | threaded sleeve: brass white bronze coated | |||
| E20752 | Through-beam sensor | ||||
| E20753 | Through-beam sensor | ||||
| E20756 | diffuse reflection sensor | ||||
| E20757 | Through-beam sensor | ||||
| E20765 | Sensing head diffuse reflection sensor | brass white bronze coated | |||
| E20767 | Sensing head through-beam sensor | brass white bronze coated | |||
| E20772 | Coupling system Duplex | ||||
| E20773 | acrylic fibres on a reel | ||||
| E20774 | acrylic fibres on a reel | ||||
| E21102 | Through-beam sensor | ||||
| E21103 | Through-beam sensor | ||||
| E21104 | Through-beam sensor | ||||
| E21105 | diffuse reflection sensor | 23 mm | |||
| E21106 | diffuse reflection sensor | 15 mm | |||
| E21107 | diffuse reflection sensor | 12 mm |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-110070020 | ifm Accessories - for fiber optic sensors - Glass fiber optics | $0.01 | |
| IFM-110070030 | ifm Accessories - for fiber optic sensors - fiber optics for high temperatures | $0.01 | |
| IFM-110070040 | ifm Accessories - for fiber optic sensors - Mounting clamps | $0.01 | |
| IFM-110070060 | ifm Accessories - for fiber optic sensors - Coupling systems | $0.01 | |
| IFM-110070070 | ifm Accessories - for fiber optic sensors - Cutters | $0.01 | |
| IFM-110070080 | ifm Accessories - for fiber optic sensors - Diaphragms | $0.01 | |
| IFM-110070090 | ifm Accessories - for fiber optic sensors - Lens attachments | $0.01 |
