Mounting adapters

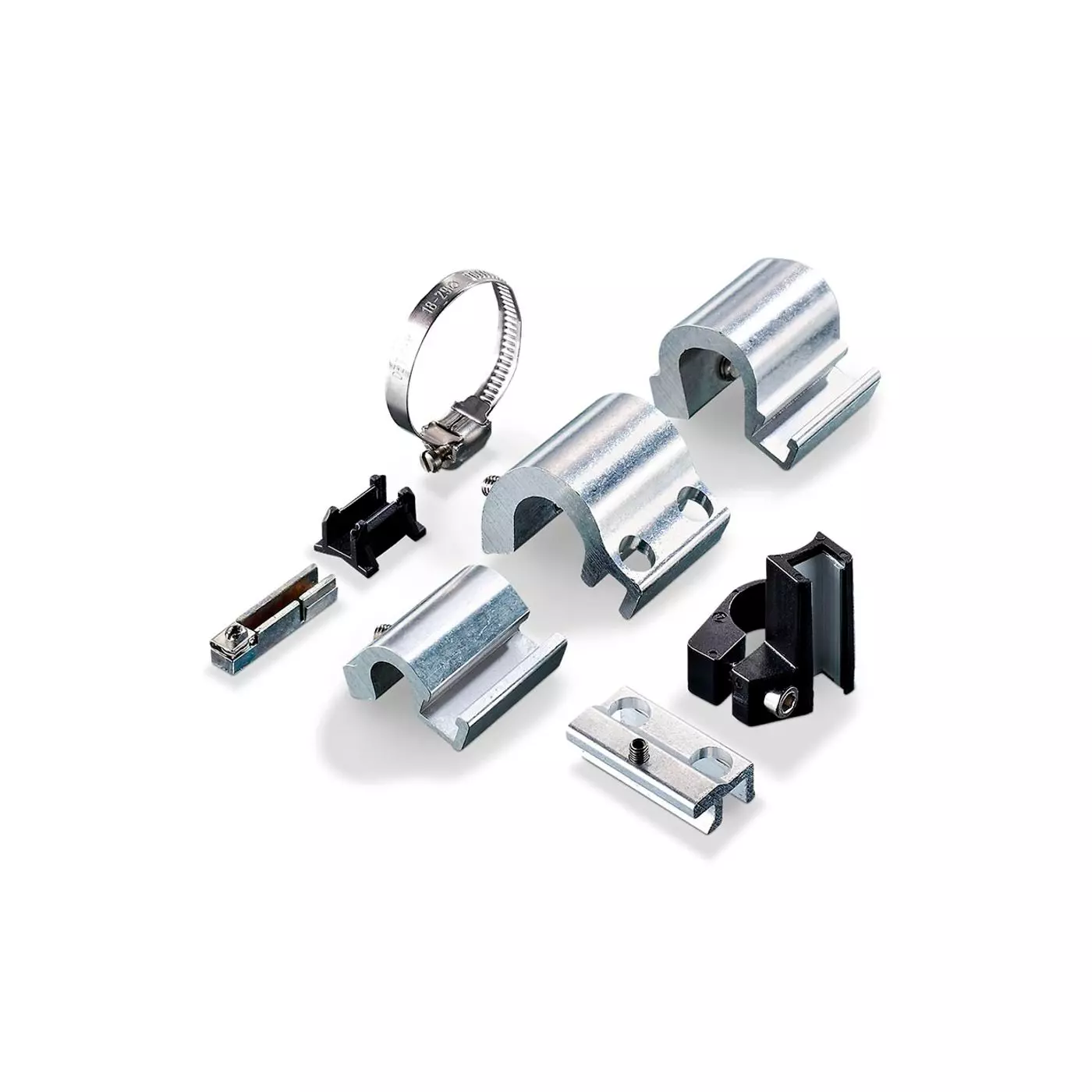

Special adapters are offered in order to make the advantages of the T-slot cylinder sensor also available for all other common cylinder types. Thanks to the adapter range, the sensor can be easily fixed to different cylinder profiles such as clean line, tie rod, integrated profile or trapezoidal slot cylinders.
The special adapter design facilitates set-up and protects the sensor against mechanical damage.
Features & Benefits
- A sensor for all common cylinder types
- Accessories for clean line, tie rod, T-slot, integrated profile and trapezoidal slot cylinders
- Low height due to a perfectly adapted mechanical solution
- Protected position of the sensor in the adapter
- Easy, quick and secure mounting
Additional Notes
| MPN | Product designation | Dimensions | Thread length | Inside diameter | Material |
|---|---|---|---|---|---|
| E11796 | Adapter for trapezoidal slot cylinders | Aluminum Alloy; set screw: stainless steel | |||
| E11797 | Adapter for Tie Rod / Integrated Profile Cylinders | 22.8 x 25 x 30.2 mm | aluminum; screw: stainless steel | ||
| E11798 | Memorization block for T-slot cylinders | 5 x 7.5 x 5.8 mm | PA; stainless steel | ||
| E11799 | Adapter for Tie Rod / Integrated Profile Cylinders | 25.9 x 25 x 34.2 mm | aluminum; screw: stainless steel | ||
| E11801 | Adapter for Tie Rod / Integrated Profile Cylinders | aluminum; screw: stainless steel | |||
| E11816 | Fixing strap for smooth body cylinders | Ø 8 mm | Adapter: PA; fixing strap: stainless steel (1.4305 / 303) | ||
| E11817 | Fixing strap for smooth body cylinders | Ø 16 mm | Adapter: PA; fixing strap: stainless steel (1.4305 / 303) | ||
| E11818 | Fixing strap for smooth body cylinders | Ø 25 mm | Adapter: PA; fixing strap: stainless steel (1.4305 / 303) | ||
| E11819 | Fixing strap for smooth body cylinders | Ø 40 mm | Adapter: PA; fixing strap: stainless steel (1.4305 / 303) | ||
| E11820 | Fixing strap for smooth body cylinders | Ø 50 mm | Adapter: PA; fixing strap: stainless steel (1.4305 / 303) | ||
| E11821 | Fixing strap for smooth body cylinders | Ø 63 mm | Adapter: PA; fixing strap: stainless steel (1.4305 / 303) | ||
| E11822 | Fixing strap for smooth body cylinders | Ø 80 mm | Adapter: PA; fixing strap: stainless steel (1.4305 / 303) | ||
| E11823 | Fixing strap for smooth body cylinders | Ø 100 mm | Adapter: PA; fixing strap: stainless steel (1.4305 / 303) | ||
| E11846 | Adapter for clean-line cylinders | 9 x 12 x 15 mm | PA | ||
| E11872 | Adapter | 6.3 x 25 x 7.5 mm | stainless steel | ||
| E11877 | Adapter for clean-line cylinders | 10.5 x 30.5 x 10 mm | stainless steel (1.4301 / 304) | ||
| E11890 | Adapter | 16.4 x 25 x 7 mm | aluminum; screw: stainless steel | ||
| E11891 | Adapter | 16.4 x 25 x 8.3 mm | aluminum; screw: stainless steel | ||
| E11892 | Adapter | 17 x 25 x 8.2 mm | aluminum; screw: stainless steel | ||
| E11893 | Adapter | 13.3 x 25 x 8.2 mm | aluminum; screw: stainless steel | ||
| E11894 | Adapter | 13.2 x 25 x 8 mm | aluminum; screw: stainless steel | ||
| E11895 | Adapter | 21 x 25 x 7.3 mm | aluminum; screw: stainless steel | ||
| E11912 | Adapter for tie rod cylinders (or cylinders of the same dimensions) | aluminum; screw: stainless steel | |||
| E11913 | Adapter for tie rod cylinders (or cylinders of the same dimensions) | aluminum; screw: stainless steel | |||
| E11914 | T-slot adapter for C-slot sensor | 6.4 x 23.3 x 5 mm | diecast zinc; fixing element: stainless steel | ||
| E11928 | T-slot adapter for C-slot sensor | 6.4 x 31.6 x 5 mm | diecast zinc; fixing element: stainless steel | ||
| E11957 | Adapter for trapezoidal slot cylinders | Aluminum Alloy; set screw: stainless steel | |||
| E11958 | Clip | POM; fixture: aluminum; screw: stainless steel | |||
| E11959 | Clip | POM; fixture: aluminum; screw: stainless steel | |||
| E11960 | Clip | POM; fixture: aluminum; screw: stainless steel | |||
| E11975 | Fixing strap for smooth body cylinders | Ø 10 mm | Adapter: stainless steel (1.4301 / 304); fixing strap: stainless steel (1.4305 / 303) | ||
| E11976 | Fixing strap for smooth body cylinders | Ø 20 mm | Adapter: stainless steel (1.4301 / 304); fixing strap: stainless steel (1.4305 / 303) | ||
| E11977 | Fixing strap for smooth body cylinders | Ø 32 mm | Adapter: stainless steel (1.4301 / 304); fixing strap: stainless steel (1.4305 / 303) | ||
| E11978 | Fixing strap for smooth body cylinders | Ø 40 mm | Adapter: stainless steel (1.4301 / 304); fixing strap: stainless steel (1.4305 / 303) | ||
| E11979 | Fixing strap for smooth body cylinders | Ø 50 mm | Adapter: stainless steel (1.4301 / 304); fixing strap: stainless steel (1.4305 / 303) | ||
| E11980 | Fixing strap for smooth body cylinders | Ø 63 mm | Adapter: stainless steel (1.4301 / 304); fixing strap: stainless steel (1.4305 / 303) | ||
| E11981 | Fixing strap for smooth body cylinders | Ø 80 mm | Adapter: stainless steel (1.4301 / 304); fixing strap: stainless steel (1.4305 / 303) | ||
| E11982 | Fixing strap for smooth body cylinders | Ø 100 mm | Adapter: stainless steel (1.4301 / 304); fixing strap: stainless steel (1.4305 / 303) | ||
| E11983 | Adapter | aluminum; screw: stainless steel | |||
| E11988 | Adapter for trapezoidal slot cylinders | Aluminum Alloy; set screw: stainless steel | |||
| E12004 | Memorization block for C-slot cylinders | 6.2 x 3.3 x 9 mm | PA; stainless steel | ||
| E12015 | Clip | POM; fixture: aluminum; screw: stainless steel | |||
| E12017 | Clip | POM; fixture: aluminum; screw: stainless steel | |||
| E12164 | Adapter | Adapter: aluminum anodized; screw: stainless steel | |||
| E12218 | Adapter | stainless steel | |||
| E12231 | Adapter for Tie Rod / Integrated Profile Cylinders | aluminum; screw: stainless steel | |||
| E12232 | Adapter for Tie Rod / Integrated Profile Cylinders | aluminum; screw: stainless steel | |||
| E12234 | Adapter for Tie Rod / Integrated Profile Cylinders | aluminum; screw: stainless steel | |||
| E12259 | Protective adapter for T-slot cylinder sensors | diecast zinc coated; screws: stainless steel |
