Electronic 24 V DC fuses with IO-Link

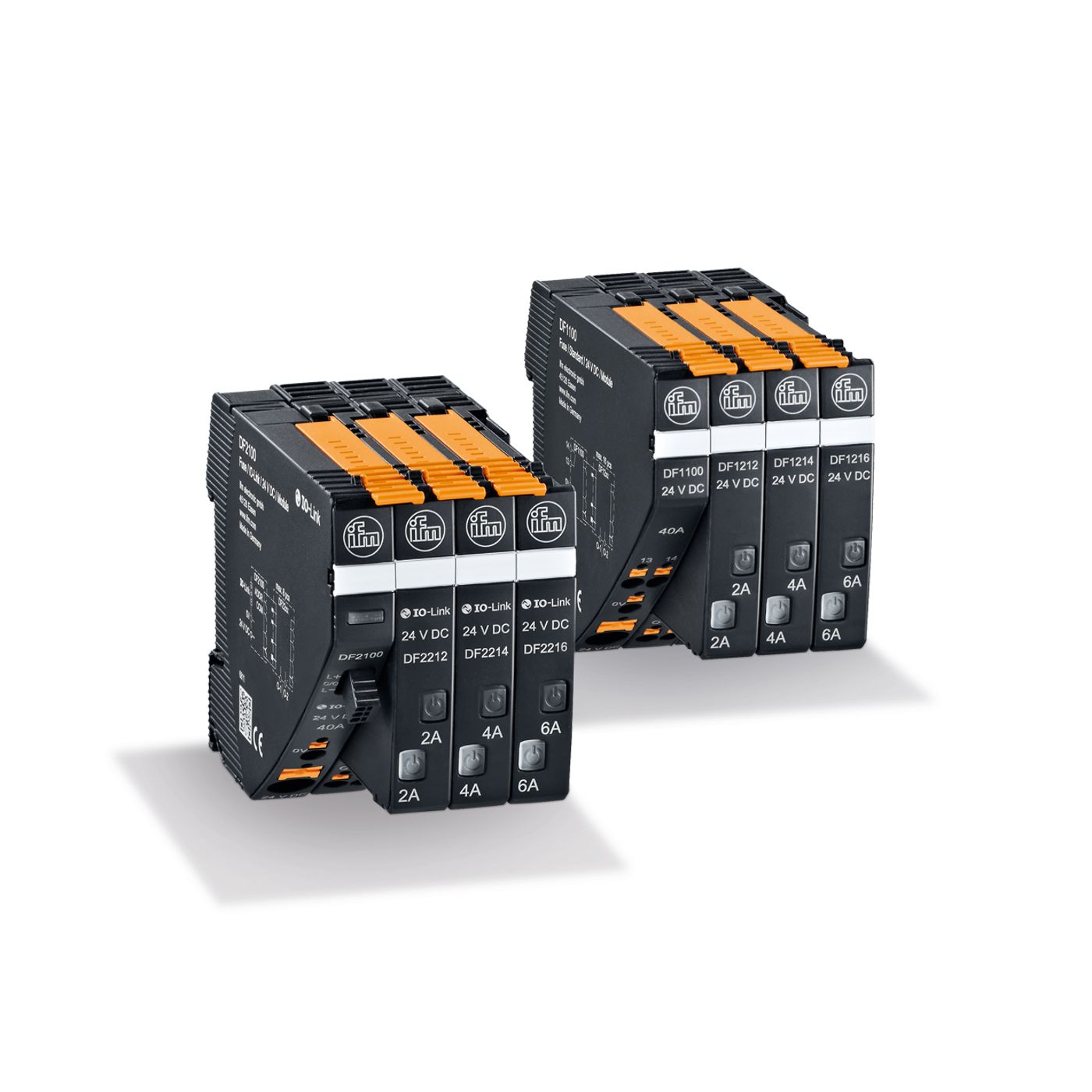

Electronic fuses permanently monitor the 24 V secondary circuit and reliably switch it off in the event of a failure. These electronic circuit breakers will also switch off circuits in cases where mechanical circuit breakers often do not trigger, e.g. in case of overload of a circuit with long cables. The system has a modular structure and consists of a feed module and side-by-side mountable fuse modules. By means of a pushbutton, each channel of a fuse module can be activated, deactivated or reset individually. The module can also be operated and configured via IO-Link. All data is directly transferred to the connected IO-Link master. The system also transmits diagnostic information, for example which module has triggered how often. It is also possible to switch on circuits separately for set-up or to restart the system remotely via IO-Link after a failure. The LINERECORDER SENSOR software is used to visualise, transfer and archive parameter sets.
MPN | Product designation | Input voltage DC | Nominal voltage DC | Number of channels | Nominal current |
---|---|---|---|---|---|
DF2101 | Supply module, IO-Link | 19.2...30 V | 24 V | ||
DF2208 | Circuit protection module, IO-Link | 18...30 V | 24 V | 1 | 8 A |
DF2210 | Circuit protection module, IO-Link | 18...30 V | 24 V | 1 | 10 A |
DF2212 | Circuit protection module, IO-Link | 19.2...30 V | 24 V | 2 | 2 A |
DF2214 | Circuit protection module, IO-Link | 19.2...30 V | 24 V | 2 | 4 A |
DF2216 | Circuit protection module, IO-Link | 19.2...30 V | 24 V | 2 | 6 A |
DF2220 | Circuit protection module, IO-Link | 19.2...30 V | 24 V | 2 | 1...10 A |
DF3100 | feeding module for ground potential | 24 V | |||
DF3110 | distribution module for ground potential | 24 V | |||
DF3200 | distribution module for supply voltage | 24 V |
SKU | Description | List price | - |
---|---|---|---|
IFM-100040010 | Power Supplies - Electronic circuit breakers - 24 V DC circuit breakers | $0.01 |
