Identification Systems - RFID 13.56 MHz (Medium range) - Compact RFID devices with fieldbus interface

RFID 13.56 MHz

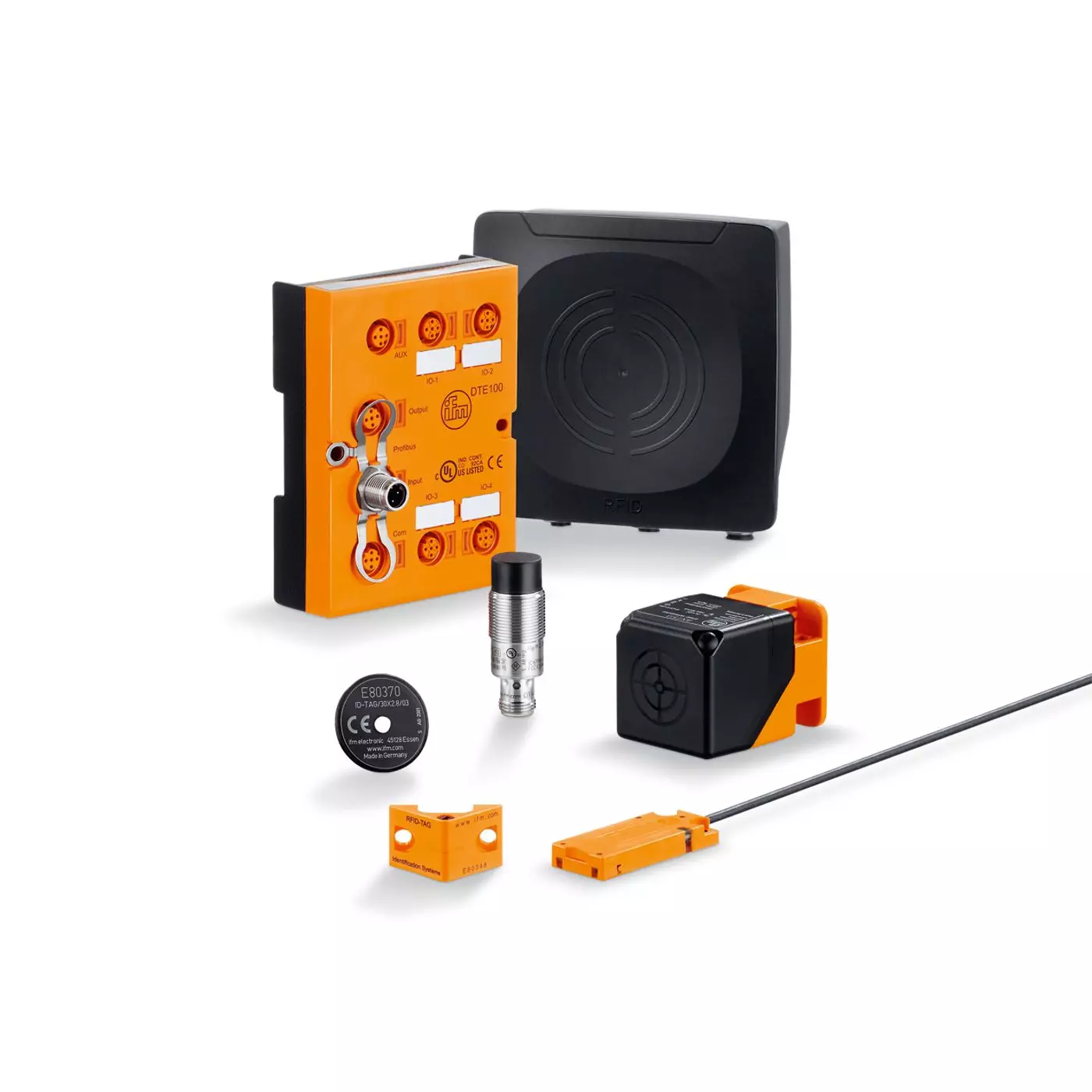

The RF identification system for 13.56 MHz enables non-contact reading from and/or writing to RFID transponders (ID tags). The data is converted into digitally coded values and provided to the AS-i evaluation unit without further programming. Applications are found in production lines, where the units are used for material flow control. The integrated web server lets you configure the RFID system in a web browser. Function blocks enable easy integration into the control level. The requirements of harsh industrial environments are met by a stable housing, a wide temperature range and a high protection rating. The evaluation unit transmits the data to the PLC via PROFIBUS DP, PROFINET, Ethernet IP, Ethernet TCP/IP or EtherCAT. The product range comprises antennas for detection zones of different sizes and a large variety of ID tags.

Key Features

• Industry standard RFID technology
  • ISO 15693 compliant
  • 13.56 MHz frequency

Technical Specifications

Connectivity & Integration

• Wide range of RFID evaluation unit interfaces
• Web server functionality
  • Device setup
  • System diagnosis
  • Real-time monitoring
• Support for multiple connections
  • RFID antennas
  • Sensors
  • Actuators up to 1 A

Applications

• Various RFID antenna implementations
• Multiple evaluation scenarios
• Diagnostic systems
• Monitoring solutions
