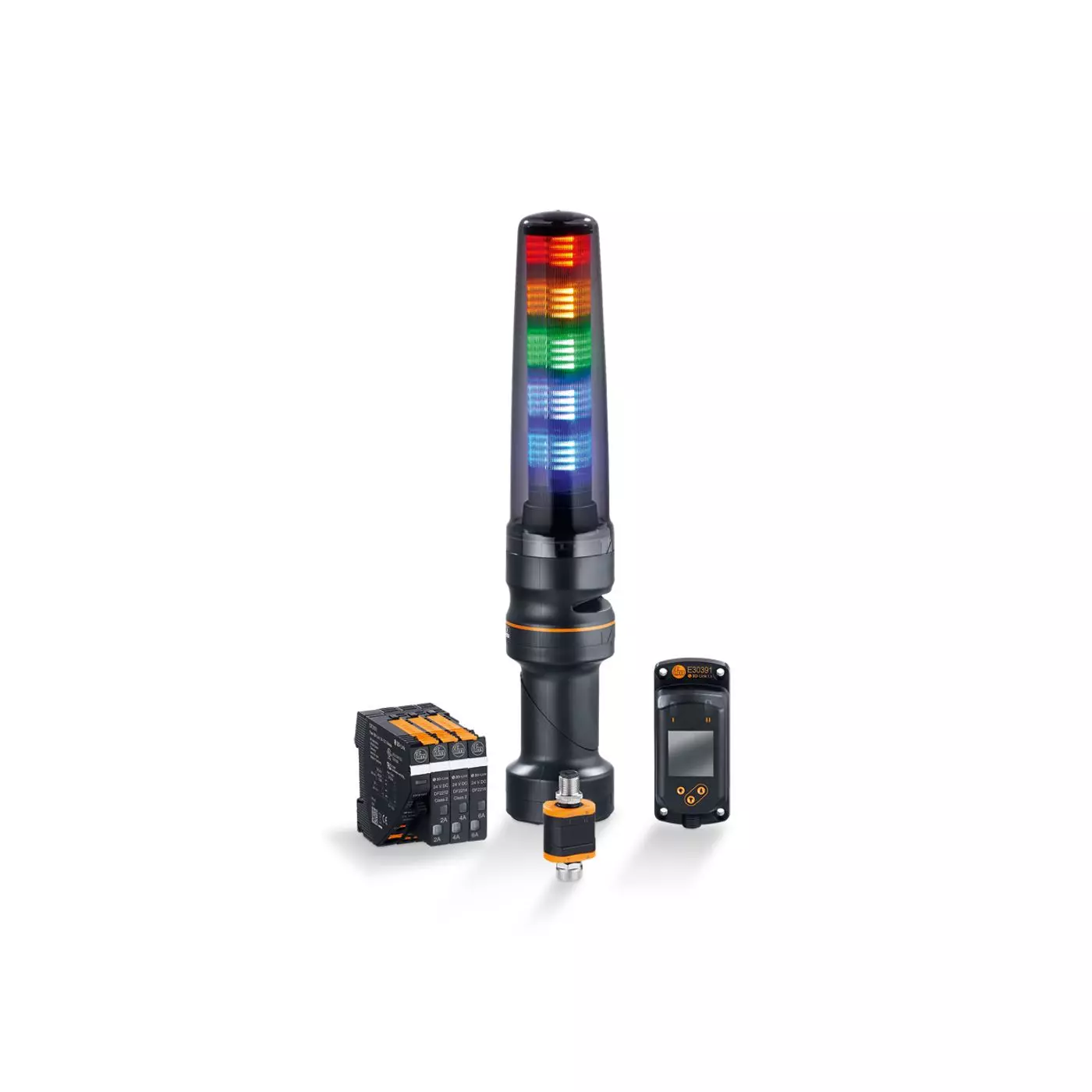

Stack lights
High performance Signal lamps, or stack lights, are used for status indication or as warning device everywhere in factories on machines, conveyors and installations. ifm’s innovative signal lamps offer several advantages over conventional signal lamps and are therefore suitable for demanding applications.
Flexible configuration In generalstack lights must be adapted to the application. Instead of spending time and effort on screwing modules of different colors together, the new LED RGB technology makes it possible to adjust the signal lamp as needed via IO-Link or setting button (e.g. permanently on, low flash rate, high flash rate, different colours, siren). This reduces type variety and stock-keeping.
*Perfect visibility
- Modern LED RGB technology, long life, reduced stock-keeping
- Different modes configurable via IO-Link or setting menu
- Also as standard version with digital inputs
- Quick and easy mounting
| MPN | Product designation | Display | Acoustic signal | Number of digital inputs | Protection |
|---|---|---|---|---|---|
| DV1500 | 5-segment signal lamp | status: 1 x LED green; LED segment: 5 x 4 LED | 6 | IP 65 | |
| DV1510 | 5-segment signal lamp | status: 1 x LED green; LED segment: 5 x 4 LED | buzzer | 6 | IP 54 |
| DV1520 | 5-segment signal lamp | status: 1 x LED green; LED segment: 5 x 4 LED | 6 | IP 65 | |
| DV1530 | 5-segment signal lamp | status: 1 x LED green; LED segment: 5 x 4 LED | buzzer | 6 | IP 54 |
| DV2120 | 1-segment signal lamp | LED segment red / green / yellow / blue / lilac / cyan / white | IP 67 | ||
| DV2121 | 1-segment signal lamp | LED segment red / green / yellow / blue / lilac / cyan / white | IP 67 | ||
| DV2130 | 1-segment signal lamp | LED segment red / green / yellow / blue / lilac / cyan / white | buzzer | IP 65 | |
| DV2131 | 1-segment signal lamp | LED segment red / green / yellow / blue / lilac / cyan / white | buzzer | IP 65 | |
| DV2500 | 5-segment signal lamp | LED segment: 5 x 4 LED | IP 65 | ||
| DV2510 | 5-segment signal lamp | LED segment: 5 x 4 LED | buzzer | IP 54 | |
| DV2520 | 5-segment signal lamp | LED segment: 5 x 4 LED | IP 65 | ||
| DV2530 | 5-segment signal lamp | LED segment: 5 x 4 LED | buzzer | IP 54 |
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-055030010 | IO-Link - IO-Link enabled auxiliary devices - IO-Link - Displays | $0.01 | |
| IFM-055030020 | IO-Link - IO-Link enabled auxiliary devices - IO-Link - Electronic 24 V DC circuit breakers | $0.01 | |
| IFM-055030030 | IO-Link - IO-Link enabled auxiliary devices - Mini displays and converters | $0.01 |
