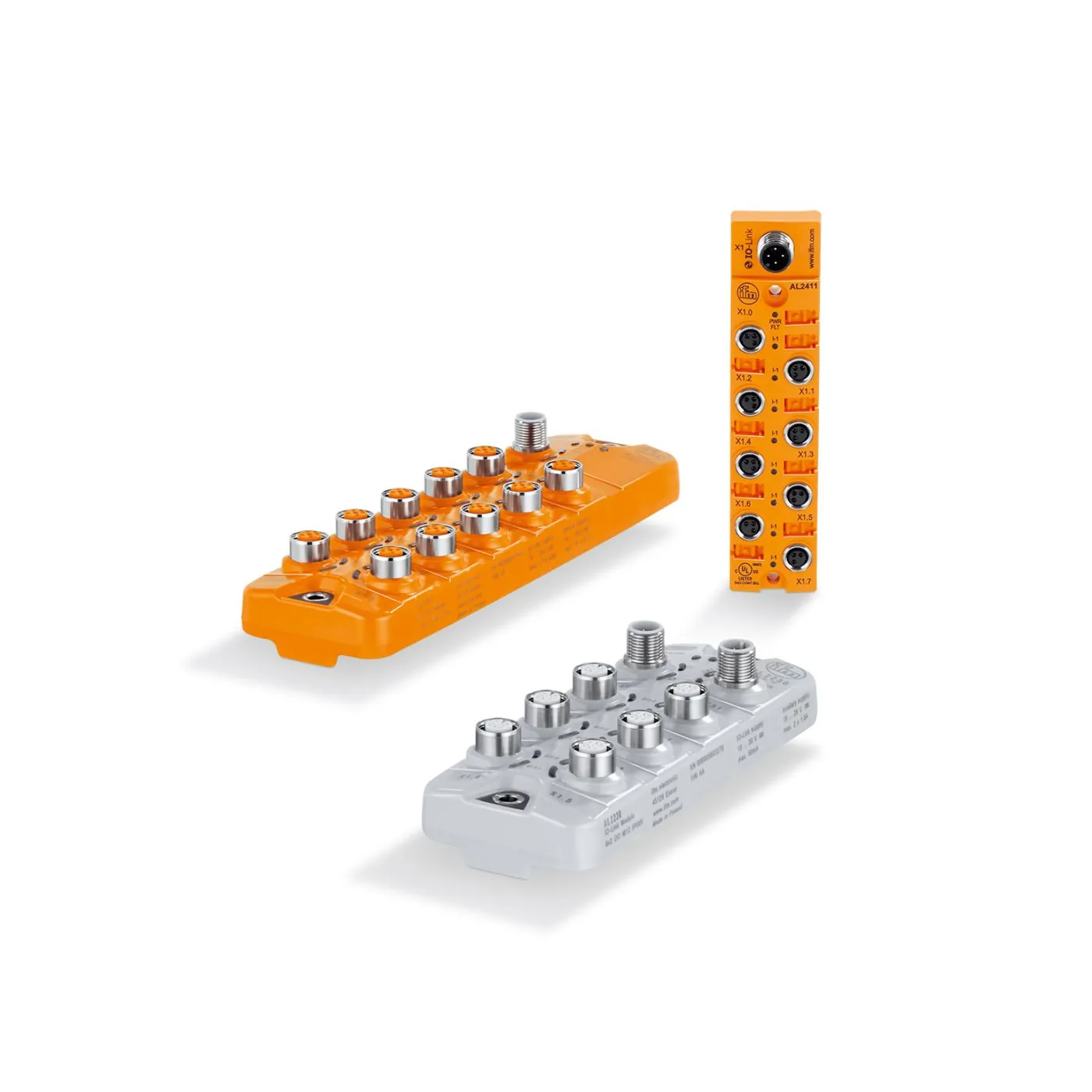

IO-Link - Modules
Depending on the device type, 8 or 16 binary sensors with switching output (e.g. inductive, photoelectric or pressure sensors) can be connected to the IO-Link field module. IO-Link transmits the signals to any desired IO-Link master via one unscreened M12 connection cable. This eliminates the need for complex cable trees or parallel wiring and reduces costs. IO-Link requires no configuration or addressing. This simplifies the set-up. It is possible to connect two sensors with one switching output each (using a Y splitter) or one sensor with two switching outputs to each of the module's sockets. The modules can be used in a wide temperature range. Excellent electromagnetic stability and a robust housing qualify for reliable use in harsh industrial environments.
- For the simple connection of binary sensors to any IO-Link master
- Uses industry standard M12 unshielded patchcords
- Clearly visible LEDs for displaying operation, switching status and error
- Robust design with full potting for use in harsh industrial environments
- Up to 8 ports with two binary inputs each
MPN | Product designation | Number of digital inputs | Number of analog inputs | Sensor supply of the inputs | Number of digital outputs |
---|---|---|---|---|---|
AL200S | PROFIsafe IO-Link module | ||||
AL2201 | IO-Link input/output module | 16 | 8 | US | 16 |
AL2203 | IO-Link input/output module | 16 | 8 | UA | 16 |
AL2205 | IO-Link input/output module | 16 | 8 | AUX (UA, UAi) | 16 |
AL2221 | IO-Link input/output module | 16 | US | 16 | |
AL2223 | IO-Link input/output module | 16 | UA | 16 | |
AL2225 | IO-Link input/output module | 16 | AUX (UA, UAi) | 16 | |
AL2230 | IO-Link output module | 12 | |||
AL2231 | IO-Link output module | 20 | |||
AL2240 | IO-Link input module | 12 | IO-Link | ||
AL2241 | IO-Link input module | 20 | IO-Link | ||
AL2301 | IO-Link input/output module | 16 | 8 | US | 16 |
AL2303 | IO-Link input/output module | 16 | 8 | UA | 16 |
AL2321 | IO-Link input/output module | 16 | US | 16 | |
AL2323 | IO-Link input/output module | 16 | UA | 16 | |
AL2325 | IO-Link input/output module | 16 | AUX (UA, UAi) | 16 | |
AL2330 | IO-Link output module | 12 | |||
AL2331 | IO-Link output module | 20 | |||
AL2340 | IO-Link input module | 12 | IO-Link | ||
AL2341 | IO-Link input module | 20 | IO-Link | ||
AL2400 | IO-Link input module | 8 | IO-Link | ||
AL2401 | IO-Link input module | 16 | IO-Link | ||
AL2605 | IO-Link input/output module | 16 | 8 | AUX (UA, UAi) | 16 |
SKU | Description | List price | - |
---|---|---|---|
IFM-055020020 | IO-Link - IO-Link hubs - Modules with M8 connectors | $0.01 |
