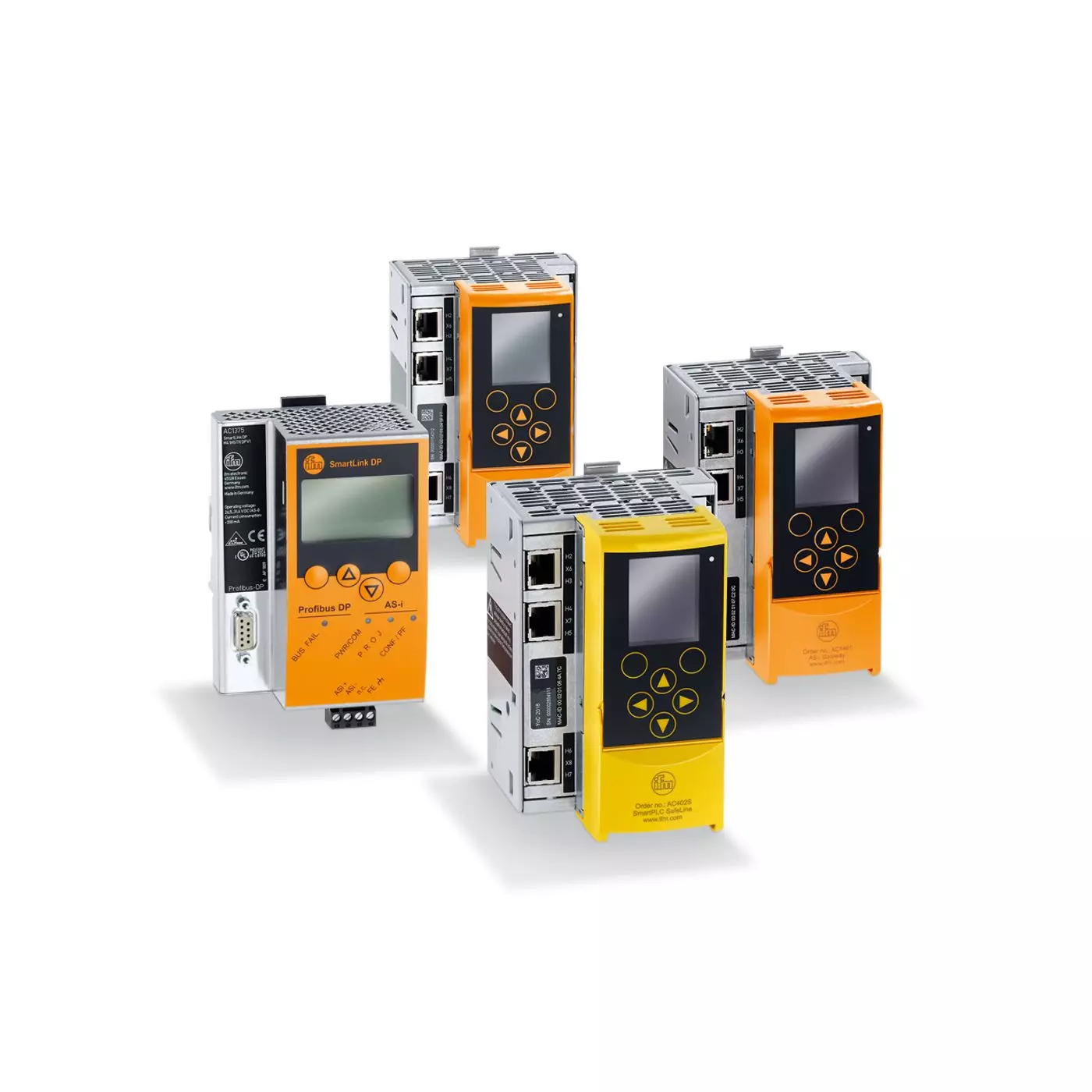

ControllerE/SmartPLC – ifm AS-i master family of the second generation
The devices with the designation "ControllerE" or "SmartLink" are the ifm AS-i master family of the second generation. The AS-Interface gateways ControllerE and SmartLink are primarily intended for use as gateways between up to two AS-Interface networks and fieldbuses. The range includes the device/slave interfaces PROFIBUS, DeviceNet, CANopen and Modbus TCP. With the AS-Interface gateways ControllerE and SmartLink, all advantages of the AS-Interface wiring system can be used with the previously mentioned fieldbuses. To the programmer of the higher-level PLC, the ControllerE and SmartLink devices are normal, decentralised input/output modules.
As an option, some of the devices can also be programmed via the CODESYS V2.3 software.
- Easiest wiring of inputs/outputs by means of AS-i perfectly complements all fieldbuses
- AS-Interface gateways, partly with PLC functionality
- Monochrome LCD display for user-friendly configuration and diagnostics
- Quick and easy set-up
| MPN | Product designation | Number of AS-i masters | AS-i profile | Communication interface | PLC function to IEC 61131-3 |
|---|---|---|---|---|---|
| AC1365 | AS-i PROFIBUS DP ControllerE | 1 | M4 | RS232, PROFIBUS, Profibus DP | |
| AC1366 | AS-i PROFIBUS DP ControllerE | 2 | M4 | RS232, PROFIBUS, Profibus DP | |
| AC1375 | SmartLink DP | 1 | M4 | PROFIBUS, Profibus DP | |
| AC1376 | AS-i PROFIBUS DP gateway | 2 | M4 | PROFIBUS, Profibus DP | |
| AC1391 | AS-i EtherCAT / controller E | 1 | M4 | RS232, EtherCAT | |
| AC1392 | AS-i EtherCAT / controller E | 2 | M4 | RS232, EtherCAT |
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-050010010 | Industrial Communication - Actuator-Sensor Interface gateways - SmartPLC AS-i gateways | $0.01 | |
| IFM-050010020 | Industrial Communication - Actuator-Sensor Interface gateways - SmartPLC AS-i gateways with PLC | $0.01 | |
| IFM-050010030 | Industrial Communication - Actuator-Sensor Interface gateways - SmartPLC AS-i gateways with fail-safe PLC | $0.01 | |
| IFM-050010050 | Industrial Communication - Actuator-Sensor Interface gateways - ControllerE AS-i gateways with PLC | $0.01 |
