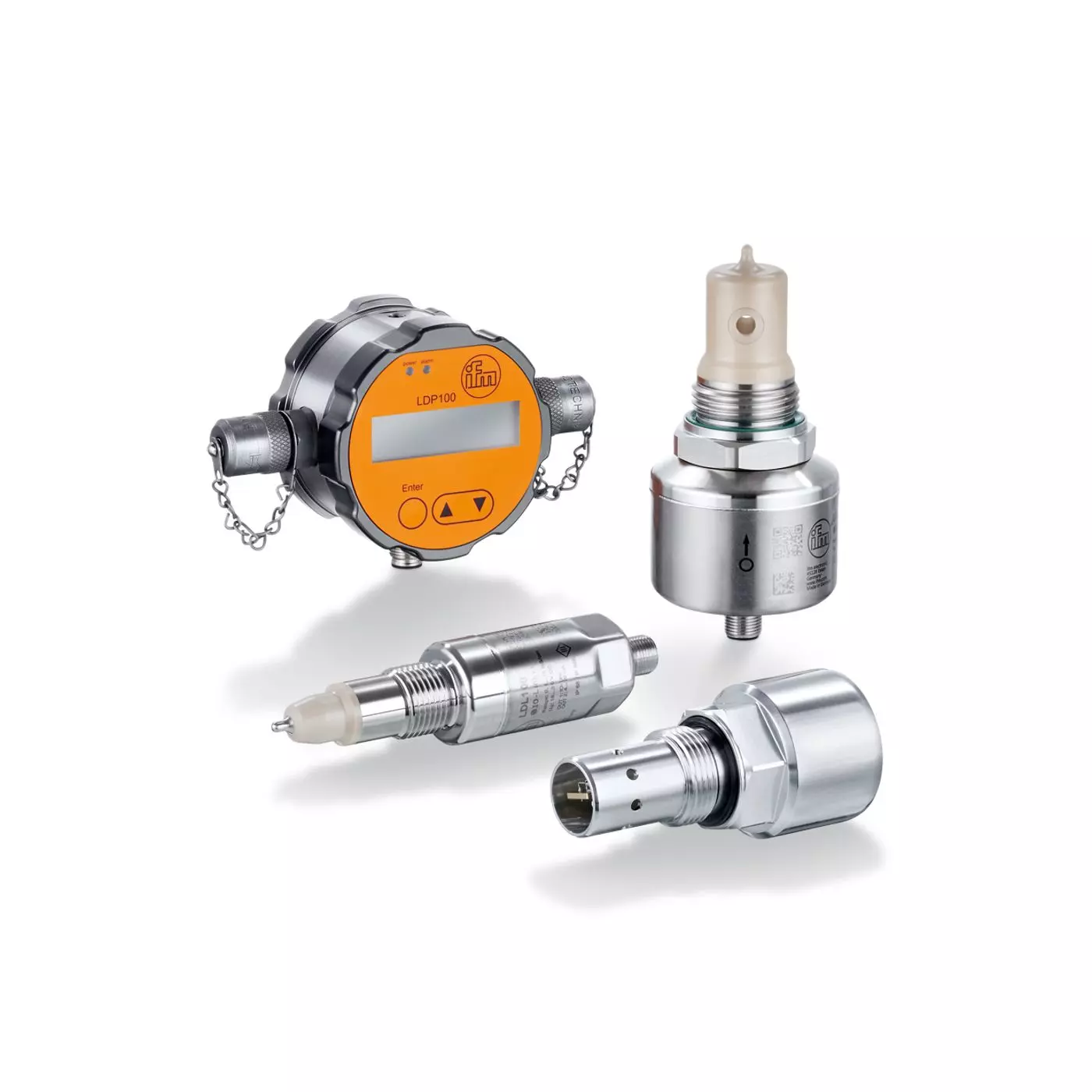

Particle monitor for oil condition monitoring
LDP monitors the degree of cleanliness - or the level of contamination - in oils, hydraulic oils and coolants. The integrated data memory allows data recording over a longer period. The LCD display indicates the cleanliness level to ISO 4406:99 or SAE AS4059E as a range number. The device has a CANopen interface. The measured value is also provided via an analogue output. In addition, a switching output is available which can be used as an alarm output. The monitor is equipped with two Minimess connections to install it in the off-line circuit of the oil cycle. The electrical connection is conveniently established via an M12 connector. Thanks to its robust housing and high protection rating, the device can be used in extremely harsh industrial environments.
- Trend monitoring by analysis of the particle concentration
- Indication of purity class on the LCD display
- Applications up to 420 bar
- Intuitive, user-friendly handling
- CAN bus, analog and switching outputs
| MPN | Product designation | Ambient temperature | Approval | Protection |
|---|---|---|---|---|
| LDP100 | Photoelectric particle monitor | -10...60 °C | CE | IP 67 |
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-040080010 | Process Sensors - Analytical - Conductivity | $0.01 | |
| IFM-040080030 | Process Sensors - Analytical - Moisture measurement in oil | $0.01 | |
| IFM-040080040 | Process Sensors - Analytical - Moisture measurement in air | $0.01 |
