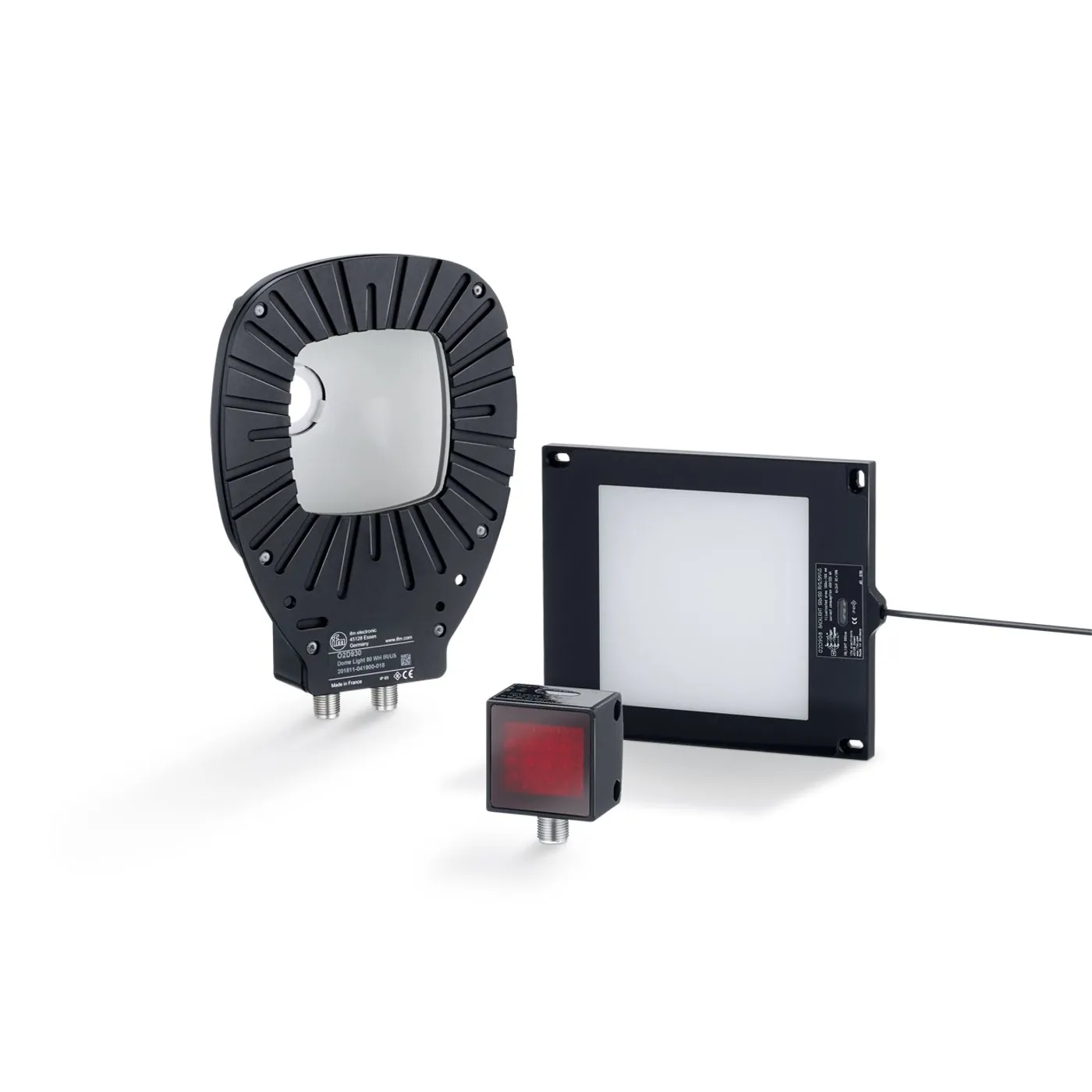

Vision Sensors - Illumination - Lights for vision systems

Name: Vision Sensors - Illumination - Lights for vision systems
Brand: ifm
SKU: IFM-020040010
Availability: InStock

IFM | ifm

020 | Vision Sensors

Vision Sensors - Illumination

IFM-020040010

Description

IFM's 020.040.010 group of Vision Sensors - Illumination units

Base Model

Collection

020 | Vision Sensors

Group

040 | Illumination

Options

010

Additional Options

_ | N/A

Available to Order

Ships from PA

Typically ships within [ 2 ] days

24/7 Sales & Support 484-544-0506

Quantity:

− +

Get a Quote

Overview

Features & Benefits

Backlights for contour and position verification and object recognition
Permanent light or pulse operation
White light, red light and infrared versions
Compact and robust housing
Homogeneous and virtually shadow-free illumination of the object

Additional Notes

MPN	Product designation	Design	Dimensions	Illuminated field	Operating voltage DC
O2D900	Illumination unit	backlight	66.5 x 33.4 x 9.2 mm	25 x 25 mm	24 V
O2D901	Illumination unit	backlight	66.5 x 33.4 x 9.2 mm	25 x 25 mm	24 V
O2D902	Illumination unit	backlight	103 x 81 x 9.2 mm	50 x 50 mm	24 V
O2D903	Illumination unit	backlight	103 x 81 x 9.2 mm	50 x 50 mm	24 V
O2D904	Illumination unit	backlight	156 x 133 x 9.2 mm	100 x 100 mm	24 V
O2D905	Illumination unit	backlight	161.2 x 9.8 x 133 mm	100 x 100 mm	24 V
O2D907	Illumination unit	backlight	103 x 81 x 9.2 mm	50 x 50 mm	24 V
O2D908	Illumination unit	backlight	156 x 133 x 9.2 mm	100 x 100 mm	24 V
O2D915	Illumination unit	ring	Ø 122 / L = 20.5 mm	Ø 106 / Ø 66 mm	24 V
O2D917	Illumination unit	ring	Ø 122 / L = 20.5 mm	Ø 106 / Ø 66 mm	24 V
O2D919	Illumination unit	ring	Ø 122 / L = 20.5 mm	Ø 106 / Ø 66 mm	24 V
O2D920	Illumination unit	dark field	155 x 130 x 9.8 mm	Ø 90 mm	24 V
O2D921	Illumination unit	bar	116 x 13 x 18 mm	10 x 75 mm	24 V
O2D922	Illumination unit	bar	116 x 13 x 18 mm	10 x 75 mm	24 V
O2D923	Illumination unit	bar	116 x 13 x 18 mm	10 x 75 mm	24 V
O2D924	Illumination unit	bar	200 x 13 x 18 mm	10 x 150 mm	24 V
O2D925	Illumination unit	bar	200 x 13 x 18 mm	10 x 150 mm	24 V
O2D926	Illumination unit	bar	200 x 13 x 18 mm	10 x 150 mm	24 V
O2D930	Illumination unit	Dome	193 x 136 x 75 mm	80 x 80 mm	24 V
O2D931	Illumination unit	Dome	193 x 136 x 75 mm	80 x 80 mm	24 V
O2D932	Illumination unit	Dome	256.8 x 197 x 106.8 mm	130 x 130 mm	24 V
O2D933	Illumination unit	Dome	256.8 x 197 x 106.7 mm	130 x 130 mm	24 V
O2D940	Illumination unit	backlight	70.5 x 33.4 x 9.5 mm	25 x 25 mm	24 V
O2D941	Illumination unit	backlight	70.5 x 33.4 x 9.5 mm	25 x 25 mm	24 V
O2D942	Illumination unit	backlight	105 x 81 x 9.8 mm	50 x 50 mm	24 V
O2D943	Illumination unit	backlight	105 x 81 x 9.8 mm	50 x 50 mm	24 V
O2D944	Illumination unit	backlight	155 x 133 x 9.8 mm	100 x 100 mm	24 V
O2D945	Illumination unit	backlight	155 x 133 x 9.8 mm	100 x 100 mm	24 V
