Headline

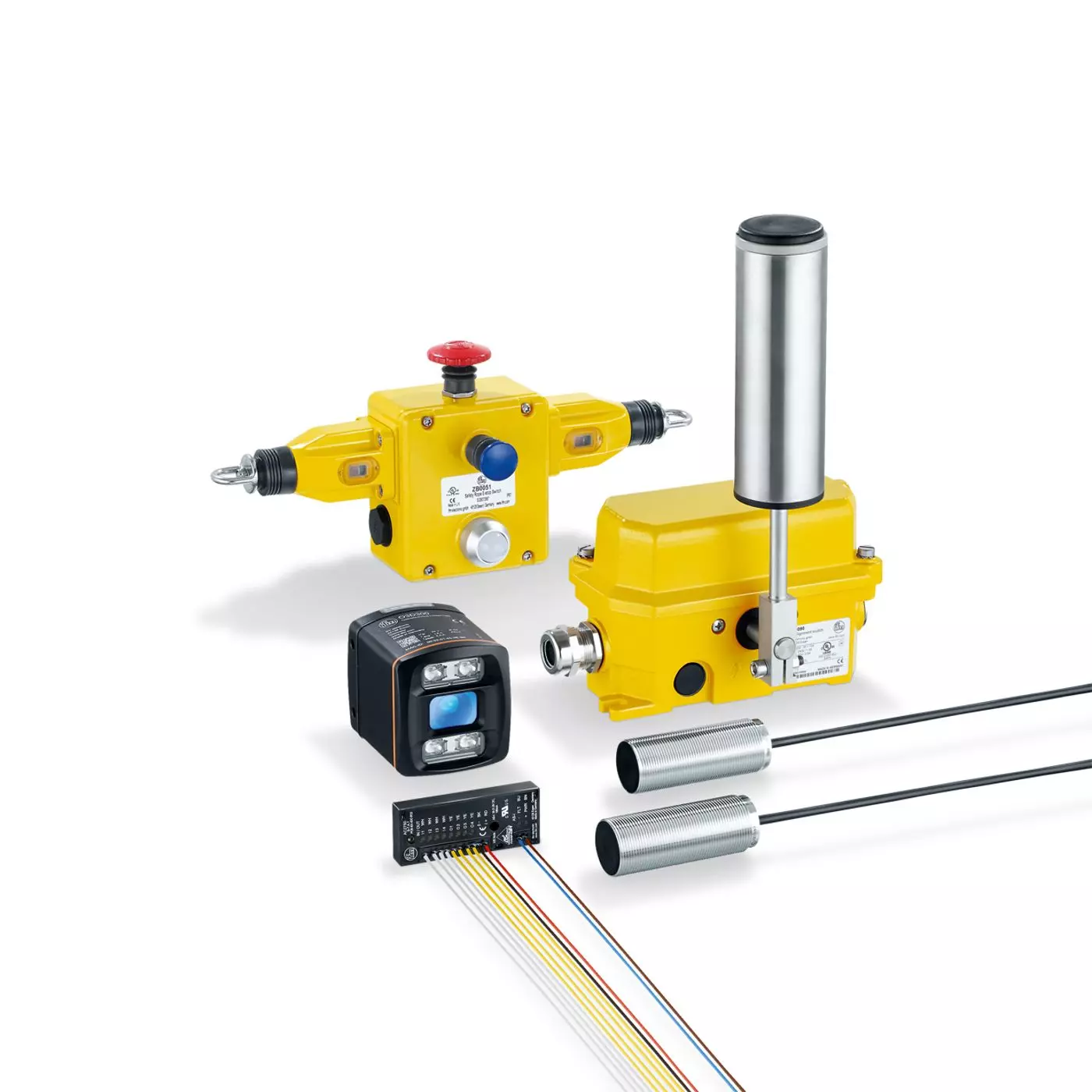

Sensors for conveyor belt monitoring – Compact speed monitor
In many industrial applications drives need to be monitored for rotational speed or standstill. In the automotive, food and beverage, steel and mining industries, speed sensors are used to safely detect standstill, overspeed and underspeed of drives or belt break on conveyors.
The compact speed monitors of the DI series integrate rotational speed detection and monitoring in one unit. The sensor head operates using inductive sensing principles. The sensor detects metal actuating surfaces on rotating machine parts, e.g. on toothed wheels or camshafts. The integrated evaluation converts this information into rotational speed. The target speed is set easily via potentiometer or pushbutton on the unit.
Features & Benefits
- Reliable non-contact monitoring of the rotational speed with regard to underspeed
- 2 in 1: speed sensor and evaluation in one compact housing
- Easy setting of the switch point via potentiometer
- For direct connection to a PLC
- Reduced installation complexity
Additional Notes
MPN | Product designation | Operating voltage DC | Electrical design | Protection | Output function |
---|---|---|---|---|---|
DI0101 | Speed monitor | IP 65, IP 67 | normally open | ||
DI0104 | Speed monitor | IP 65, IP 67 | normally open | ||
DI103A | Speed monitor | IP 65, IP 67 | normally open | ||
DI5004 | Speed monitor | PNP | IP 67 | normally open | |
DI5007 | Speed monitor | PNP | IP 67 | normally open | |
DI506A | Speed monitor | PNP | IP 67 | normally open | |
DI6001 | Speed monitor | PNP | IP 67 | normally open / closed; (configurable) | |
DI602A | Speed monitor | PNP | IP 67 | normally open / closed; (configurable) |
Alternate configurations
SKU | Description | List price | - |
---|---|---|---|
IFM-015080020 | Motion Control Sensors - Conveyor monitoring - Safety rope emergency stop switches | $0.01 | |
IFM-015080030 | Motion Control Sensors - Conveyor monitoring - PCB solutions | $0.01 | |
IFM-015080050 | Motion Control Sensors - Conveyor monitoring - Compact speed monitors for use in hazardous areas | $0.01 | |
IFM-015080060 | Motion Control Sensors - Conveyor monitoring - 3D sensors | $0.01 |
