Headline

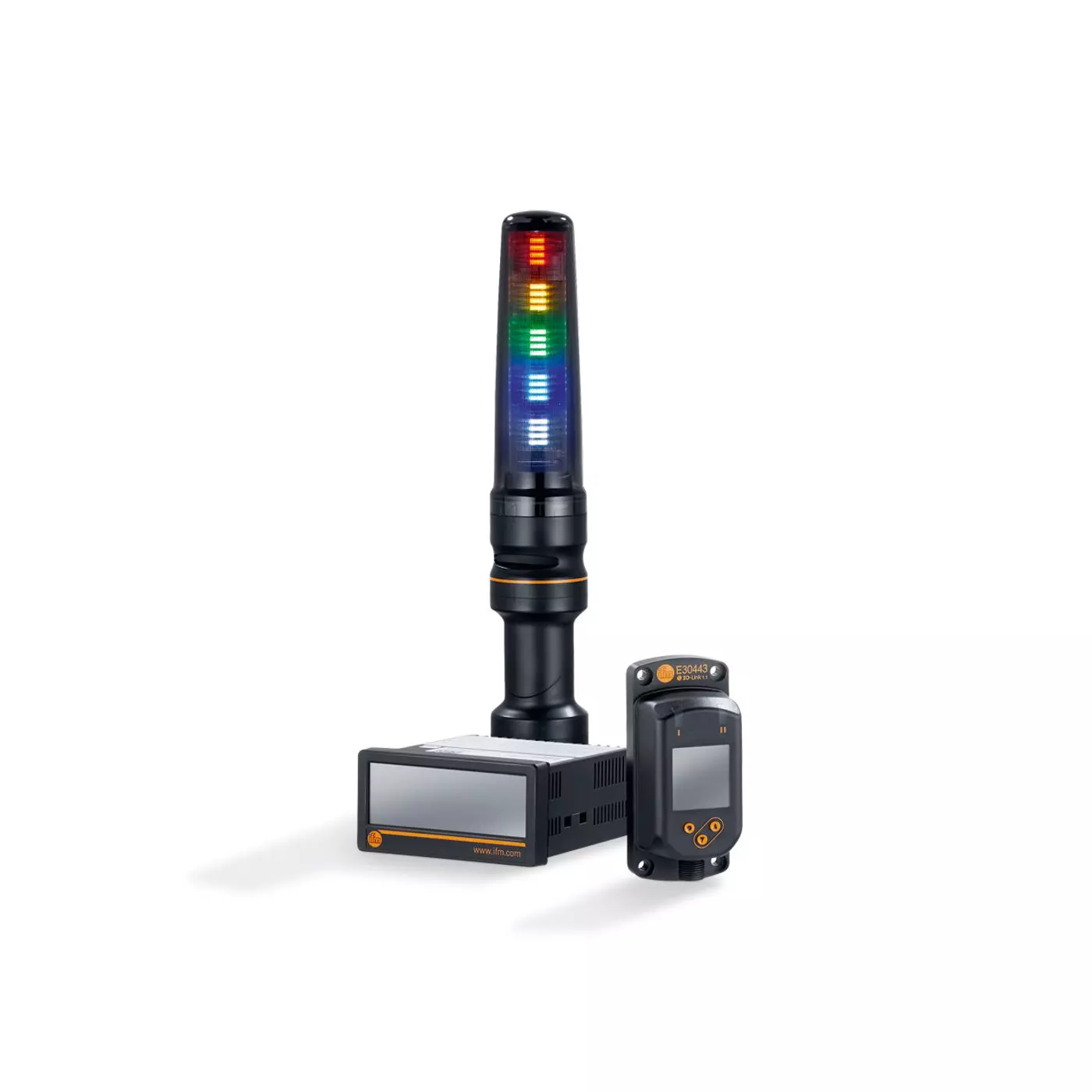

Stack lights
High performance Signal lamps, or stack lights, are used for status indication or as warning device everywhere in factories on machines, conveyors and installations. ifm’s innovative signal lamps offer several advantages over conventional signal lamps and are therefore suitable for demanding applications.
Flexible configuration In generalstack lights must be adapted to the application. Instead of spending time and effort on screwing modules of different colors together, the new LED RGB technology makes it possible to adjust the signal lamp as needed via IO-Link or setting button (e.g. permanently on, low flash rate, high flash rate, different colours, siren). This reduces type variety and stock-keeping.
Features & Benefits
- Quick and easy mounting
- Modern LED RGB technology, long life, reduced stock-keeping
- Different modes configurable via IO-Link or setting menu
- Also as standard version with digital inputs
- Quick and easy mounting
Additional Notes
| MPN | Display | Acoustic signal | Number of digital inputs | Communication interface | Protection |
|---|---|---|---|---|---|
| DV1000 | signaling machine conditions: LED multi-color RGB; illumination of installations: LED white | IP 68 | |||
| DV1001 | signaling machine conditions: LED multi-color RGB; illumination of installations: LED white | IP 68 | |||
| DV1002 | signaling machine conditions: LED multi-color RGB; illumination of installations: LED white | IP 68 | |||
| DV1003 | signaling machine conditions: LED multi-color RGB; illumination of installations: LED white | IP 68 | |||
| DV1004 | signaling machine conditions: LED multi-color RGB; illumination of installations: LED white | IP 68 | |||
| DV1500 | status: 1 x LED green; LED segment: 5 x 4 LED | 6 | IO-Link | IP 65 | |
| DV1510 | status: 1 x LED green; LED segment: 5 x 4 LED | buzzer | 6 | IO-Link | IP 54 |
| DV1520 | status: 1 x LED green; LED segment: 5 x 4 LED | 6 | IO-Link | IP 65 | |
| DV1530 | status: 1 x LED green; LED segment: 5 x 4 LED | buzzer | 6 | IO-Link | IP 54 |
| DV2120 | LED segment red / green / yellow / blue / lilac / cyan / white | IO-Link | IP 67 | ||
| DV2121 | LED segment red / green / yellow / blue / lilac / cyan / white | IO-Link | IP 67 | ||
| DV2130 | LED segment red / green / yellow / blue / lilac / cyan / white | buzzer | IO-Link | IP 65 | |
| DV2131 | LED segment red / green / yellow / blue / lilac / cyan / white | buzzer | IO-Link | IP 65 | |
| DV2500 | LED segment: 5 x 4 LED | IO-Link | IP 65 | ||
| DV2510 | LED segment: 5 x 4 LED | buzzer | IO-Link | IP 54 | |
| DV2520 | LED segment: 5 x 4 LED | IO-Link | IP 65 | ||
| DV2530 | LED segment: 5 x 4 LED | buzzer | IO-Link | IP 54 |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-015060010 | Motion Control Sensors - Signaling and display systems - Displays for process value display | $0.01 | |
| IFM-015060020 | Motion Control Sensors - Signaling and display systems - Displays with monitoring function | $0.01 | |
| IFM-015060030 | Motion Control Sensors - Signaling and display systems - Displays for monitoring pulse signals | $0.01 | |
| IFM-015060035 | Motion Control Sensors - Signaling and display systems - Mini displays to monitor values | $0.01 | |
| IFM-015060050 | Motion Control Sensors - Signaling and display systems - IO-Link - Displays for signaling and indication | $0.01 |
