Headline

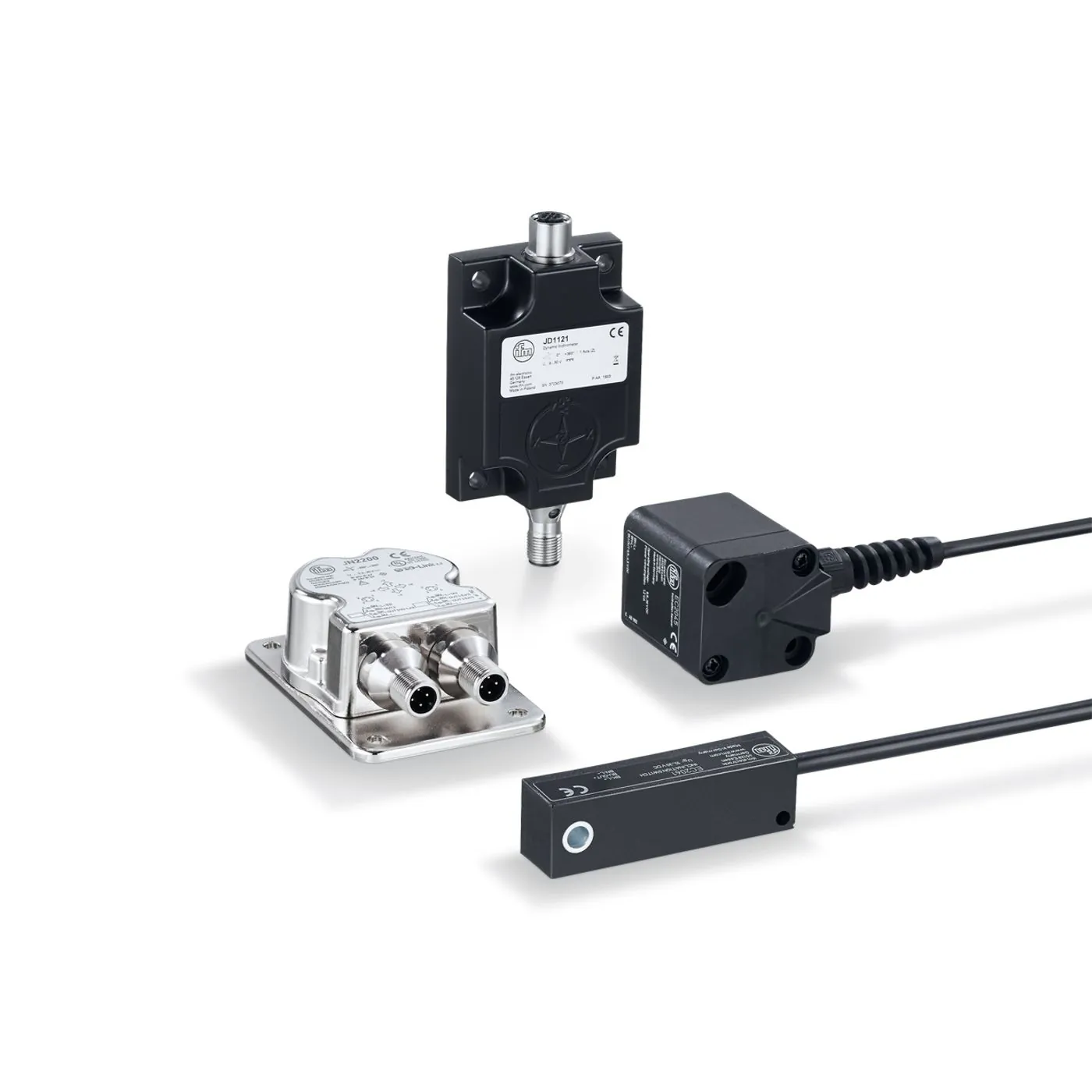

Static inclination sensors
Often the horizontal alignment of machines or machine parts is an important requirement for reliable operation. Inclination sensors based on the static measurement principle are designed for angular position detection or levelling of stationary mobile machinery. They are commonly used for position detection on working platforms or levelling of mobile cranes or excavators. Industrial applications include solar panel tracking systems.
Features & Benefits
- Precise measurement in 1 or 2 axes (X/Y)
- High measurement accuracy across the whole angular range up to 360°
- Zero point, counting direction and limit frequency adjustable
- Compact and robust housing
- Different interfaces selectable
Additional Notes
| MPN | Analog output | Communication interface | Protocol | Angular range | Accuracy |
|---|---|---|---|---|---|
| EC2019 | 0...10 V | ± 90 | 0,1 | ||
| EC2045 | 0.5...4.5 V | ± 90 | 0,1 | ||
| EC2060 | 4...20 mA | ± 20 | 0,1 | ||
| EC2061 | 2,2…5,5 | 0,2 | |||
| EC2082 | 4...20 mA | ± 90 | 0,1 | ||
| JN2100 | CAN | CANopen CiA DS 301 | 0…360 / ± 180 | ≤ ± 0,5; (absolute) | |
| JN2101 | CAN | CANopen CiA DS 301 | -45…45 | ≤ ± 0,01; (absolute) | |
| JN2200 | 4...20 mA / 2...10 V | IO-Link | ± 180 | ≤ ± 0,5; (absolute) | |
| JN2201 | 4...20 mA / 2...10 V | IO-Link | ± 45 | ≤ ± 0,01; (absolute) | |
| JN2300 | CAN | SAE J1939 | 0…360 / ± 180 | ≤ ± 0,5; (absolute) |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-015030025 | Motion Control Sensors - Inclination sensors - Dynamic inclination sensors | $0.01 |
