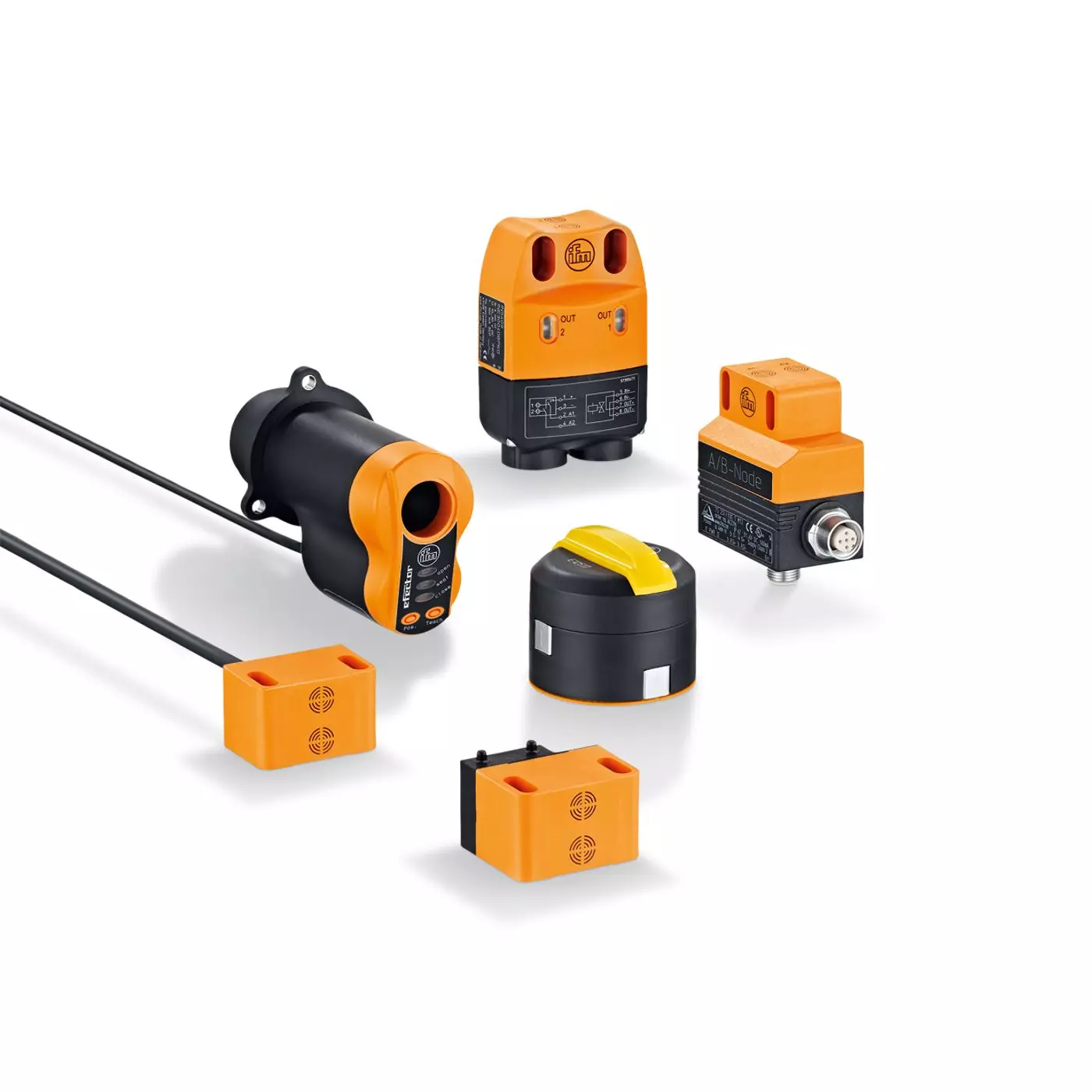

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Pucks for valve actuators
A round target (also known as a 'puck') is used for reliable position feedback on pneumatic quarter-turn actuators or valves. The puck is mounted directly on the actuator shaft. It is equipped with two metal screws that are mounted at different heights and offset by 90°. A dual inductive sensor with two integral sensors detects the upper or the lower metal screw and, thus, the "open" or "closed" position of the valve. The system operates without contact or wear and is self-cleaning. It is virtually resistant to external influence and insensitive to mechanical stress such as vibration and shock.
Features & Benefits
- Easy mounting directly on the shaft of the actuator
- Various diameters and heights for application flexibility
- Versions with inverted function
- Housing colors in red, black, and blue
- High shock and vibration resistance
Additional Notes
| MPN | Product designation | Material |
|---|---|---|
| E10661 | Target puck | Target puck: PVC; screws: stainless steel |
| E11243 | Mounting kit for limit position feedback | |
| E12516 | Target puck | Target puck: PA 6 black; metal parts: stainless steel |
| E12517 | Target puck | Target puck: PA 6 black; metal parts: stainless steel |
| E12724 | Target puck | Target puck: PA 6 black; metal parts: stainless steel; Position indicator: PA 6 yellow |
| E12725 | Target puck | Target puck: PA 6 black; metal parts: stainless steel; Position indicator: PA 6 yellow |
| E12726 | Position indicator | PA 6 yellow |
| E17002 | Target puck | Target puck: PVC; Pointer: PVC; screws: stainless steel (1.4404 / 316L); washers: stainless steel (1.4404 / 316L); set screw: stainless steel (1.4305 / 303); locking pin: stainless steel (1.4301 / 304) |
| E17110 | Target puck | Target puck: PVC; screws: stainless steel |
| E17118 | Target puck | Target puck: PBT; screws: stainless steel |
| E17119 | Target puck | Target puck: PVC; screws: stainless steel (1.4571/316Ti ) |
| E17148 | Target puck | Target puck: PVC; screws: stainless steel |
| E17320 | Target puck | Target puck: PA 6 black; screws: stainless steel (1.4302) |
| E17322 | Target puck | Target puck: PA 6 blue; screws: stainless steel (1.4302) |
| E17323 | Target puck | Target puck: PA 6; screws: stainless steel (1.4302) |
| E17324 | Target puck | Target puck: PA 6; screws: stainless steel (1.4302) |
| E17326 | Target puck | Target puck: PA 6; screws: stainless steel (1.4302) |
| E17327 | Target puck | Target puck: PA 6; screws: stainless steel (1.4302) |
| E17328 | Target puck | Target puck: PA 6; screws: stainless steel (1.4302) |
| UV0019 | Target puck | Target puck: PA 6 black; metal parts: stainless steel |
| UV0020 | Target puck | Target puck: PA 6 black; metal parts: stainless steel; spacers: PA 6 black |
| UV0021 | Target puck | Target puck: PA 6 black; metal parts: stainless steel |
| UV0022 | Target puck | Target puck: PA 6 black; metal parts: stainless steel; spacers: PA 6 black |
