Headline

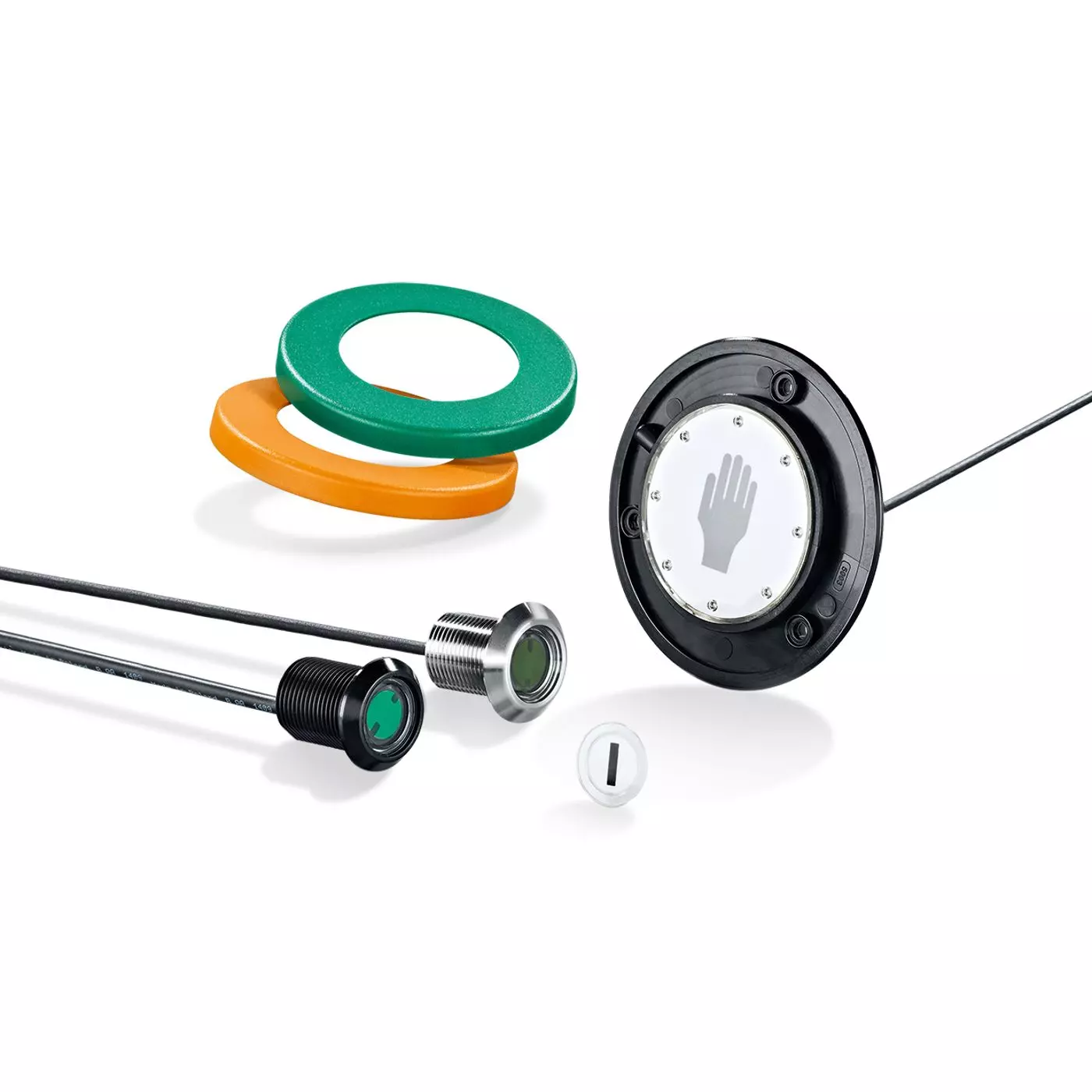

Versatile sensor for all applications
The multi-colour touch sensors from ifm allow flexible adaptation to your application. Where many different sensors were required before, one individually adjustable sensor is sufficient today. The NO/NC function or the colours for different operating states can be set within seconds. In addition, dynamic, static or bistable switching of the sensor can be selected. The adjustable sensitivity allows use in very wet environments or actuation with gloves. The implemented delay time prevents unintentional switching of a sensor. All settings remain stored even if the sensor is used without IO-Link. The sensor also counts the switching cycles for demand-oriented maintenance of the machine.
Features & Benefits
- Ergonomic working by softly touching the sensor
- Start-up delay prevents unintentional switching
- Plant condition indicated via RGB LEDs
- Various setting options such as color, NO/NC or triggering via IO-Link
- Adjustable brightness and sensitivity in wet environments or when operators wear gloves
Additional Notes
MPN | Principle of operation | Output function | Output | Display | Connection |
---|---|---|---|---|---|
KT5102 | dynamic | normally open | DC PNP | Switching status: 1 x LED red; Power: 1 x LED green | 0.3 m PUR-Cable; M12 Connector |
KT6100 | dynamic; (static; Bistable configurable) | normally open / closed | DC PNP/NPN | 1 x LED blue / green / red / magenta / yellow / white / orange; preset: ; Switching status: green; Power: -; Function: red | 2 m PUR-Cable |
KT6101 | dynamic; (static; Bistable configurable) | normally open / closed | DC PNP/NPN | 1 x LED blue / green / red / magenta / yellow / white / orange; preset: ; Switching status: green; Power: -; Function: red | 0.3 m PUR-Cable; M12 Connector |
KT6300 | dynamic; (static; Bistable configurable) | normally open / closed | DC PNP/NPN | 1 x LED blue / green / red / magenta / yellow / white / orange; preset: ; Switching status: green; Power: -; Function: red | 2 m PUR-Cable |
KT6301 | dynamic; (static; Bistable configurable) | normally open / closed | DC PNP/NPN | 1 x LED blue / green / red / magenta / yellow / white / orange; preset: ; Switching status: green; Power: -; Function: red | 0.3 m PUR-Cable; M12 Connector |
Alternate configurations
SKU | Description | List price | - |
---|---|---|---|
IFM-010110010 | Position Sensors - Touch - Capacitive touch sensors | $0.01 |
