Headline

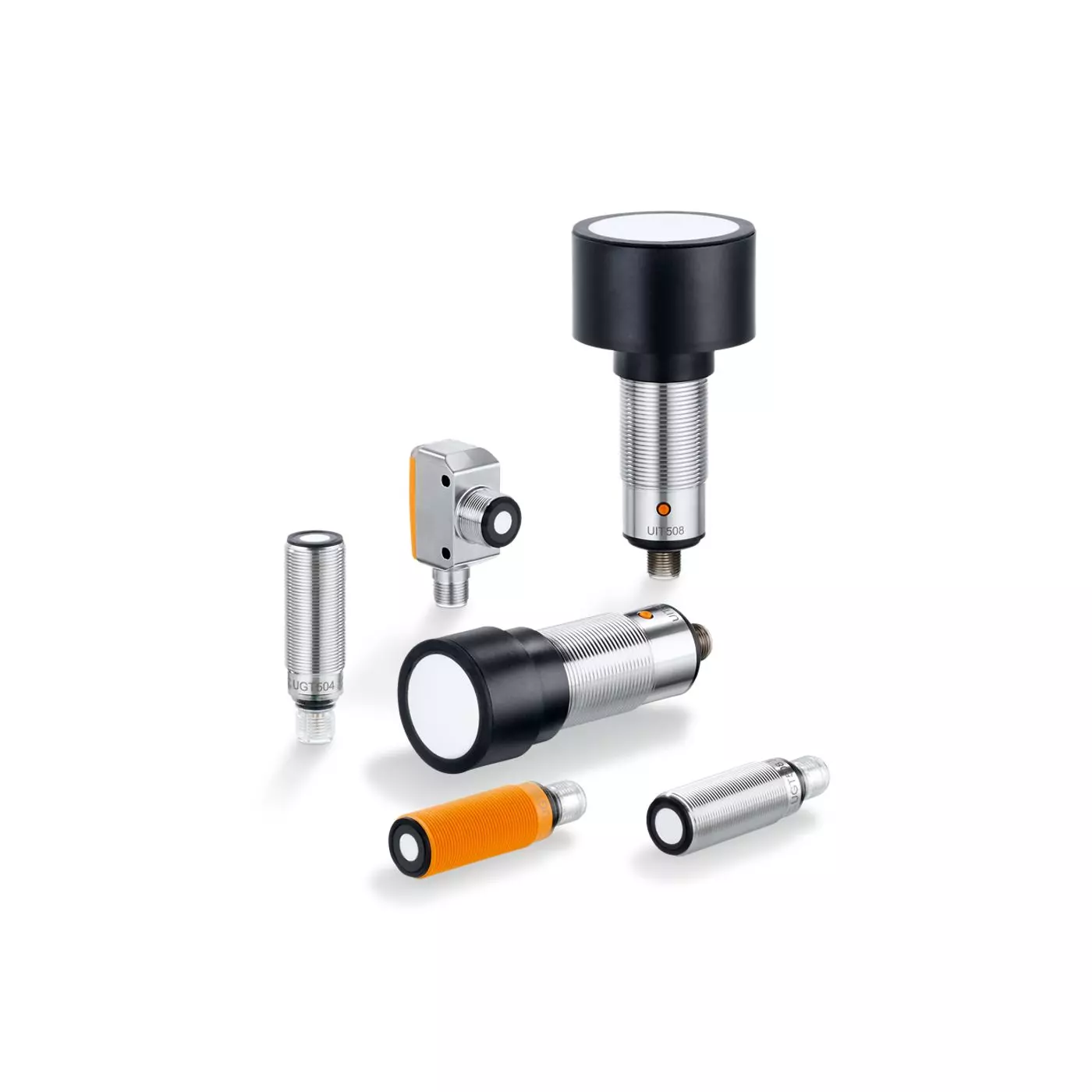

Ultrasonic sensors in M30
Long ranges The new ifm ultrasonic sensors in M30 design are distinguished by their long range of up to 8 m. This makes them particularly suited for the detection of objects far away or for continuous level monitoring, e.g. of bulk materials or liquids. As opposed to photoelectric sensors colour, transparency or the object’s or medium’s surface shine do not affect sensing.
Adjustable sound beam Due to limited space unwanted reflections at the inside of the tank may occur in level applications. This can lead to faulty measurement results. Thanks to IO-Link, the sound beam can be set individually according to the application. With IO-Link, the user is well prepared for Industry 4.0.
Features & Benefits
- Width of the sound beam adjustable via IO-Link
- Sensing range up to 8 m in M30 design
- Easy setting via teach button or IO-Link
- Oscillating sound transducer reduces deposit of dirt
- Robust stainless steel housing
Additional Notes
| MPN | Sensing range | Output function | Output | Analog output | Dimensions |
|---|---|---|---|---|---|
| UIT500 | 250...3500 mm | normally open / closed; (configurable) | DC PNP | M30 x 1.5 / L = 103 mm | |
| UIT501 | 250...3500 mm | normally open / closed; (configurable + 1x current output); analog | DC PNP | 4...20 mA | M30 x 1.5 / L = 103 mm |
| UIT502 | 250...3500 mm | normally open / closed; (configurable + 1x voltage output); analog | DC PNP | 0...10 V | M30 x 1.5 / L = 103 mm |
| UIT503 | 350...6000 mm | normally open / closed; (configurable) | DC PNP | M30 x 1.5 / L = 103.8 mm | |
| UIT504 | 350...6000 mm | normally open / closed; (configurable + 1x current output); analog | DC PNP | 4...20 mA | M30 x 1.5 / L = 103.8 mm |
| UIT505 | 350...6000 mm | normally open / closed; (configurable + 1x voltage output); analog | DC PNP | 0...10 V | M30 x 1.5 / L = 103.8 mm |
| UIT506 | 600...8000 mm | normally open / closed; (configurable) | DC PNP | M30 x 1.5 / L = 118.8 mm | |
| UIT507 | 600...8000 mm | normally open / closed; (configurable + 1x current output); analog | DC PNP | 4...20 mA | M30 x 1.5 / L = 118.8 mm |
| UIT508 | 600...8000 mm | normally open / closed; (configurable + 1x voltage output); analog | DC PNP | 0...10 V | M30 x 1.5 / L = 118.8 mm |
| UIT509 | 250...3500 mm | normally open / closed; (configurable) | DC NPN | M30 x 1.5 / L = 103 mm | |
| UIT510 | 250...3500 mm | normally open / closed; (configurable + 1x current output); analog | DC NPN | 4...20 mA | M30 x 1.5 / L = 103 mm |
| UIT511 | 250...3500 mm | normally open / closed; (configurable + 1x voltage output); analog | DC NPN | 0...10 V | M30 x 1.5 / L = 103 mm |
| UIT512 | 350...6000 mm | normally open / closed; (configurable) | DC NPN | M30 x 1.5 / L = 103.8 mm | |
| UIT513 | 350...6000 mm | normally open / closed; (configurable + 1x current output); analog | DC NPN | 4...20 mA | M30 x 1.5 / L = 103.8 mm |
| UIT514 | 350...6000 mm | normally open / closed; (configurable + 1x voltage output); analog | DC NPN | 0...10 V | M30 x 1.5 / L = 103.8 mm |
| UIT515 | 600...8000 mm | normally open / closed; (configurable) | DC NPN | M30 x 1.5 / L = 118.8 mm | |
| UIT516 | 600...8000 mm | normally open / closed; (configurable + 1x current output); analog | DC NPN | 4...20 mA | M30 x 1.5 / L = 118.8 mm |
| UIT517 | 600...8000 mm | normally open / closed; (configurable + 1x voltage output); analog | DC NPN | 0...10 V | M30 x 1.5 / L = 118.8 mm |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-010045010 | Position Sensors - Ultrasonic - UG Cube with metal housing for industrial automation | $0.01 | |
| IFM-010045020 | Position Sensors - Ultrasonic - UG M18 short body sensors | $0.01 | |
| IFM-010045025 | Position Sensors - Ultrasonic - UG M18 long body sensors | $0.01 |
