Headline

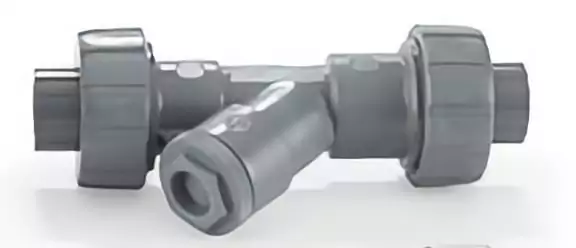

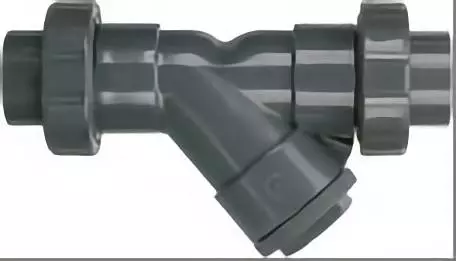

Y-Strainers
Griffco Y-Strainers are designed to enhance the performance of chemical feed systems. The addition of a Y-Strainer to the suction side of the chemical feed pump prevents debris from entering the pump and clogging the check valves or damaging the interior of the pump head. Our Y-Strainers are available in a variety of materials, such as metal y-strainers and plastic y-strainers.
Features & Benefits
Y-Strainer Features
- Horizontal or Vertical Installation
- 2:1 Open Area Ratio
- Hex Cap for Easy Screen Access
- Standard Screen Perforation: 1/32"
Griffco Benefits
- Made in USA
- Multiple connection choices available
- Variety of materials
Additional Notes
Materials of Construction
- PVC
- Clear PVC
- CPVC
- 316 SS
- PVDF
Connections
- Types: NPT, BSPT, Socket,
- Sizes: 1/2" - 2"; DN15 - DN50
Maximum Temperature
- PVC/Clear PVC - 140° F (60° C)
- CPVC/PVDF - 190° F (87° C)
- 316 SS - 400° F (204° C)
Options
- 316 SS Mesh or Perforated Screens
- True Union Connections
- Flanged Connections
- European Connections (at no extra cost)
Chemical Compatibility
Alternate configurations
SKU | Description | List price | - |
---|---|---|---|
GVI-YS050CP | YS050-CP | 1/2 inch CPVC Y-Strainer | $373.00 | |
GVI-YS050CPF | YS050-CPF | 1/2 inch CPVC Y-Strainer - Flanged | $410.00 | |
GVI-YS050CPS | YS050-CPS | 1/2 inch CPVC Y-Strainer - Socket | $373.00 | |
GVI-YS050CPU | YS050-CPU | 1/2 inch CPVC True Union Y-Strainer - Socket | $410.00 | |
GVI-YS050CPUD | YS050-CPUD | Y Strainer - DN 15 Union - CPVC | $410.00 | |
GVI-YS050K | YS050-K | 1/2 inch PVDF Y-Strainer - Threaded - Viton | $0.01 | |
GVI-YS050KS | YS050-KS | 1/2 inch PVDF Y-Strainer - IPS Socket - Viton | $0.01 | |
GVI-YS050PC | YS050-PC | 1/2 inch Clear PVC Y-Strainer | $138.00 | |
GVI-YS050PCF | YS050-PCF | 1/2 inch Clear PVC Y-Strainer - Flanged | $196.00 | |
GVI-YS050PCS | YS050-PCS | 1/2 inch Clear PVC Y-Strainer - Socket | $138.00 | |
GVI-YS050PCU | YS050-PCU | 1/2 inch Clear PVC True Union Y-Strainer - Socket | $196.00 | |
GVI-YS050PCUD | YS050-PCUD | Y Strainer - DN 15 Union - Clear PVC | $195.00 | |
GVI-YS050PF | YS050-PF | 1/2 inch PVC Y-Strainer - Flanged | $196.00 | |
GVI-YS050PS | YS050-PS | 1/2 inch PVC Y-Strainer - Socket | $138.00 | |
GVI-YS050PU | YS050-PU | 1/2 inch PVC True Union Y-Strainer - Socket | $196.00 |
