Headline
Y-Strainers
Griffco Y-Strainers are designed to enhance the performance of chemical feed systems. The addition of a Y-Strainer to the suction side of the chemical feed pump prevents debris from entering the pump and clogging the check valves or damaging the interior of the pump head. Our Y-Strainers are available in a variety of materials, such as metal y-strainers and plastic y-strainers.
Features & Benefits
Product Features
Y-Strainer Design
- Horizontal or Vertical Installation
- 2:1 Open Area Ratio
- Hex Cap for Easy Screen Access
- Standard Screen Perforation: 1/32"
Benefits
Griffco Advantages
- Made in USA
- Multiple connection choices available
- Variety of materials
Technical Specifications
| Parameter | Value |
|---|---|
| Open Area Ratio | 2:1 |
| Screen Perforation | 1/32" |

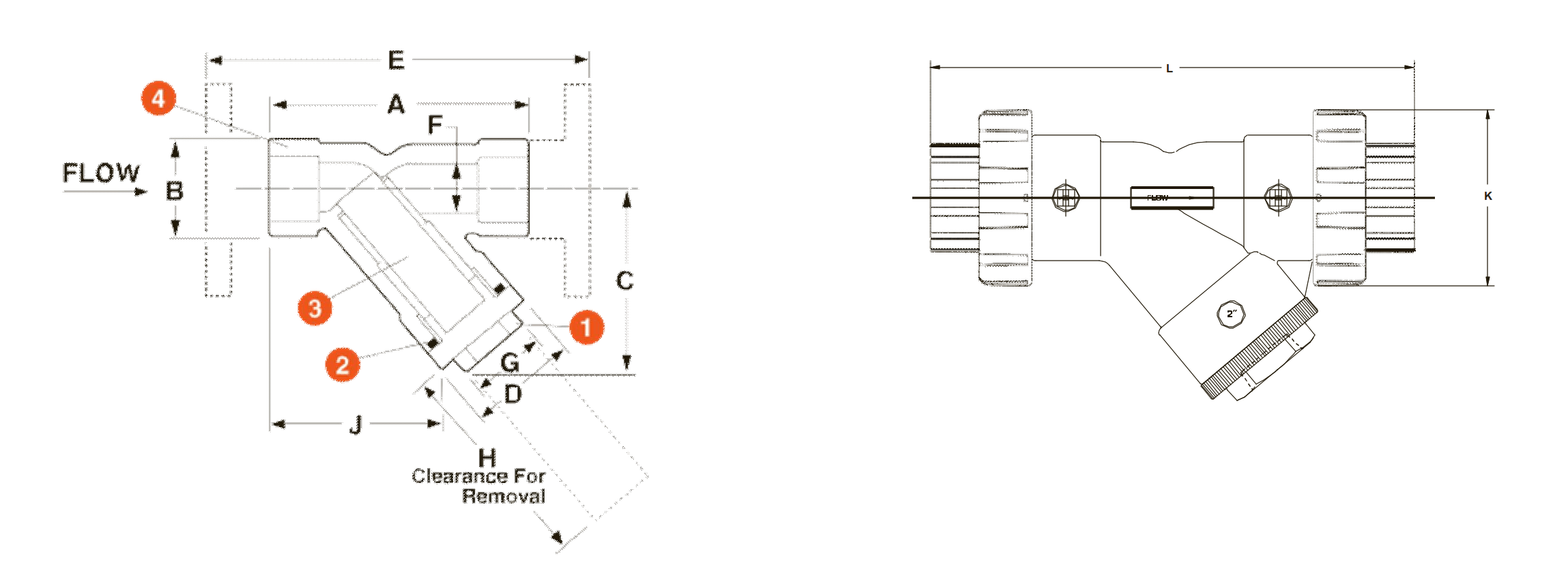

Dimensional drawings
Reference Dimensions
| Size in | A in | B in | C in | D in | E in | F in | G in | H in | J in | K in | L in | WEIGHT (lbs) SOC/TRD FLANGE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ½ | 3.36 | 1.38 | 2.25 | 1.5 | 6.13 | 0.56 | 1 | 2.13 | 2.5 | 2.25 | 6.64 | 0.25 |
| ¾ | 4.18 | 1.69 | 2.88 | 2 | 7.13 | 0.81 | 1.25 | 2.75 | 3 | 2.63 | 7.42 | 0.63 |
| 1 | 5.19 | 2 | 3.63 | 2.16 | 8.38 | 1 | 1.5 | 3.3 | 3.32 | 3 | 8.97 | 0.88 |
| 1.5 | 6.63 | 2.63 | 4.5 | 2.94 | 10.75 | 1.56 | 2 | 4.5 | 4.45 | 4.75 | 12.07 | 1.63 |
| 2 | 7.63 | 3.38 | 5.38 | 3.75 | 12.25 | 2 | 2.38 | 5.06 | 4.88 | 4.75 | 13.05 | 3 |
