Headline
Medium Pressure Relief Valves
Griffco PRMP-Series diaphragm pressure relief valves are designed to protect chemical feed systems from over pressure damage caused by defective equipment or a blockage in the chemical feed line. Robust construction ensures reliability in the rigorous service of municipal and industrial applications. Wetted materials include: 316 SS, A20, Hast. C and Titanium. Available sizes: 1/4″ – 1″.
Features & Benefits
Key Features
Construction & Materials
- Solid, robust, single-piece machined construction
- Available in 316 SS, A20, Hast. C and Titanium
- Tamper-resistant adjustment screw
Technical Specifications
| Parameter | Value |
|---|---|
| Pressure Rating | Up to 800 psi (55 bar) |
| Valve Sizes | 1/4" to 1" (DN 8 to DN 25) |
Safety Features
- Anti-siphon function
Benefits
- High reliability at affordable price
- Long diaphragm life
- Multiple diaphragm material options

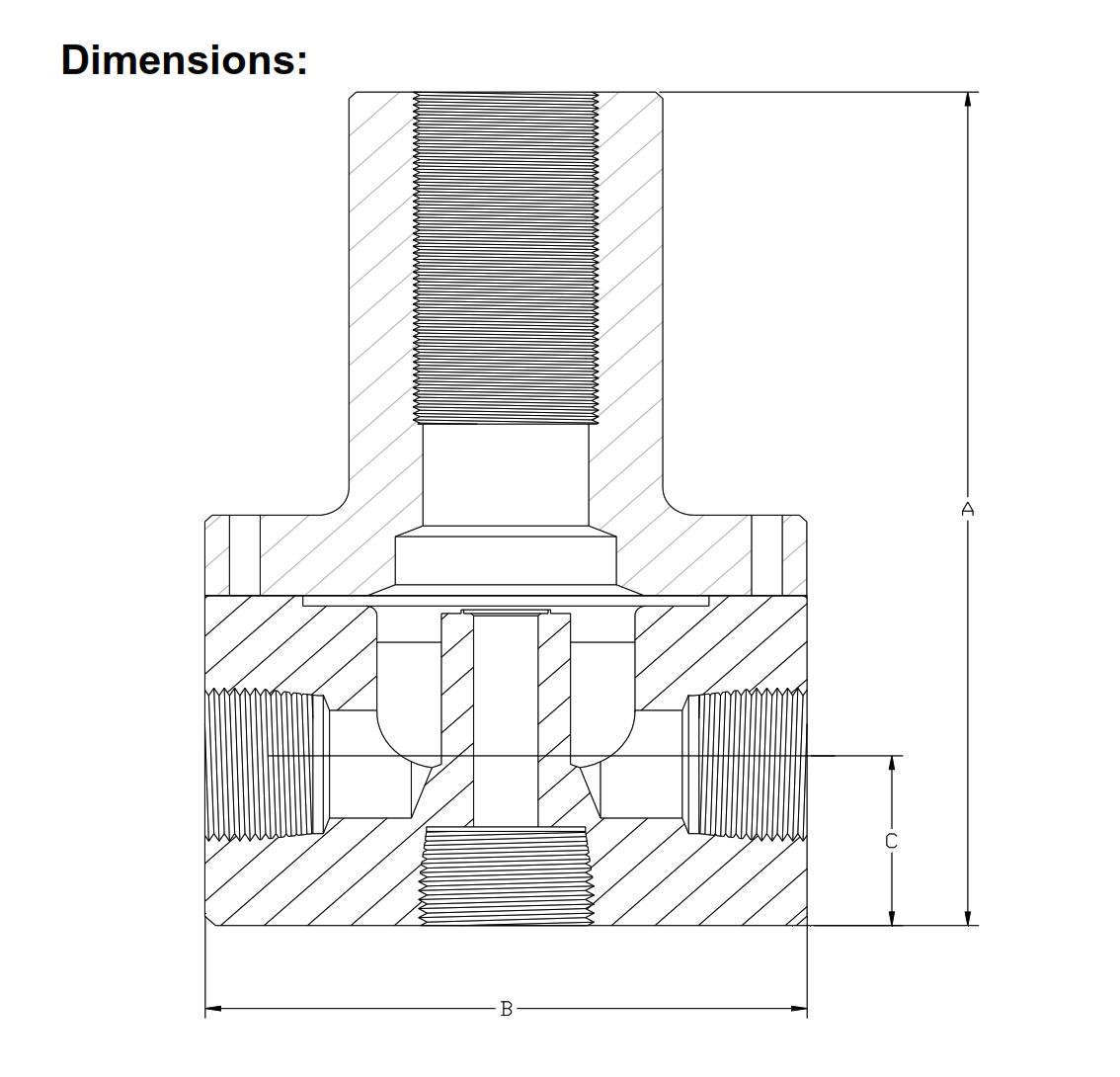

Dimensional drawings
Exploded view
