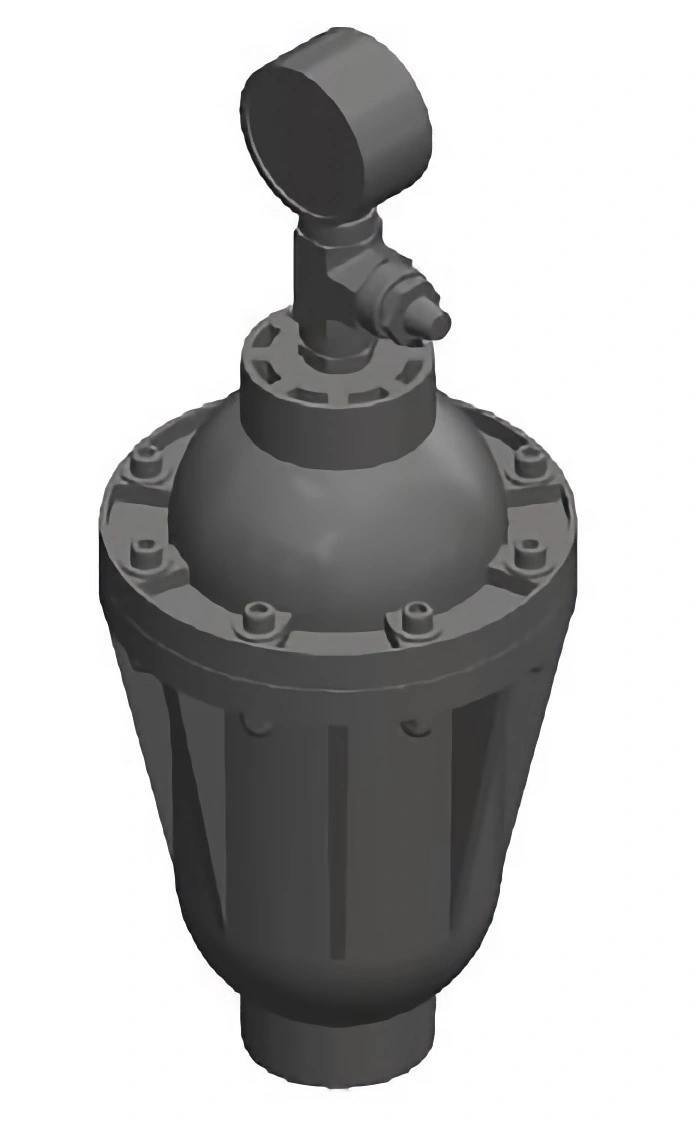

PDA0032-KT | Adjustable Pulsation Dampener- 1 inch - PVDF - 80 cu in

Pictures may not be actual SKU

Manual
Cut sheet
Materials of Construction

PDA0032-KT | Adjustable Pulsation Dampener- 1 inch - PVDF - 80 cu in

Name: PDA0032-KT | Adjustable Pulsation Dampener- 1 inch - PVDF - 80 cu in
Brand: Griffco Valve
SKU: GVI-PDA0032KT
Price: 2227.11 USD
Availability: InStock

GVI | Griffco Valve

PD | Pulsation Dampeners

PDA-0032 | Adjustable Pulsation Dampeners - 1 inch - 80 cu in

GVI-PDA0032KT

Description

Griffco's PDA0032-KT Adjustable Pulsation DampenerPVDF housing with PTFE bladder, 1 inch inlet, and 80 cu in volume

Base Model

Series

PDA | Adjustable Pulsation Dampeners

Volume

0032 | 80 cu in (metal - 62 cu in)

Construction

Housing Material

K | PVDF

Diaphragm Material

T | PTFE

Options

Gauge

_ | Standard

Pressure

_ | Standard

Options

_ | Standard

Available to Order

Ships from PA - GA - FL - OH - TX - OR

Typically ships within [ 7 ] days

24/7 Sales & Support 484-544-0506

$2,227.11 Configured Price

Quantity:

− +

Overview
Tech Specs
Materials
Support Docs
SKU List

Headline

Pulsation Dampeners

Griffco pulsation dampeners are designed to enhance the performance of the chemical feed systems by reducing harmful shock waves and delivering continuous chemical dosage at the injection point.

Features & Benefits

Technical Specifications

Parameter	Value
Available Sizes	22 volumetric options
Dampening Effect	+2.5%
Max Pressure (Metals)	1000 psi (70 bar)
Max Pressure (Plastics)	150 psi (10 bar)

Key Benefits

High reliability at affordable price
Robust, machined construction
Made in USA

Chemical Compatibility

Alternate configurations

SKU	Description	List price	-
GVI-PDA0032AE	PDA0032-AE \| Adjustable Pulsation Dampener- 1 inch - Alloy 20 - 62 cu in	$0.01	GVI-PDA0032AE Detail
GVI-PDA0032AH	PDA0032-AH \| Adjustable Pulsation Dampener- 1 inch - Alloy 20 - 62 cu in	$0.01	GVI-PDA0032AH Detail
GVI-PDA0032AT	PDA0032-AT \| Adjustable Pulsation Dampener- 1 inch - Alloy 20 - 62 cu in	$0.01	GVI-PDA0032AT Detail
GVI-PDA0032AV	PDA0032-AV \| Adjustable Pulsation Dampener- 1 inch - Alloy 20 - 62 cu in	$0.01	GVI-PDA0032AV Detail
GVI-PDA0032CE	PDA0032-CE \| Adjustable Pulsation Dampener- 1 inch - Hast C - 62 cu in	$0.01	GVI-PDA0032CE Detail
GVI-PDA0032CH	PDA0032-CH \| Adjustable Pulsation Dampener- 1 inch - Hast C - 62 cu in	$0.01	GVI-PDA0032CH Detail
GVI-PDA0032CPE	PDA0032-CPE \| Adjustable Pulsation Dampener- 1 inch - CPVC - 80 cu in	$833.64	GVI-PDA0032CPE Detail
GVI-PDA0032CPH	PDA0032-CPH \| Adjustable Pulsation Dampener- 1 inch - CPVC - 80 cu in	$931.58	GVI-PDA0032CPH Detail
GVI-PDA0032CPT	PDA0032-CPT \| Adjustable Pulsation Dampener- 1 inch - CPVC - 80 cu in	$1,991.16	GVI-PDA0032CPT Detail
GVI-PDA0032CPV	PDA0032-CPV \| 80 cu in Adjustable Pulsation Dampener - CPVC - Viton - 200 psi Gauge	$1,017.00	GVI-PDA0032CPV Detail
GVI-PDA0032CT	PDA0032-CT \| Adjustable Pulsation Dampener- 1 inch - Hast C - 62 cu in	$0.01	GVI-PDA0032CT Detail
GVI-PDA0032CV	PDA0032-CV \| Adjustable Pulsation Dampener- 1 inch - Hast C - 62 cu in	$0.01	GVI-PDA0032CV Detail
GVI-PDA0032KE	PDA0032-KE \| Adjustable Pulsation Dampener- 1 inch - PVDF - 80 cu in	$1,472.50	GVI-PDA0032KE Detail
GVI-PDA0032KH	PDA0032-KH \| Adjustable Pulsation Dampener- 1 inch - PVDF - 80 cu in	$1,500.32	GVI-PDA0032KH Detail
GVI-PDA0032KV	PDA0032-KV \| Adjustable Pulsation Dampener- 1 inch - PVDF - 80 cu in	$1,725.15	GVI-PDA0032KV Detail
