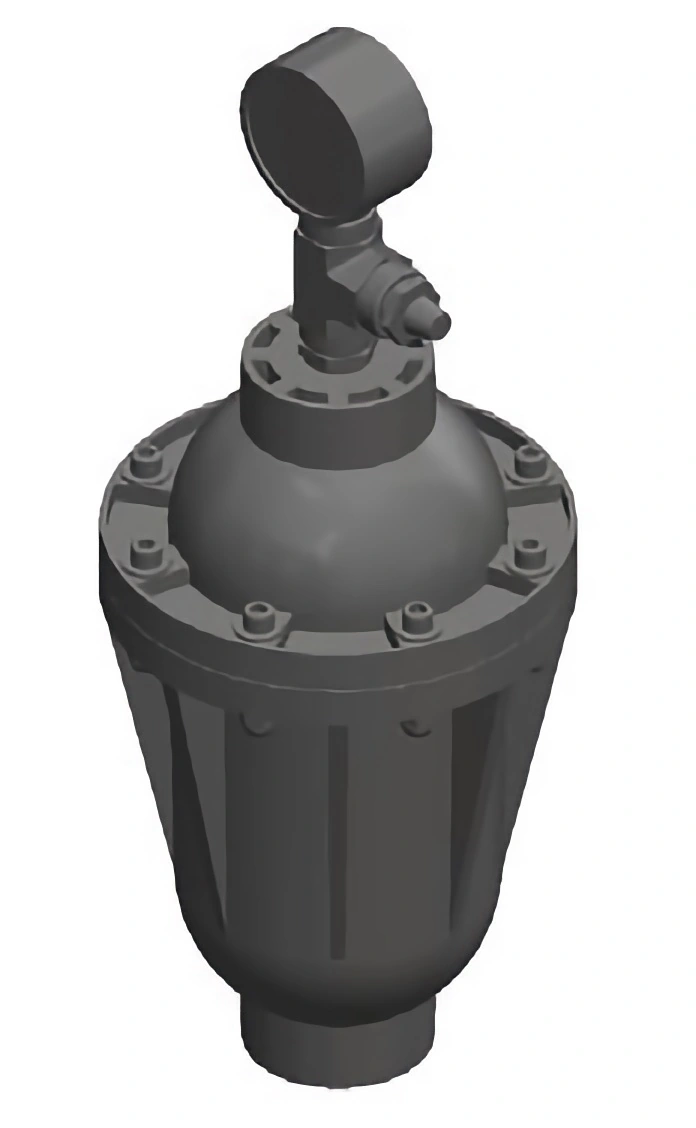

PDA0022-KT | Adjustable Pulsation Dampener- 3/4 inch - PVDF - 29 cu in

Pictures may not be actual SKU

Manual
Cut sheet
Materials of Construction

PDA0022-KT | Adjustable Pulsation Dampener- 3/4 inch - PVDF - 29 cu in

Name: PDA0022-KT | Adjustable Pulsation Dampener- 3/4 inch - PVDF - 29 cu in
Brand: Griffco Valve
SKU: GVI-PDA0022KT
Price: 1616.08 USD
Availability: InStock

GVI | Griffco Valve

PD | Pulsation Dampeners

PDA-0022 | Adjustable Pulsation Dampeners - 3/4 inch - 29 cu in

GVI-PDA0022KT

Description

Griffco's PDA0022-KT Adjustable Pulsation DampenerPVDF housing with PTFE bladder, 3/4" inlet, and 29 cu in volume

Base Model

Series

PDA | Adjustable Pulsation Dampeners

Volume

0022 | 29 cu in (metal - 21 cu in)

Construction

Housing Material

K | PVDF

Diaphragm Material

T | PTFE

Options

Gauge

_ | Standard

Pressure

_ | Standard

Options

_ | Standard

Available to Order

Ships from PA - GA - FL - OH - TX - OR

Typically ships within [ 7 ] days

24/7 Sales & Support 484-544-0506

$1,616.08 Configured Price

Quantity:

− +

Overview
Tech Specs
Materials
Support Docs
SKU List

Headline

Pulsation Dampeners

Griffco pulsation dampeners are designed to enhance the performance of the chemical feed systems by reducing harmful shock waves and delivering continuous chemical dosage at the injection point.

Features & Benefits

Technical Specifications

Parameter	Value
Available Sizes	22 volumetric options
Dampening Effect	+2.5%
Max Pressure (Metals)	1000 psi (70 bar)
Max Pressure (Plastics)	150 psi (10 bar)

Key Benefits

High reliability at affordable price
Robust, machined construction
Made in USA

Chemical Compatibility

Alternate configurations

SKU	Description	List price	-
GVI-PDA0022AE	PDA0022-AE \| Adjustable Pulsation Dampener- 3/4 inch - Alloy 20 - 21 cu in	$0.01	GVI-PDA0022AE Detail
GVI-PDA0022AH	PDA0022-AH \| Adjustable Pulsation Dampener- 3/4 inch - Alloy 20 - 21 cu in	$0.01	GVI-PDA0022AH Detail
GVI-PDA0022AT	PDA0022-AT \| Adjustable Pulsation Dampener- 3/4 inch - Alloy 20 - 21 cu in	$0.01	GVI-PDA0022AT Detail
GVI-PDA0022AV	PDA0022-AV \| Adjustable Pulsation Dampener- 3/4 inch - Alloy 20 - 21 cu in	$0.01	GVI-PDA0022AV Detail
GVI-PDA0022CE	PDA0022-CE \| Adjustable Pulsation Dampener- 3/4 inch - Hast C - 21 cu in	$0.01	GVI-PDA0022CE Detail
GVI-PDA0022CH	PDA0022-CH \| Adjustable Pulsation Dampener- 3/4 inch - Hast C - 21 cu in	$0.01	GVI-PDA0022CH Detail
GVI-PDA0022CPE	PDA0022-CPE \| Adjustable Pulsation Dampener- 3/4 inch - CPVC - 29 cu in	$736.81	GVI-PDA0022CPE Detail
GVI-PDA0022CPH	PDA0022-CPH \| Adjustable Pulsation Dampener- 3/4 inch - CPVC - 29 cu in	$792.46	GVI-PDA0022CPH Detail
GVI-PDA0022CPT	PDA0022-CPT \| Adjustable Pulsation Dampener- 3/4 inch - CPVC - 29 cu in	$1,499.21	GVI-PDA0022CPT Detail
GVI-PDA0022CPV	PDA0022-CPV \| Adjustable Pulsation Dampener- 3/4 inch - CPVC - 29 cu in	$820.28	GVI-PDA0022CPV Detail
GVI-PDA0022CT	PDA0022-CT \| Adjustable Pulsation Dampener- 3/4 inch - Hast C - 21 cu in	$0.01	GVI-PDA0022CT Detail
GVI-PDA0022CV	PDA0022-CV \| Adjustable Pulsation Dampener- 3/4 inch - Hast C - 21 cu in	$0.01	GVI-PDA0022CV Detail
GVI-PDA0022KE	PDA0022-KE \| Adjustable Pulsation Dampener- 3/4 inch - PVDF - 29 cu in	$790.23	GVI-PDA0022KE Detail
GVI-PDA0022KH	PDA0022-KH \| Adjustable Pulsation Dampener- 3/4 inch - PVDF - 29 cu in	$860.35	GVI-PDA0022KH Detail
GVI-PDA0022KV	PDA0022-KV \| Adjustable Pulsation Dampener- 3/4 inch - PVDF - 29 cu in	$902.64	GVI-PDA0022KV Detail
