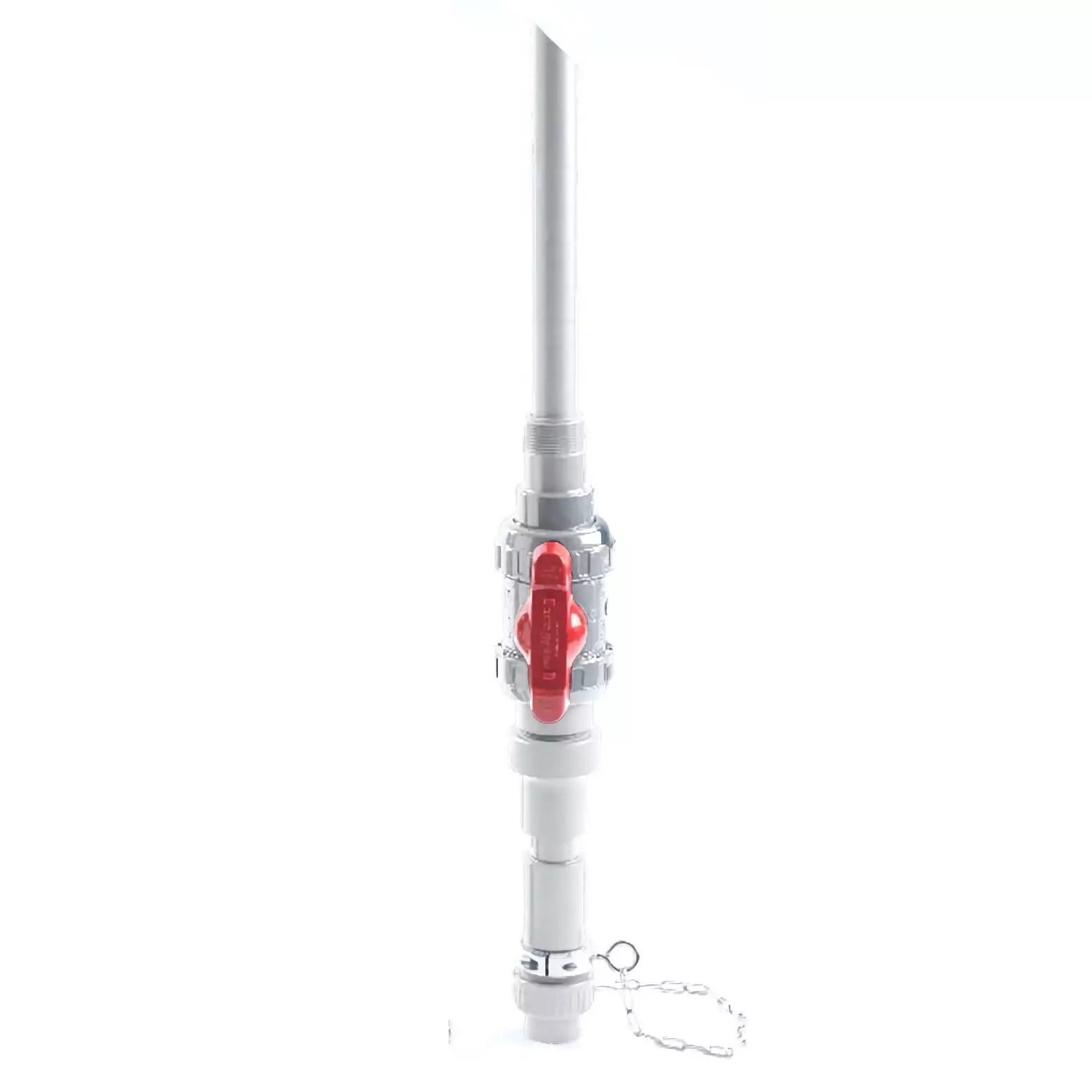

CSKC050-P | PVDF Corporation Stop w/ Check Valve - 1/2 inch - PVC

Corporation Stops

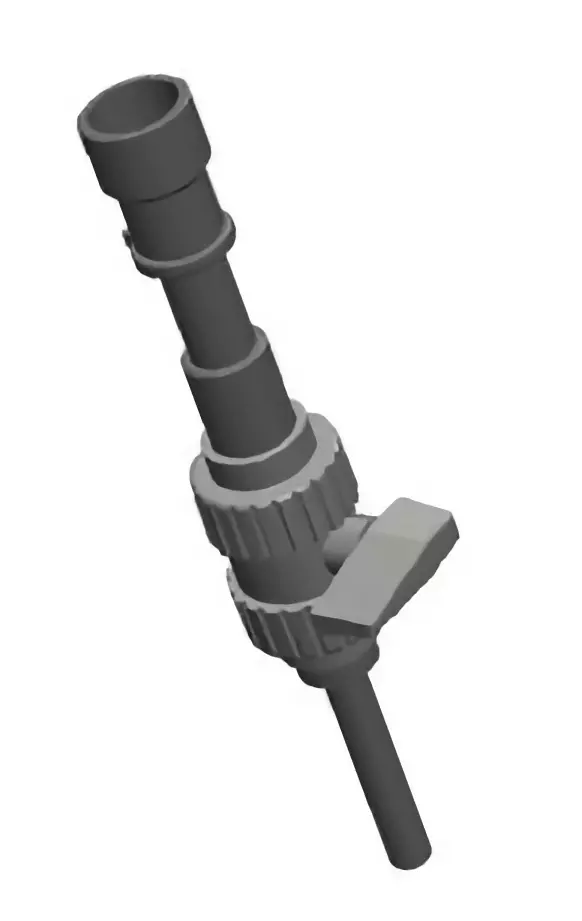

Griffco corporation stops (corp stops) are designed to ensure that chemical feed systems inject into the center of a process stream for better mixing and to prevent corrosion along the process pipe. They are also retractable and offer a ball valve to seal the process stream for servicing (when the process cannot be drained). The integral check valve prevents the process fluid from going back up the chemical line. With limited seals and joints, this leak-free design is a sure fit for safety and long-life operation. Robust construction ensures reliability in the rigorous service of municipal and industrial applications.

Corporation Stop Product Overview

Core Design Features

• Compact assembly for easier access and positioning
• Fast and easy union disconnect for servicing
• Lock ready design for tamper resistant safety
• SS limit chains (when inserted and retract length)

Technical Specifications

Material Options

• Outer housing and valve materials:
  • PVC
  • Brass
  • PVDF
  • CPVC
  • 316 SS
• Seal options:
  • EPDM
  • FKM (Viton)

Configuration Options

• Multiple tip configurations:
  • Duckbill
  • 45 degree
  • Flat
• Connection types:
  • Plastic union
  • Threaded
• Custom quill lengths
• Quill stiffener option for plastic construction

Optional Features

• Integral check valve with Hast C Spring
• Secondary injection port
• Chemical line drain
• Redundant quill lock

Griffco Benefits

• High reliability at affordable price
• Robust, machined construction
• Wide range of wetted materials
