Headline
Calibration Columns
Griffco Borosilicate Glass Columns are designed to enhance the performance of a chemical feed system by providing a verification of the flow rate of the chemical feed pump. Griffco offers a wide range of calibration column sizes and material options that work in many different applications.
Features & Benefits
Glass Calibration Cylinders
Technical Specifications
| Parameter | Range |
|---|---|
| Size Range | 30mL to 20,000mL |
Core Features
- Borosilicate glass tube construction
- High-contrast graduation markings
- Multiple measurement scales
- US measurements
- Metric measurements
- GPH (Gallons Per Hour)
- Seven end cap material options
- Sealed top with overflow connection
Design Benefits
- Easy disassembly for cleaning
- Protective outer shield
- Standard on most models
- Not available on 10K and 20K sizes
- Clear, easy-view tube design
Performance Advantages
- High reliability with numerous options
- Precise performance
- Robust construction

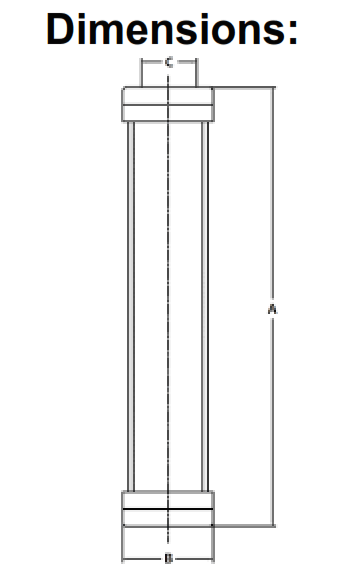

Dimensional drawings
Reference Dimensions
| Capacity | Max Flow ▲ | Max Flow ▲ | Scale | Scale | A | B | C |
|---|---|---|---|---|---|---|---|
| (mL) | (USgph) | (lph) | (mL) | ▲(gph) | (in) | (in) | (in) |
| 30 | 0.95 | 3.6 | 1 | 0.05 | 14 | 1.4 | 01-Apr |
| 100 | 3.2 | 12 | 2 | 0.1 | 15 | 2.5 | 01-Feb |
| 200 | 6.4 | 24 | 2 | 0.1 | 21 | 2.5 | 01-Feb |
| 500 | 16 | 60 | 5 | 0.2 | 15 | 3.5 | 03-Apr |
| 1,000 | 32 | 120 | 5 | 0.2 | 27 | 3.5 | 03-Apr |
| 2,000 | 63 | 240 | 10 | 1 | 27 | 5 | 1 |
| 4,000 | 127 | 480 | 10 | 1 | 39 | 5 | 1 |
| 5,000 | 160 | 600 | 10 | 1 | 29 | 7.5 | 1 1/2 |
| 7,000 | 225 | 840 | 10 | 1 | 39 | 7.5 | 1 1/2 |
| 10,000 | 320 | 1200 | 100 | 5 | 27 | 9.15 | 2 |
| 15,000 | 480 | 1800 | 100 | 5 | 39 | 9.15 | 2 |
| 20,000 | 640 | 2400 | 100 | 5 | 51 | 9.15 | 2 |
