CC2000 | PVC Calibration Columns - 2000 mL - 1 inch
Product details
Spot an error? Let us know!
Headline
Calibration Columns

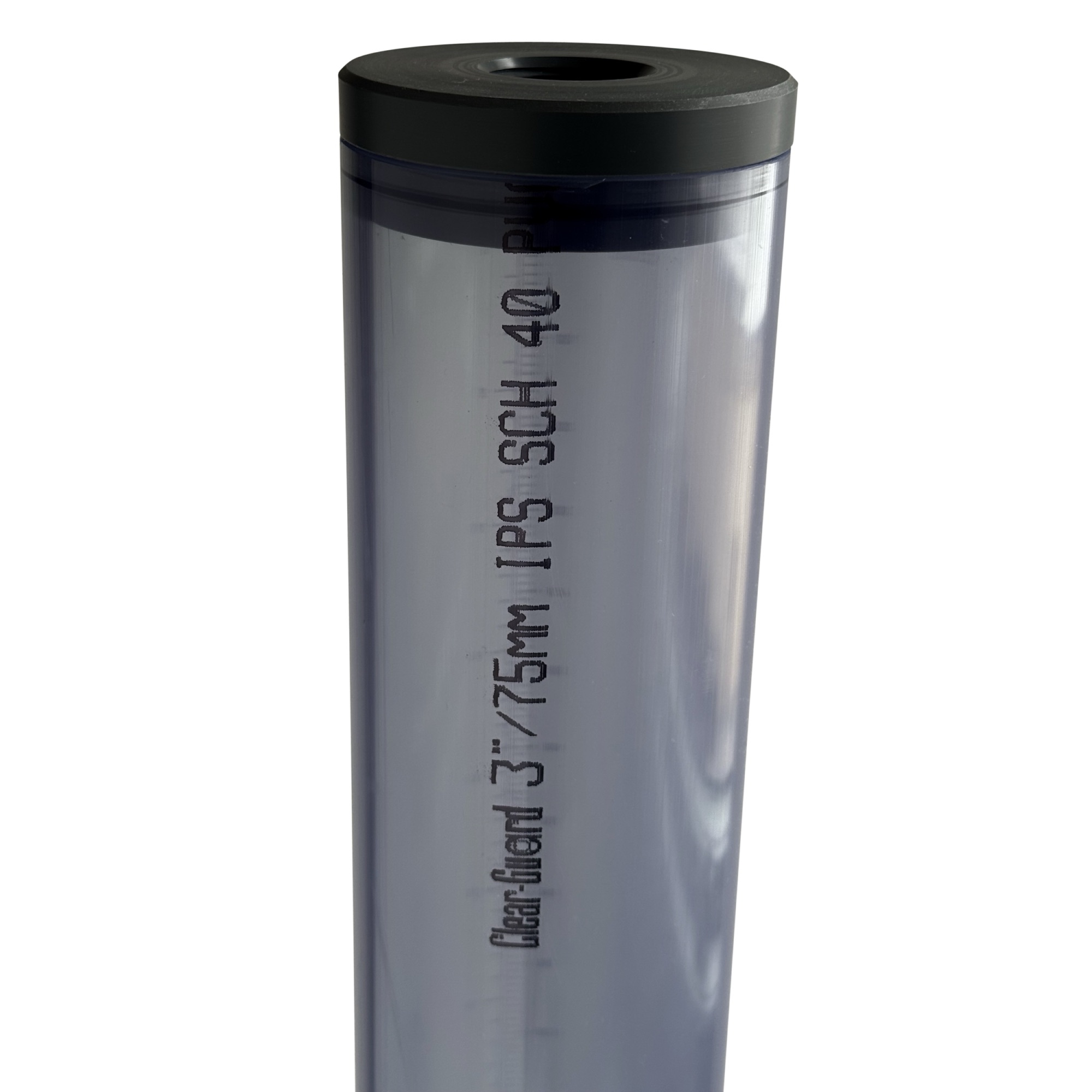

Griffco PVC Calibration Cylinders are designed to enhance the performance of a chemical feed system by providing a verification of the flow rate of the chemical feed pump. Griffco offers a wide range of calibration column sizes and material options that work in many different applications.
Features & Benefits
PVC Calibration Cylinders Features
- Sizes from 100mL to 40,000mL
- Clear, easy-view tube
- High-contrast graduation markings
- Direct GPH and mL readout
- Sealed top with overflow connection
- Optional EZ-Clean model
- Optional open top with dust cap
Griffco Benefits
- High reliability with numerous options that ensure precise performance
- Clear, easy-view tube
- Robust construction
Additional Notes
Options for PVC Tops:
- Sealed with vent
- EZ-Clean
- Dust Cap
End Cap Materials
- Polypropylene
- PVC
- CPVC
- PVDF
- PTFE
- Halar®
- 316 SS
- Alloy 20
- Hastelloy® C
Configurations
- Dust cover
- Sealed
- EZ-Clean
Connections
- Threaded - Standard
- Socket
- Socket Flanged
- Flanged (with ball valve)
- Union
Options
- Custom labels
- Material certifications
- Calibration column stand
Chemical Compatibility
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| GVI-CC2000EZ | CC2000-EZ | 2000 mL Calibration Cylinder - PVC - EZ-Clean | $249.00 | |
| GVI-CC2000F | CC2000-F | PVC Calibration Column - 2000 mL - 1 inch - Flanged | $298.00 | |
| GVI-CC2000L | CC2000-L | 2000 mL Calibration Cylinder - PVC - Loose Top | $235.00 | |
| GVI-CC2000S | CC2000-S | 2000 mL Calibration Cylinder - PVC - Sealed | $235.00 | |
| GVI-CC2000U | CC2000-U | PVC Calibration Column - 2000 mL - 1 inch - Union | $347.00 |
