Headline

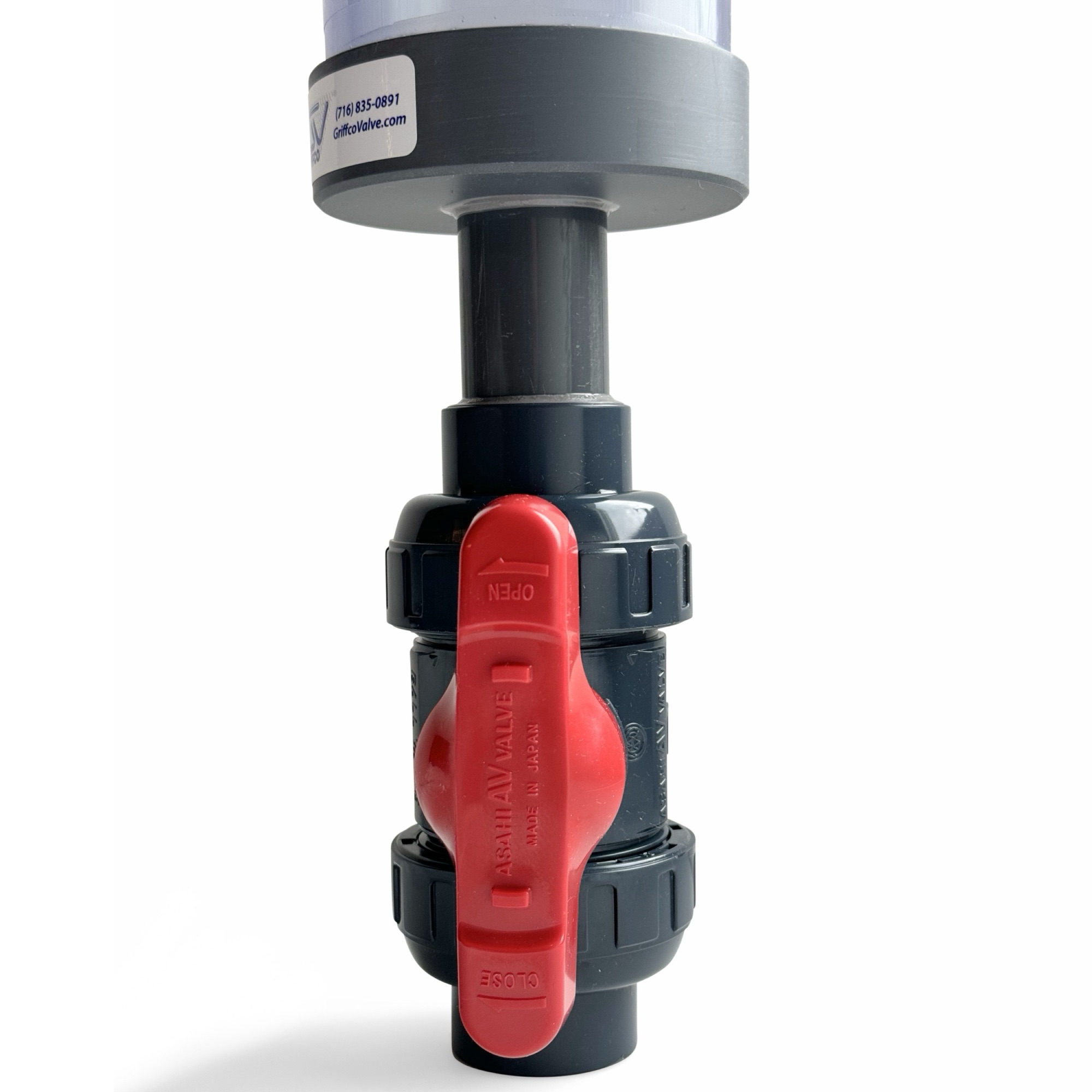

Calibration Columns
Griffco PVC Calibration Cylinders are designed to enhance the performance of a chemical feed system by providing a verification of the flow rate of the chemical feed pump. Griffco offers a wide range of calibration column sizes and material options that work in many different applications.
Features & Benefits

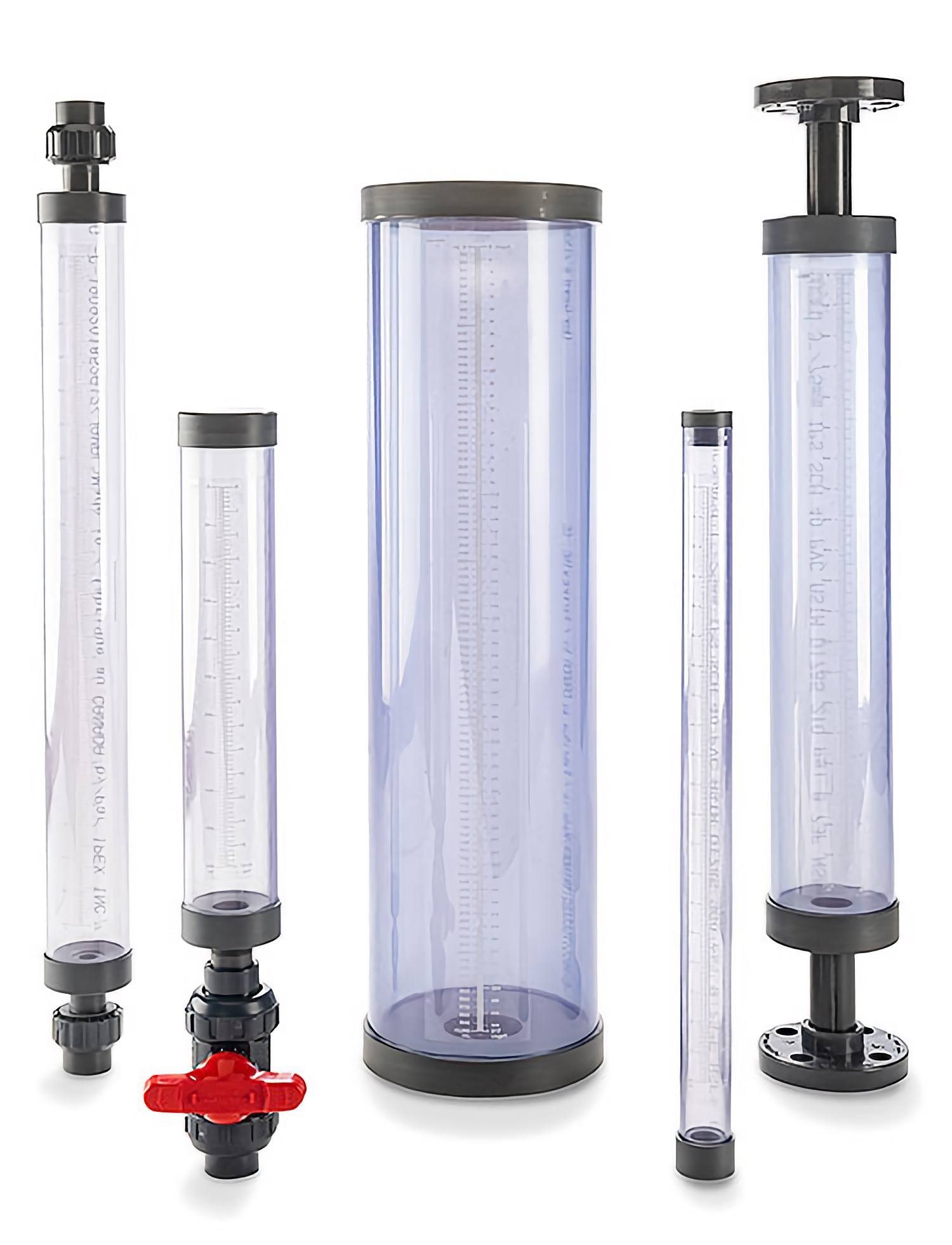

PVC Calibration Cylinders
Key Features
- Sizes from 100mL to 40,000mL
- Clear, easy-view tube
- High-contrast graduation markings
- Direct GPH and mL readout

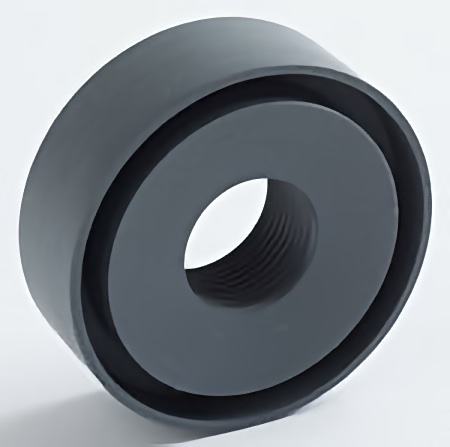

- Sealed top with overflow connection
Optional Features

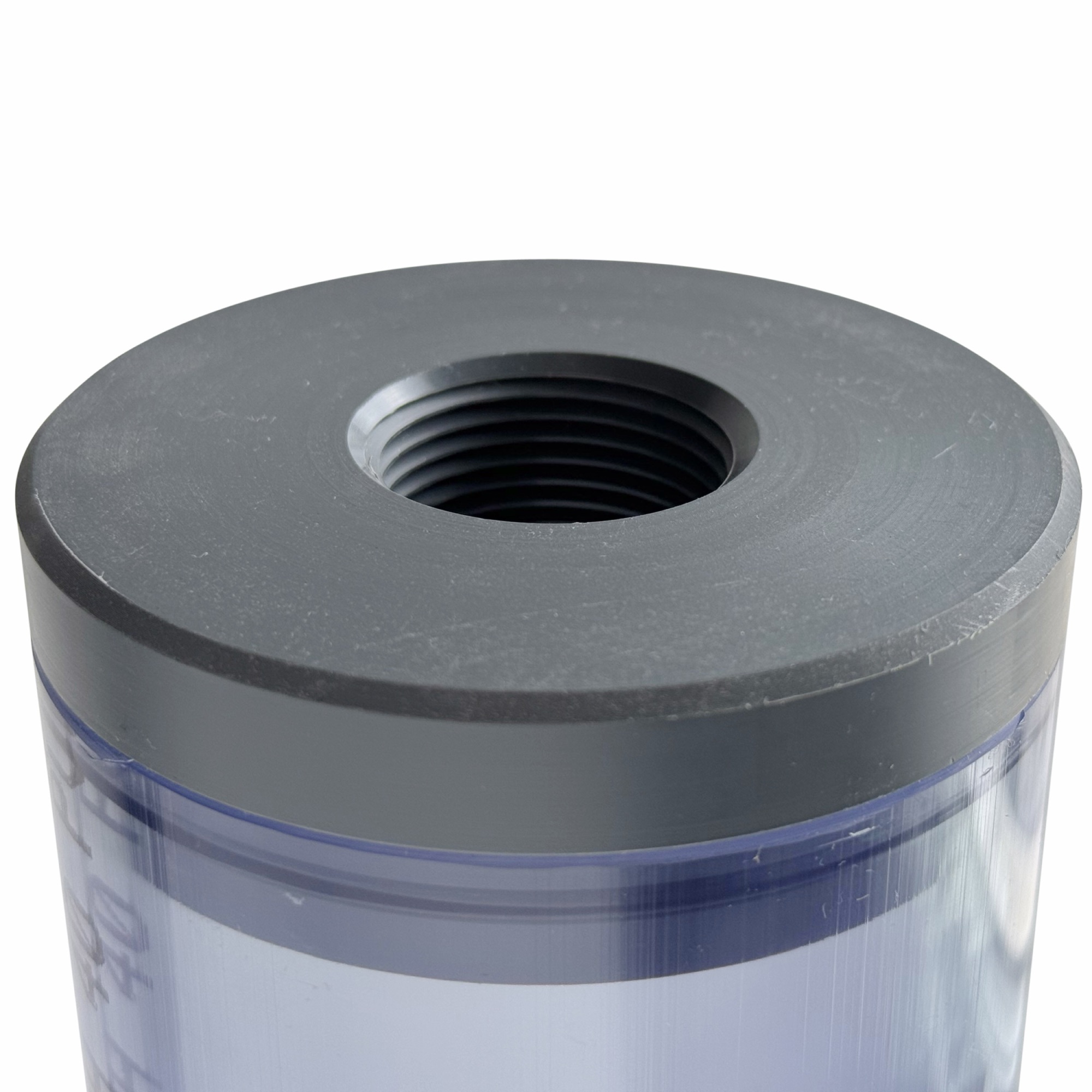

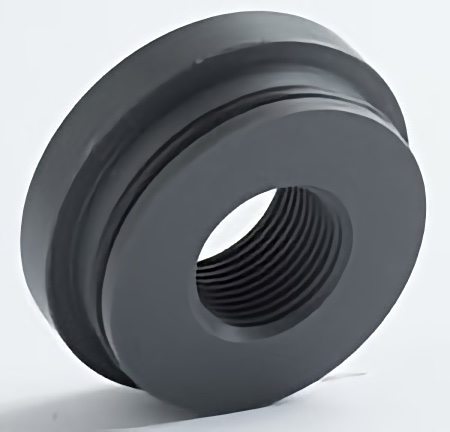

- EZ-Clean model

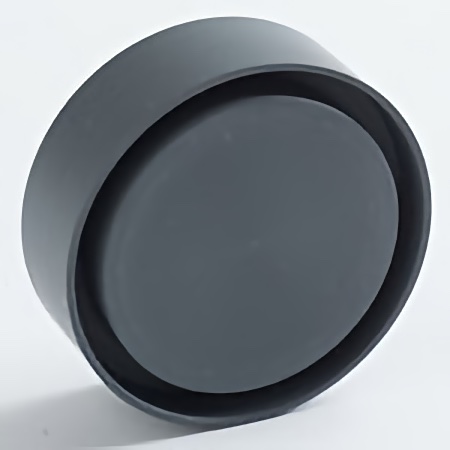

- Open top with dust cap
Griffco Benefits
- High reliability with numerous options that ensure precise performance
- Clear, easy-view tube
- Robust construction

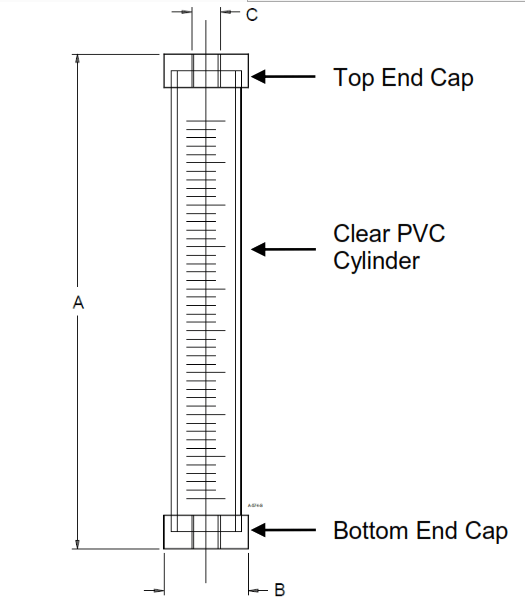

Dimensional drawings
Reference Dimensions
| Capacity | Max Flow ▲ | Max Flow ▲ | Scale | Scale ▲ | A | B | C – Size |
|---|---|---|---|---|---|---|---|
| (mL) ◊ | (USgph) | (lph) | (mL) | (gph) | cm (in) | cm (in) | Connection |
| 100 | 3.17 | 12 | 1 | 0.1 | 27.9 (11) | 3.8 (1.5) | 1/2" DN15 |
| 200 | 6.34 | 24 | 1 | 0.1 | 48.3 (19) | 3.8 (1.5) | 1/2" DN15 |
| 300 | 9.51 | 36 | 5 | 0.2 | 33.0 (13) | 5.6 (2.2) | 1/2" DN15 |
| 500 | 15.85 | 60 | 5 | 0.2 | 33.0 (13) | 6.4 (2.5) | 3/4" DN20 |
| 1,000 | 31.7 | 120 | 5 | 0.2 | 55.9 (22) | 6.4 (2.5) | 3/4" DN20 |
| 2,000 | 63.4 | 240 | 10 | 1 | 50.8 (20) | 9.4 (3.7) | 1” DN25 |
| 3,000 | 95.1 | 360 | 10 | 1 | 43.2 (17) | 12.5 (4.9) | 1.5” DN40 |
| 4,000 | 126.8 | 480 | 10 | 1 | 94.0 (37) | 9.4 (3.7) | 1” DN25 |
| 5,000 | 158.5 | 600 | 10 | 1 | 71.1 (28) | 12.5 (4.9) | 1.5” DN40 |
| 7,000 | 221.9 | 840 | 10 | 1 | 96.5 (38) | 12.5 (4.9) | 1.5” DN40 |
| 10,000 | 317 | 1200 | 100 | 5 | 63.5 (25) | 17.7 (6.95) | 2” DN50 |
| 15,000 | 475.5 | 1800 | 100 | 5 | 94.0 (36) | 17.7 (6.95) | 2” DN50 |
| 20,000 | 634 | 2400 | 100 | 5 | 119.4 (47) | 17.7 (6.95) | 2” DN50 |
| 30,000 | 952 | 3600 | 200 | 10 | 165.1 (65)* | 24.1 (9.5)* | 4” DN100 |
| 40,000 | 1,268.00 | 4800 | 200 | 10 | 196.9 (77.5)* | 24.1 (9.5)* | 4” DN100 |
