Headline

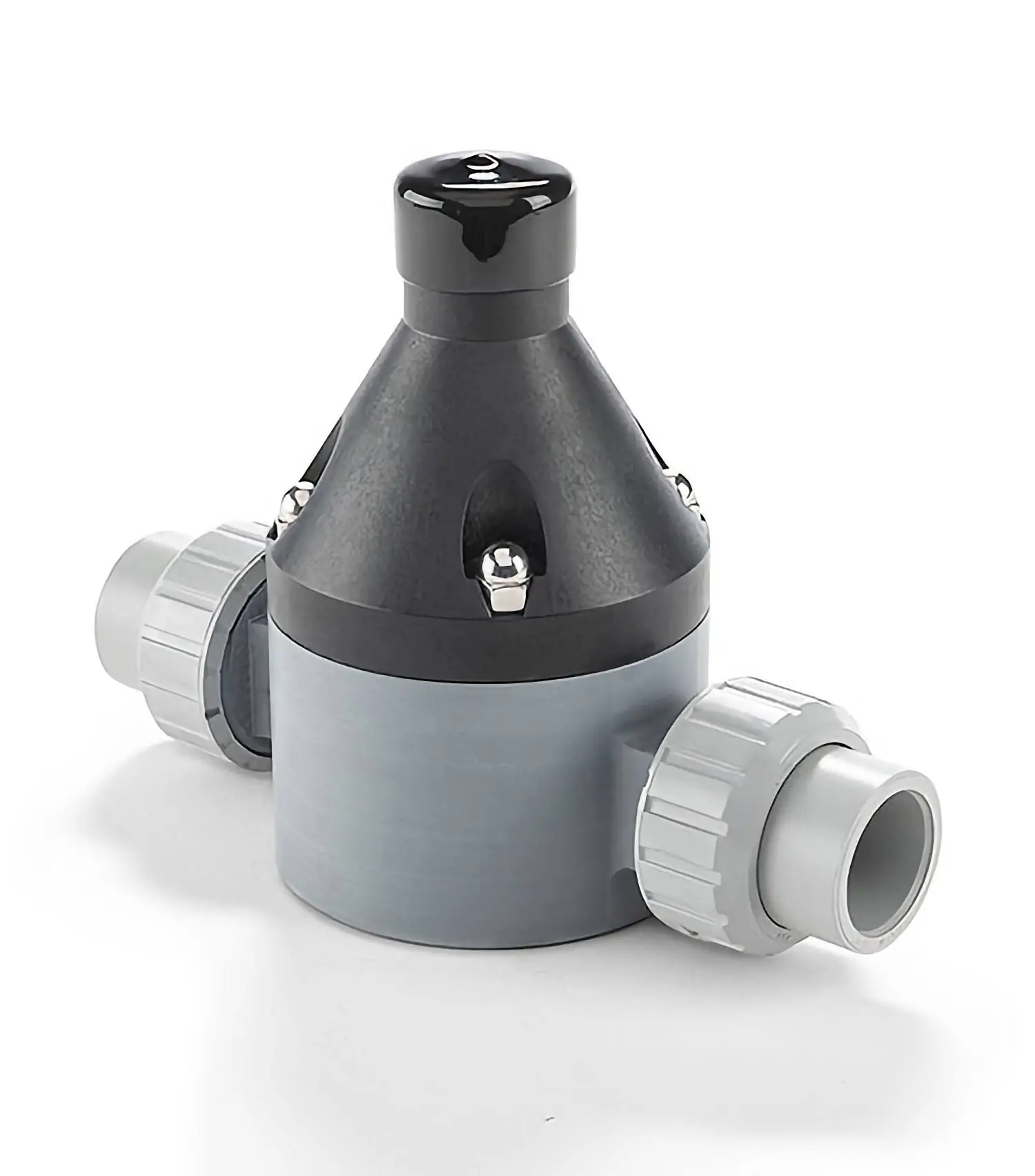

Unibody Back Pressure Valves
Griffco's new Unibody back pressure valve is the latest innovation to ensure leak-free connections and operation. This new design allows flexibility of changing connection types, provides ease of maintenance, and eliminates additional system components (extra unions) saving time and money. As with all of the Griffco designs, the chemical feed system is safeguarded by applying a continuous back pressure to the chemical feed pump, while also acting as an anti-siphon valve. This new construction ensures increased leak-free reliability in the rigorous service of municipal and industrial applications.
Features & Benefits
Product Features & Benefits
Construction & Design
- Solid, robust, single-piece machined construction
- No seals or glued connections
- Union style connections
- Molded Noryl top with integral hardware locking
- Vulcanized composite PTFE/EPDM diaphragm
- Tamper-resistant adjustment screw
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Pressure | 250 psi (17 bar) |
| Valve Sizes | 1/2" to 1" (DN 15 to DN 25) |
| Pressure Ratings | 2 optional (springs) |
| Material Options | PVC, CPVC |
Key Features
- Anti-siphon function
- Multiple diaphragm material options
- Compact size for OEM applications
- High reliability at affordable price
- Long diaphragm life
Warranty & Support
- Two year warranty
Exploded view
