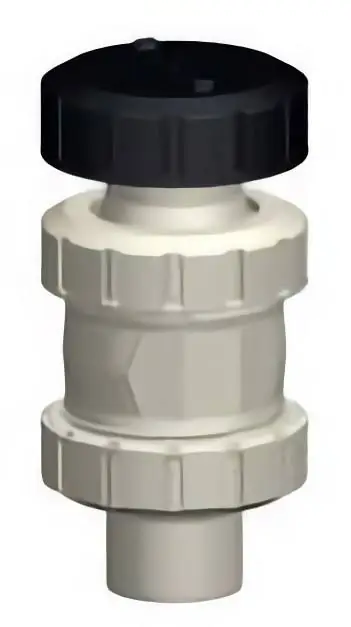

167.595.054 | 32 - 595 Vacuum Breaker Valve IR/Butt Fusion - PP/FKM

Pictures may not be actual SKU

Manual
Cut sheet
Materials of Construction

167.595.054 | 32 - 595 Vacuum Breaker Valve IR/Butt Fusion - PP/FKM

Name: 167.595.054 | 32 - 595 Vacuum Breaker Valve IR/Butt Fusion - PP/FKM
Brand: Georg Fischer
SKU: GFS-167595054
Price: 546 USD
Availability: InStock

GFS | Georg Fischer

MAV | Manually Actuated Valves

595 | Vacuum Breaker Valves

GFS-167595054

Description

GF Valve's 167.595.054 Type 595 PP Vacuum Breaker Valves 32 mm - IR/Butt Fusion with PP/FKM materials. GFPS Item: 167595054 (A)

Key Specs

Mechanical Connections

32 mm IR/Butt Fusion

Housing Material

PP | Polypropylene

Seal Material

FKM | Viton

Base Model

Series

MAV | Manually Actuated Valves

Type

595 | Vent/Vacuum Breaker Valve

Configuration

Body Material

PP | PROGEF Standard PP

Seal Material

FKM | Viton

Size

mm | Metric

Available to Order

Ships from PA - TX

Typically ships within [ 12 ] days

24/7 Sales & Support 484-544-0506

$546.00 Configured Price

Quantity:

− +

Overview
Tech Specs
Materials
Support Docs
Dimensions
SKU List

Headline

Type 595 Vacuum Breaker Valve

The Type 595 Vacuum Breaker Valve is designed to be used in either piping system or on tanks. The spring loaded float will crack from the seal, breaking the vacuum and allowing air into the system when sufficient negative pressure has been reached at the valve.

Features & Benefits

Optional Features & Materials

Spring Options

Spring for 595: Nimonic 90, Halar coated stainless steel

Connection & Cleaning

End Connection: Alternatives available upon request
Cleaned: Silicone free/oil free

Float Materials

Float Material for 591: Hollow PVDF

Chemical Compatibility

Dimensional drawings

Drawing A

Alternate configurations

SKU	Description	List price	-
GFS-150595204	150.595.204 \| 32 - 595 Vacuum Breaker Valve PE Long Spigot SDR11 - ABS/EPDM	$576.50	GFS-150595204 Detail
GFS-150595205	150.595.205 \| 40 - 595 Vacuum Breaker Valve PE Long Spigot SDR11 - ABS/EPDM	$695.10	GFS-150595205 Detail
GFS-150595206	150.595.206 \| 50 - 595 Vacuum Breaker Valve PE Long Spigot SDR11 - ABS/EPDM	$1,070.00	GFS-150595206 Detail
GFS-150595207	150.595.207 \| 63 - 595 Vacuum Breaker Valve PE Long Spigot SDR11 - ABS/EPDM	$1,512.00	GFS-150595207 Detail
GFS-150595208	150.595.208 \| 75 - 595 Vacuum Breaker Valve PE Long Spigot SDR11 - ABS/EPDM	$2,465.40	GFS-150595208 Detail
GFS-150595209	150.595.209 \| 90 - 595 Vacuum Breaker Valve PE Long Spigot SDR11 - ABS/EPDM	$3,079.70	GFS-150595209 Detail
GFS-150595210	150.595.210 \| 110 - 595 Vacuum Breaker Valve PE Long Spigot SDR11 - ABS/EPDM	$3,685.50	GFS-150595210 Detail
GFS-161595101	161.595.101 \| 3/8 - 595 Vacuum Breaker Valve Socket/Threaded NPT - PVC/EPDM	$144.00	GFS-161595101 Detail
GFS-161595102	161.595.102 \| 1/2 - 595 Vacuum Breaker Valve Socket/Threaded NPT - PVC/EPDM	$144.00	GFS-161595102 Detail
GFS-161595103	161.595.103 \| 3/4 - 595 Vacuum Breaker Valve Socket/Threaded NPT - PVC/EPDM	$189.90	GFS-161595103 Detail
GFS-161595104	161.595.104 \| 1 - 595 Vacuum Breaker Valve Socket/Threaded NPT - PVC/EPDM	$233.50	GFS-161595104 Detail
GFS-161595105	161.595.105 \| 1-1/4 - 595 Vacuum Breaker Valve Socket/Threaded NPT - PVC/EPDM	$281.50	GFS-161595105 Detail
GFS-161595106	161.595.106 \| 1-1/2 - 595 Vacuum Breaker Valve Socket/Threaded NPT - PVC/EPDM	$437.10	GFS-161595106 Detail
GFS-161595107	161.595.107 \| 2 - 595 Vacuum Breaker Valve Socket/Threaded NPT - PVC/EPDM	$622.60	GFS-161595107 Detail
GFS-161595108	161.595.108 \| 2-1/2 - 595 Vacuum Breaker Valve Socket/Threaded NPT - PVC/EPDM	$998.90	GFS-161595108 Detail
