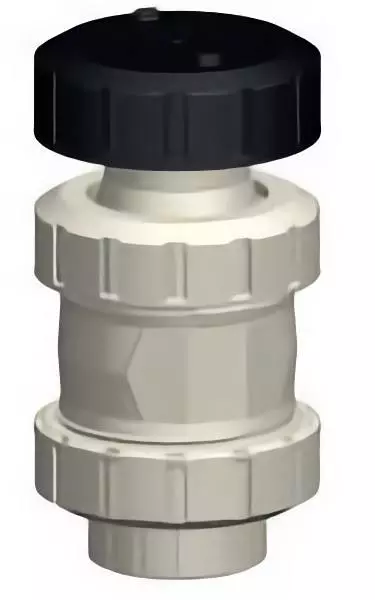

167.591.003 | 25 - 591 Vent/Vacuum Breaker Valve Socket Fusion - PP/EPDM

Pictures may not be actual SKU

Manual
Cut sheet
Materials of Construction

167.591.003 | 25 - 591 Vent/Vacuum Breaker Valve Socket Fusion - PP/EPDM

Name: 167.591.003 | 25 - 591 Vent/Vacuum Breaker Valve Socket Fusion - PP/EPDM
Brand: Georg Fischer
SKU: GFS-167591003
Price: 318.2 USD
Availability: InStock

GFS | Georg Fischer

MAV | Manually Actuated Valves

591 | Ventilating and Vacuum Braker Valves

GFS-167591003

Description

GF Valve's 167.591.003 Type 591 PP Vent and Vacuum Breaker Valves 25 mm - Socket Fusion with PP/EPDM materials. GFPS Item: 167591003 (A - 40% RS)

Key Specs

Mechanical Connections

25 mm Socket Fusion

Housing Material

PP | Polypropylene

Seal Material

EPDM | Rubber

Base Model

Series

MAV | Manually Actuated Valves

Type

591 | Vent/Vacuum Breaker Valve

Configuration

Body Material

PP | PROGEF Standard PP

Seal Material

EPDM | Rubber

Size

mm | Metric

Available to Order

Ships from PA - TX

Typically ships within [ 12 ] days

24/7 Sales & Support 484-544-0506

$318.20 Configured Price

Quantity:

− +

Overview
Tech Specs
Materials
Support Docs
Dimensions
SKU List

Headline

Type 591 Ventilating Valve

The Type 591 Valve is designed for filling and draining applications at piping system high points or tanks. The float allows air out of a filling system during start up, sealing when the media hits the float and breaks the vacuum to allow a system to drain.

Features & Benefits

Optional Features & Materials

Spring Options

Spring for 595: Nimonic 90, Halar coated stainless steel

Connection & Cleaning

End Connection: Alternatives available upon request
Cleaned: Silicone free/oil free

Float Materials

Float Material for 591: Hollow PVDF

Chemical Compatibility

Dimensional drawings

Drawing A

Alternate configurations

SKU	Description	List price	-
GFS-150591204	150.591.204 \| 32 - 591 Vent/Vacuum Breaker Valve PE Long Spigot SDR11 - ABS/EPDM	$513.50	GFS-150591204 Detail
GFS-150591205	150.591.205 \| 40 - 591 Vent/Vacuum Breaker Valve PE Long Spigot SDR11 - ABS/EPDM	$619.50	GFS-150591205 Detail
GFS-150591206	150.591.206 \| 50 - 591 Vent/Vacuum Breaker Valve PE Long Spigot SDR11 - ABS/EPDM	$949.20	GFS-150591206 Detail
GFS-150591207	150.591.207 \| 63 - 591 Vent/Vacuum Breaker Valve PE Long Spigot SDR11 - ABS/EPDM	$1,339.80	GFS-150591207 Detail
GFS-150591208	150.591.208 \| 75 - 591 Vent/Vacuum Breaker Valve PE Long Spigot SDR11 - ABS/EPDM	$2,192.40	GFS-150591208 Detail
GFS-150591209	150.591.209 \| 90 - 591 Vent/Vacuum Breaker Valve PE Long Spigot SDR11 - ABS/EPDM	$2,738.40	GFS-150591209 Detail
GFS-150591210	150.591.210 \| 110 - 591 Vent/Vacuum Breaker Valve PE Long Spigot SDR11 - ABS/EPDM	$3,277.10	GFS-150591210 Detail
GFS-161591101	161.591.101 \| 3/8 - 591 Vent/Vacuum Breaker Valve Socket/Threaded NPT - PVC/EPDM	$120.60	GFS-161591101 Detail
GFS-161591102	161.591.102 \| 1/2 - 591 Vent/Vacuum Breaker Valve Socket/Threaded NPT - PVC/EPDM	$120.60	GFS-161591102 Detail
GFS-161591103	161.591.103 \| 3/4 - 591 Vent/Vacuum Breaker Valve Socket/Threaded NPT - PVC/EPDM	$157.90	GFS-161591103 Detail
GFS-161591104	161.591.104 \| 1 - 591 Vent/Vacuum Breaker Valve Socket/Threaded NPT - PVC/EPDM	$193.10	GFS-161591104 Detail
GFS-161591105	161.591.105 \| 1-1/4 - 591 Vent/Vacuum Breaker Valve Socket/Threaded NPT - PVC/EPDM	$234.60	GFS-161591105 Detail
GFS-161591106	161.591.106 \| 1-1/2 - 591 Vent/Vacuum Breaker Valve Socket/Threaded NPT - PVC/EPDM	$362.50	GFS-161591106 Detail
GFS-161591107	161.591.107 \| 2 - 591 Vent/Vacuum Breaker Valve Socket/Threaded NPT - PVC/EPDM	$519.20	GFS-161591107 Detail
GFS-161591108	161.591.108 \| 2-1/2 - 591 Vent/Vacuum Breaker Valve Socket/Threaded NPT - PVC/EPDM	$833.70	GFS-161591108 Detail
