Headline
Type 567 Wafer Style Butterfly Valve
The Type 567 utilizes the most unique thermoplastic butterfly valve design on the market today. The double eccentric design allows for reduced required operating torque, reduced seal component wear and reduced risk of seal failure. The unique inner/outer body design ensures that all wetted thermoplastic components are of like material and the variety of seal/body martial combinations makes it suitable for most industrial applications.
Features & Benefits
Optional Features
- Actuation: Electric, pneumatic
- Limit Switches: Mechanical, inductive
- Handle: Find adjustment lever (1º)
- Stem Extension: Two piece stainless steel
- Shaft: Titanium, Hastelloy-C
- Operation: Chain operator, square operating nut
- Gear Operator: Stainless steel housing
- Hardware: Alternatives available upon request
- Cleaned: Silicone free/oil free
Additional Notes
General
- Size: 2”–12”
- Outer Body: Glass-filled PP
- Material: PVC, CPVC, PROGEF® Standard PP, ABS, SYGEF® Standard PVDF
- Seals: EPDM, FPM, PTFE/FPM
- Stem: 316 stainless steel
- Operation: Bare shaft, lever, gear
- Connection: Both ANSI 150 and DIN 2501
- Standard Pack Quantity: 1 valve
Key Certifications
- NSF 61: PVC and CPVC
- FDA CFR 21 177.1520: PP and PVDF
- FDA CFR 21 177.2600: EPDM and FPM
- FDA CFR 21 177.1550: PTFE
- USP Class VI (physiological non-toxic): EPDM, FPM, PTFE, PP and PVDF

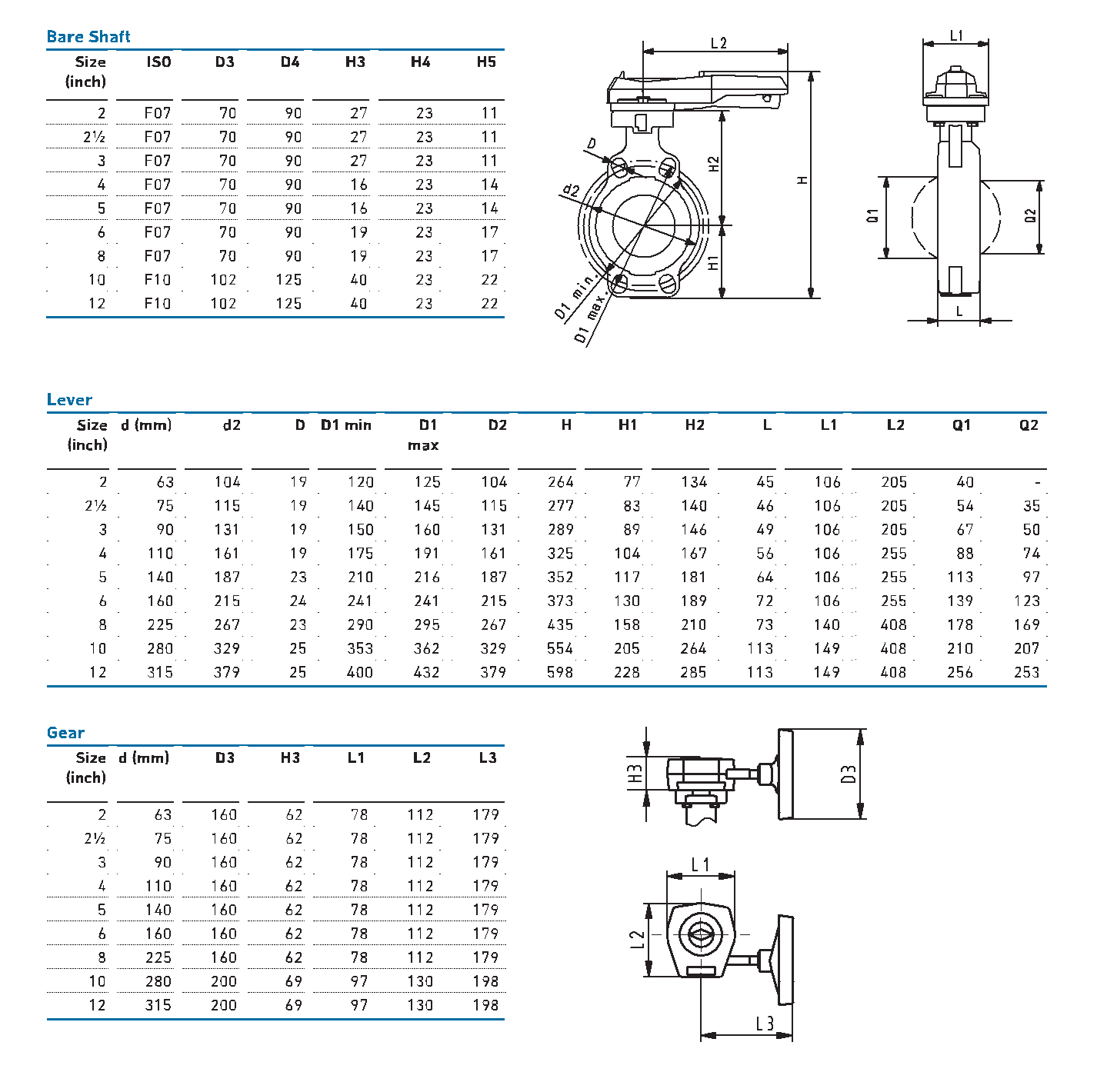

Dimensional drawings
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| GFS-138567114 | 138.567.114 | 4 - 567 Insulated Wafer Butterfly Valve Lever - ABS/EPDM | $2,086.00 | |
| GFS-138567117 | 138.567.117 | 6 - 567 Insulated Wafer Butterfly Valve Lever - ABS/EPDM | $2,979.00 | |
| GFS-138567120 | 138.567.120 | 8 - 567 Insulated Wafer Butterfly Valve Lever - ABS/EPDM | $4,737.00 | |
| GFS-161567002 | 161.567.002 | 2 - 567 Wafer Butterfly Valve Lever - PVC/EPDM | $322.00 | |
| GFS-161567003 | 161.567.003 | 2-1/2 - 567 Wafer Butterfly Valve Lever - PVC/EPDM | $337.00 | |
| GFS-161567004 | 161.567.004 | 3 - 567 Wafer Butterfly Valve Lever - PVC/EPDM | $357.00 | |
| GFS-161567005 | 161.567.005 | 4 - 567 Wafer Butterfly Valve Lever - PVC/EPDM | $386.00 | |
| GFS-161567006 | 161.567.006 | 5 - 567 Wafer Butterfly Valve Lever - PVC/EPDM | $558.00 | |
| GFS-161567007 | 161.567.007 | 6 - 567 Wafer Butterfly Valve Lever - PVC/EPDM | $558.00 | |
| GFS-161567008 | 161.567.008 | 8 - 567 Wafer Butterfly Valve Lever - PVC/EPDM | $832.00 | |
| GFS-161567009 | 161.567.009 | 10 - 567 Wafer Butterfly Valve Lever - PVC/EPDM | $2,580.00 | |
| GFS-161567010 | 161.567.010 | 12 - 567 Wafer Butterfly Valve Lever - PVC/EPDM | $3,526.00 | |
| GFS-161567022 | 161.567.022 | 2 - 567 Wafer Butterfly Valve Lever - PVC/FKM | $508.00 | |
| GFS-161567023 | 161.567.023 | 2-1/2 - 567 Wafer Butterfly Valve Lever - PVC/FKM | $520.00 | |
| GFS-161567024 | 161.567.024 | 3 - 567 Wafer Butterfly Valve Lever - PVC/FKM | $539.00 |
