Headline

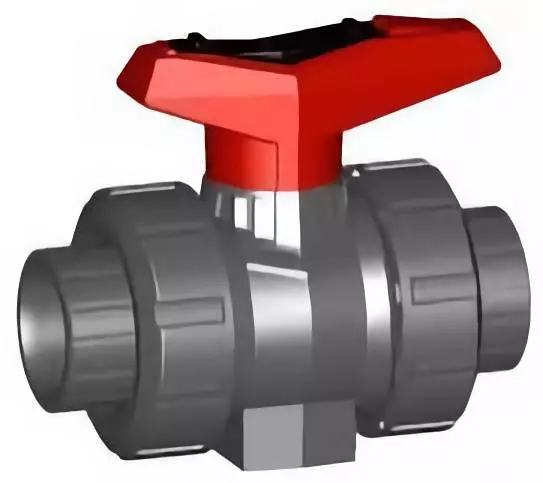

Type 546 Pro Ball Valve
The Type 546 Pro is the flagship valve of Georg Fischer Piping Systems and offers a broad range of material and accessory options to suit most industrial ball valve applications. The unique design carriers over several popular features from its predecessor such as the external stem break point and a reverse threaded seat carrier while incorporating new features such as a trackable laser engraved data matrix and a lockable handle.
Features & Benefits
Optional Features
Actuation & Control
- Actuation: Electric, pneumatic
- Limit Switches: Mechanical, inductive
- Universal Adapter Kit: ISO mount for actuation
Mechanical Components
- Handle: Lockable handle, handle extension
- Mounting pad: Additional mounting option for valve base
- Control Ball: For throttling applications
- Vented Ball: For sodium hypochlorite use
Materials & Connections
- Seals: Alternative materials available upon request
- Seat: PVDF
- End Connection: Alternatives available upon request
- Cleaned: Silicone free/oil free
Chemical Compatibility
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| GFS-138546108 | 138.546.108 | 32 - 546 Insulated Ball Valve PE Long Spigot SDR11 - ABS/EPDM | $268.80 | |
| GFS-138546109 | 138.546.109 | 40 - 546 Insulated Ball Valve PE Long Spigot SDR11 - ABS/EPDM | $356.00 | |
| GFS-138546110 | 138.546.110 | 50 - 546 Insulated Ball Valve PE Long Spigot SDR11 - ABS/EPDM | $402.20 | |
| GFS-138546111 | 138.546.111 | 63 - 546 Insulated Ball Valve PE Long Spigot SDR11 - ABS/EPDM | $537.60 | |
| GFS-138546112 | 138.546.112 | 75 - 546 Insulated Ball Valve PE Long Spigot SDR11 - ABS/EPDM | $1,098.30 | |
| GFS-138546113 | 138.546.113 | 90 - 546 Insulated Ball Valve PE Long Spigot SDR11 - ABS/EPDM | $1,514.10 | |
| GFS-150546149 | 150.546.149 | 3 - 546 Ball Valve Threaded NPT - CPVC/EPDM | $2,046.80 | |
| GFS-150546150 | 150.546.150 | 4 - 546 Ball Valve Threaded NPT - CPVC/EPDM | $2,345.20 | |
| GFS-150546348 | 150.546.348 | 2-1/2 - 546 Ball Valve Threaded NPT - CPVC/EPDM | $1,724.90 | |
| GFS-150546358 | 150.546.358 | 2-1/2 - 546 Ball Valve Threaded NPT - CPVC/FKM | $1,880.50 | |
| GFS-150546359 | 150.546.359 | 3 - 546 Ball Valve Threaded NPT - CPVC/FKM | $2,266.40 | |
| GFS-150546360 | 150.546.360 | 4 - 546 Ball Valve Threaded NPT - CPVC/FKM | $2,609.70 | |
| GFS-151546342 | 151.546.342 | 1/2 - 546 Ball Valve Vented Socket/Threaded NPT - PVC/EPDM | $150.40 | |
| GFS-151546343 | 151.546.343 | 3/4 - 546 Ball Valve Vented Socket/Threaded NPT - PVC/EPDM | $171.70 | |
| GFS-151546344 | 151.546.344 | 1 - 546 Ball Valve Vented Socket/Threaded NPT - PVC/EPDM | $193.10 |
