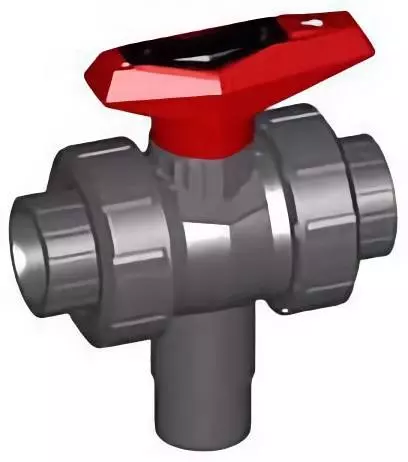

150.543.662 | 1/2 - 543 3-way Ball Valve Vertical L-Port Socket - PVC/EPDM

Name: 150.543.662 | 1/2 - 543 3-way Ball Valve Vertical L-Port Socket - PVC/EPDM
Brand: Georg Fischer
SKU: GFS-150543662
Price: 151.4 USD
Availability: InStock

GFS | Georg Fischer

MAV | Manually Actuated Valves

543 | 3-Way Ball Valves

GFS-150543662

Description

GF Valve's 150.543.662 Type 543 PVC Vertical 3-way Ball Valves 1/2 in - Socket Union with PVC/EPDM materials. GFPS Item: 150543662 (A)

Key Specs

Mechanical Connections

1/2 in Socket Union

Housing Material

PVC | PVC Plastic

Seal Material

EPDM | Rubber

Base Model

Series

MAV | Manually Actuated Valves

Type

543 | 3-Way Ball Valve Vertical and Horizontal

Configuration

Body Material

PVC | PVC Plastic

Seal Material

EPDM | Rubber

Size

1/2 | in

Available to Order

Ships from PA - TX

Typically ships within [ 12 ] days

24/7 Sales & Support 484-544-0506

$151.40 Configured Price

Quantity:

− +

Overview
Tech Specs
Materials
Support Docs
Dimensions
SKU List

Headline

Type 543 3-way Ball Valve

The valve for all mixing and diverting processes in your application. The Ball Valve Type 543 is available as a horizontal and vertical version. The horizontal valve can be ordered with L-Port or T-Port ball. The vertical valve comes in the L-Port configuration or with an optional diverter ball.

Features & Benefits

Optional Features

Actuation & Control

Actuation: Electric, pneumatic
Limit Switches: Mechanical, inductive
Stop: 90 degree, 180 degree turn limiter
Universal Adapter Kit: ISO mount for actuation

Handling & Mounting

Handle: Lockable handle, handle extension
Mounting pad: Additional mounting option for valve base

Materials & Connections

Seals: Alternative materials available upon request
Seat: PVDF
End Connection: Alternatives available upon request
Cleaned: Silicone free/oil free

Chemical Compatibility

Dimensional drawings

Drawing A
Drawing B

Alternate configurations

SKU	Description	List price	-
GFS-150543661	150.543.661 \| 3/8 - 543 3-way Ball Valve Vertical L-Port Socket - PVC/EPDM	$149.30	GFS-150543661 Detail
GFS-150543663	150.543.663 \| 3/4 - 543 3-way Ball Valve Vertical L-Port Socket - PVC/EPDM	$178.10	GFS-150543663 Detail
GFS-150543664	150.543.664 \| 1 - 543 3-way Ball Valve Vertical L-Port Socket - PVC/EPDM	$218.60	GFS-150543664 Detail
GFS-150543665	150.543.665 \| 1-1/4 - 543 3-way Ball Valve Vertical L-Port Socket - PVC/EPDM	$261.20	GFS-150543665 Detail
GFS-150543666	150.543.666 \| 1-1/2 - 543 3-way Ball Valve Vertical L-Port Socket - PVC/EPDM	$299.70	GFS-150543666 Detail
GFS-150543667	150.543.667 \| 2 - 543 3-way Ball Valve Vertical L-Port Socket - PVC/EPDM	$376.40	GFS-150543667 Detail
GFS-150543671	150.543.671 \| 3/8 - 543 3-way Ball Valve Vertical L-Port Socket - PVC/FKM	$168.60	GFS-150543671 Detail
GFS-150543672	150.543.672 \| 1/2 - 543 3-way Ball Valve Vertical L-Port Socket - PVC/FKM	$169.60	GFS-150543672 Detail
GFS-150543673	150.543.673 \| 3/4 - 543 3-way Ball Valve Vertical L-Port Socket - PVC/FKM	$194.10	GFS-150543673 Detail
GFS-150543674	150.543.674 \| 1 - 543 3-way Ball Valve Vertical L-Port Socket - PVC/FKM	$244.20	GFS-150543674 Detail
GFS-150543675	150.543.675 \| 1-1/4 - 543 3-way Ball Valve Vertical L-Port Socket - PVC/FKM	$290.00	GFS-150543675 Detail
GFS-150543676	150.543.676 \| 1-1/2 - 543 3-way Ball Valve Vertical L-Port Socket - PVC/FKM	$335.80	GFS-150543676 Detail
GFS-150543677	150.543.677 \| 2 - 543 3-way Ball Valve Vertical L-Port Socket - PVC/FKM	$432.90	GFS-150543677 Detail
GFS-161543081	161.543.081 \| 3/8 - 543 3-way Ball Valve Horizontal L-Port Socket - PVC/EPDM	$150.40	GFS-161543081 Detail
GFS-161543082	161.543.082 \| 1/2 - 543 3-way Ball Valve Horizontal L-Port Socket - PVC/EPDM	$151.40	GFS-161543082 Detail
