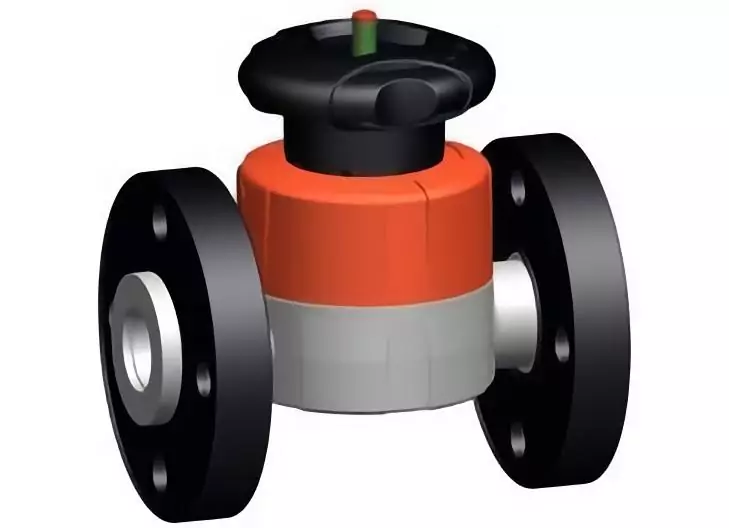

Pictures may not be actual SKU

167.317.024 | 3 - 317 Diaphragm Valve Flanged - PP/EPDM

Name: 167.317.024 | 3 - 317 Diaphragm Valve Flanged - PP/EPDM
Brand: Georg Fischer
SKU: GFS-167317024
Price: 1490 USD
Availability: InStock

GFS | Georg Fischer

MAV | Manually Actuated Valves

317 | ANSI Flanged Diaphragm Valves (2.5" - 6")

GFS-167317024

Description

GF Valve's 167.317.024 PP Diaphragm Valves 3 in - Flanged with PP/EPDM materials. GFPS Item: 167317024 (A - NC/NR)

Key Specs

Mechanical Connections

3 in Flanged

Housing Material

PP | Polypropylene

Seal Material

EPDM | Rubber

Base Model

Series

MAV | Manually Actuated Valves

Type

317 | Flanged Diaphragm Valve

Configuration

Body Material

PP | PROGEF Standard PP

Seal Material

EPDM | Rubber

Size

3 | in

Available to Order

Ships from PA - TX

Typically ships within [ 12 ] days

24/7 Sales & Support 484-544-0506

$1,490.00 Configured Price

Quantity:

− +

Overview
Tech Specs
Materials
Support Docs
Dimensions
SKU List

Headline

Type 317 Diaphragm Valve

The Type 317 diaphragm valve family shall be an ANSI B16.5 150 lb flanged connection. All Type 317 diaphragm valves shall be bidirectional. All fasteners securing bonnet to body connection shall be stainless steel. All valves shall have threaded stainless steel inserts for mounting. The stroke shall be indicated by a graduated indicator. All valves shall be tested in accordance to ISO9393 and designed to ISO16138 standards. All valves shall be manufactured under ISO9001 for Quality and ISO14001 for Environmental Management. Following assembly, every valve shall be tested and certified bubble tight exceeding Class VI standards.

Features & Benefits

Technical Specifications

Standard Configuration

Material: ABS
Actuation Type: Pneumatic
Cleaning Standard: Silicone/oil free

Connection Options

End Connection Types:
- ISO/DIN flanged
- Fusion socket union
- Fusion spigot union

Control & Safety

Limit Switches: Inductive
Hardware: Alternatives available upon request

Chemical Compatibility

Dimensional drawings

Drawing A

Alternate configurations

SKU	Description	List price	-
GFS-161317024	161.317.024 \| 3 - 317 Diaphragm Valve Flanged - PVC/EPDM	$1,284.60	GFS-161317024 Detail
GFS-161317025	161.317.025 \| 4 - 317 Diaphragm Valve Flanged - PVC/EPDM	$1,790.90	GFS-161317025 Detail
GFS-161317027	161.317.027 \| 6 - 317 Diaphragm Valve Flanged - PVC/EPDM	$4,593.50	GFS-161317027 Detail
GFS-161317039	161.317.039 \| 3 - 317 Diaphragm Valve Flanged - PVC/PTFE	$2,004.10	GFS-161317039 Detail
GFS-161317040	161.317.040 \| 4 - 317 Diaphragm Valve Flanged - PVC/PTFE	$2,824.90	GFS-161317040 Detail
GFS-161317042	161.317.042 \| 6 - 317 Diaphragm Valve Flanged - PVC/PTFE	$7,239.30	GFS-161317042 Detail
GFS-161317069	161.317.069 \| 3 - 317 Diaphragm Valve Flanged - PVC/FKM	$1,901.80	GFS-161317069 Detail
GFS-161317070	161.317.070 \| 4 - 317 Diaphragm Valve Flanged - PVC/FKM	$2,682.20	GFS-161317070 Detail
GFS-161317072	161.317.072 \| 6 - 317 Diaphragm Valve Flanged - PVC/FKM	$6,876.90	GFS-161317072 Detail
GFS-161317424	161.317.424 \| 3 - 317 Diaphragm Valve Silicone Free Flanged - PVC/EPDM	$1,803.70	GFS-161317424 Detail
GFS-161317425	161.317.425 \| 4 - 317 Diaphragm Valve Silicone Free Flanged - PVC/EPDM	$2,506.30	GFS-161317425 Detail
GFS-161317427	161.317.427 \| 6 - 317 Diaphragm Valve Silicone Free Flanged - PVC/EPDM	$4,925.00	GFS-161317427 Detail
GFS-161317439	161.317.439 \| 3 - 317 Diaphragm Valve Silicone Free Flanged - PVC/PTFE/EPDM	$2,810.10	GFS-161317439 Detail
GFS-161317442	161.317.442 \| 6 - 317 Diaphragm Valve Silicone Free Flanged - PVC/PTFE/EPDM	$9,839.20	GFS-161317442 Detail
GFS-161317470	161.317.470 \| 4 - 317 Diaphragm Valve Silicone Free Flanged - PVC/PTFE/EPDM	$4,172.98	GFS-161317470 Detail
