Headline
Type 303 Angle Seat Check Valve
The design of the Type 303 Angle Seat Check Valve makes it an exceptionally reliable and versatile option for backflow prevention. The ability to service the valve without removing the body from the system simplifies maintenance and the flexibility to be installed in both horizontal and vertical positions allows the Type 303/304 to perform across a wide variety of industrial applications.
Features & Benefits
Key Features
Design & Installation
- Self-closing piston check valve
- For horizontal and vertical use
- Overall length according to EN 588
Maintenance
- Simple maintenance of the check element
- No valve dismantling required for maintenance

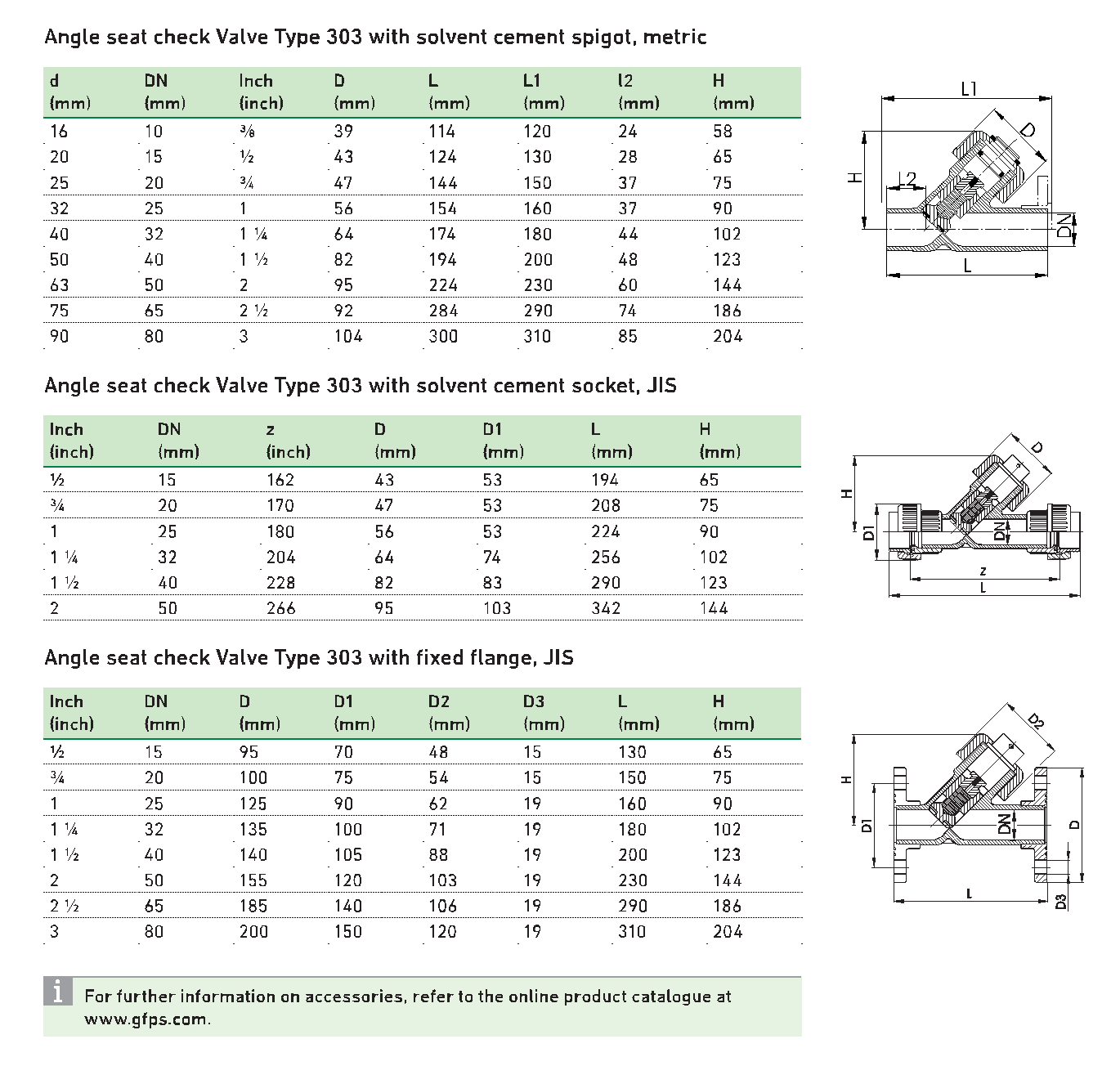

Dimensional drawings
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| GFS-169303006 | 169.303.006 | 20 - 303 Y-Check Valve Spigot - ABS/EPDM | $1,064.00 | |
| GFS-169303007 | 169.303.007 | 25 - 303 Y-Check Valve Spigot - ABS/EPDM | $1,081.80 | |
| GFS-169303008 | 169.303.008 | 32 - 303 Y-Check Valve Spigot - ABS/EPDM | $1,081.80 | |
| GFS-169303009 | 169.303.009 | 40 - 303 Y-Check Valve Spigot - ABS/EPDM | $1,081.80 | |
| GFS-169303010 | 169.303.010 | 50 - 303 Y-Check Valve Spigot - ABS/EPDM | $1,100.90 | |
| GFS-169303011 | 169.303.011 | 63 - 303 Y-Check Valve Spigot - ABS/EPDM | $1,117.40 |
