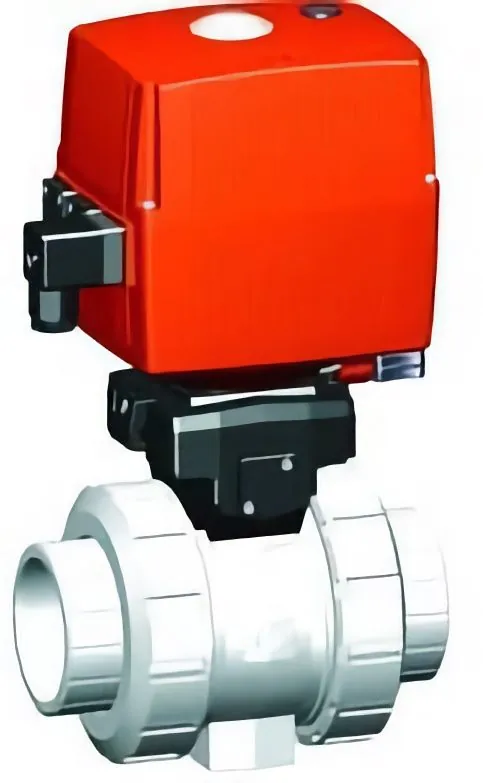

150.181.061 | 110 - 181 EA Ball Valve Socket Fusion 24V w/ MO - PVDF/FKM

Electrically Actuated Ball Valve | Type 181

The Type 181 Ball Valve shall be used in either open/close or modulating applications. The actuator shall be either a Type EA25, EA45 or EA120 depending on valve size. The ball valve shall be true union and utilize a floating ball design. The ball shall be fully molded and full port with two way blocking capability. The stem shall be blowout proof, utilizing a double o-ring seal and a predetermined break point opposite the media side of the stem seals. The seat carrier shall be adjustable and reverse threaded. The valve nut threads shall be of buttress type. Ball seats shall have an elastomeric backing o-ring and all elastomeric seals shall be of like material. ANSI flanged versions shall meet ANSI B16.5 150lb standards. All valves shall be tested in accordance to ISO9393 and designed to ISO16136 standards. All valves shall be manufactured under ISO9001 for Quality and ISO14001 for Environmental Management. Following manual assembly, every valve shall be tested and certified bubble tight exceeding Class VI standards. Following actuated assembly, every valve shall be tested to confirm functionality.

Optional Components & Configurations

Control & Monitoring

• Positioner
  • Current sensing
  • Voltage sensing
• Network Integration
  • Profibus DP
• Smart Module Features
  • Cycle monitoring
  • Cycle counter
  • Cycle extension
  • Motor current monitoring
• Manual Control
  • Local control box loading station

Safety & Backup

• Fail Safe Systems
  • Battery backup
  • Externally powered board

Materials & Construction

• Seals
  • Alternative materials available upon request
• Seat Material
  • PVDF construction
• End Connection
  • Multiple alternatives available upon request
• Ball Configurations
  • Control Ball: For throttling applications (3/8"-2")
  • Vented Ball: For sodium hypochlorite use

Special Processing

• Cleaning Options
  • Silicone free processing
  • Oil free processing
