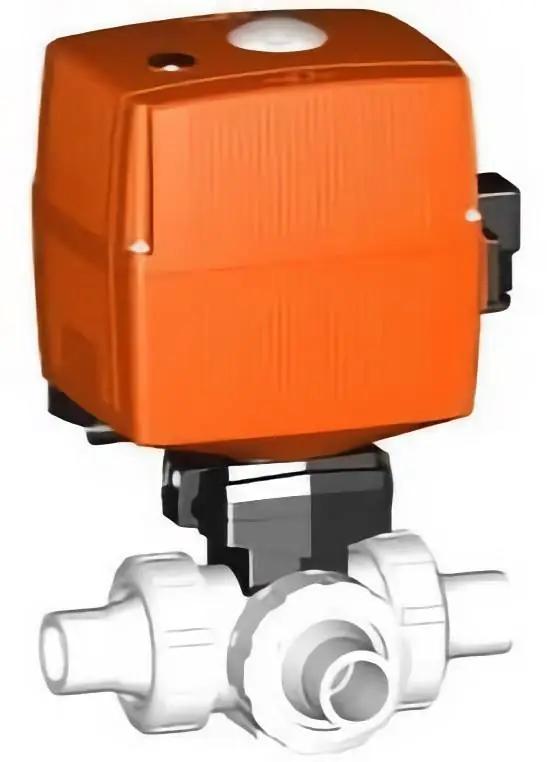

Electrically Actuated 3-way Ball Valves | Type 169
The Type 169 3-way Ball Valve shall be used in either open/close or modulating applications. The actuator shall be a Type EA25. The ball valve shall be true union and utilize a floating ball design. The ball shall be fully molded and full port with two way blocking capability. The stem shall be blowout proof, utilizing a double o-ring seal and a predetermined break point opposite the media side of the stem seals. The seat carrier shall be adjustable and reverse threaded. The valve nut threads shall be of buttress type. Ball seats shall have an elastomeric backing o-ring and all elastomeric seals shall be of like material. ANSI flanged versions shall meet ANSI B16.5 150lb standards. All valves shall be tested in accordance to ISO9393 and designed to ISO16135 standards. All valves shall be manufactured under ISO9001 for Quality and ISO14001 for Environmental Management. Following manual assembly, every valve shall be tested and certified bubble tight exceeding Class VI standards. Following actuated assembly, every valve shall be tested to confirm functionality.
Optional Features
- Positioner: Current, voltage
- Network: Profibus DP
- Fail Safe Return: Battery back up, externally powered board
- Smart Module: Cycle monitoring, cycle counter, cycle extension, motor current monitoring
- Manual Loading Station: Local control box
- Seals: Alternative materials available upon request
- Seat: PVDF
- End Connection: Alternatives available upon request
- Cleaned: Silicone free/oil free
Definition of Valve Type
- Type 169: PVDF horizontal
General
- Size: ⅜”–2”
- Material: PVC, CPVC, PROGEF® Standard PP, ABS, SYGEF® Standard PVDF
- Seat: PTFE
- Seals: EPDM, FPM
- End Connection: Solvent cement socket, threaded, flanged, fusion spigot, fusion socket
- Actuator Housing: Glass-filled PP
- Voltage: 100-230VAC, 24VDC
- Manual Override: Integrated
- Position Indicator: Optical, integrated
Key Valve Certifications
- FDA CFR 21 177.1520: PP and PVDF
- FDA CFR 21 177.2600: EPDM and FPM
- FDA CFR 21 177.1550: PTFE
- USP 25 Class VI (physiological non-toxic): PP and PVDF
| SKU | Description | List price | - |
|---|---|---|---|
| GFS-150169053 | 150.169.053 | 20 - 169 3-way Horizontal L-Port IR/Butt Fusion 100-230V - PVDF/FKM | $2,710.00 | |
| GFS-150169054 | 150.169.054 | 25 - 169 3-way Horizontal L-Port IR/Butt Fusion 100-230V - PVDF/FKM | $2,899.00 | |
| GFS-150169055 | 150.169.055 | 32 - 169 3-way Horizontal L-Port IR/Butt Fusion 100-230V - PVDF/FKM | $3,165.00 | |
| GFS-150169056 | 150.169.056 | 40 - 169 3-way Horizontal L-Port IR/Butt Fusion 100-230V - PVDF/FKM | $3,556.00 | |
| GFS-150169058 | 150.169.058 | 63 - 169 3-way Horizontal L-Port IR/Butt Fusion 100-230V - PVDF/FKM | $4,692.00 | |
| GFS-150169073 | 150.169.073 | 20 - 169 3-way Horizontal T-Port IR/Butt Fusion 100-230V - PVDF/FKM | $2,710.00 | |
| GFS-150169074 | 150.169.074 | 25 - 169 3-way Horizontal T-Port IR/Butt Fusion 100-230V - PVDF/FKM | $2,899.00 | |
| GFS-150169075 | 150.169.075 | 32 - 169 3-way Horizontal T-Port IR/Butt Fusion 100-230V - PVDF/FKM | $3,165.00 | |
| GFS-150169076 | 150.169.076 | 40 - 169 3-way Horizontal T-Port IR/Butt Fusion 100-230V - PVDF/FKM | $3,556.00 | |
| GFS-150169077 | 150.169.077 | 50 - 169 3-way Horizontal T-Port IR/Butt Fusion 100-230V - PVDF/FKM | $3,975.00 | |
| GFS-150169078 | 150.169.078 | 63 - 169 3-way Horizontal T-Port IR/Butt Fusion 100-230V - PVDF/FKM | $4,692.00 | |
| GFS-150169252 | 150.169.252 | 3/8 - 169 3-way Horizontal T-Port Threaded NPT 100-230V - PVDF/FKM | $2,545.00 | |
| GFS-150169253 | 150.169.253 | 1/2 - 169 3-way Horizontal T-Port Threaded NPT 100-230V - PVDF/FKM | $2,545.00 | |
| GFS-150169254 | 150.169.254 | 3/4 - 169 3-way Horizontal T-Port Threaded NPT 100-230V - PVDF/FKM | $2,728.00 | |
| GFS-150169255 | 150.169.255 | 1 - 169 3-way Horizontal T-Port Threaded NPT 100-230V - PVDF/FKM | $2,995.00 |
