150.145.262 | 2 - 145 EA Wafer Butterfly Valve 24V w/ MO - CPVC/FKM

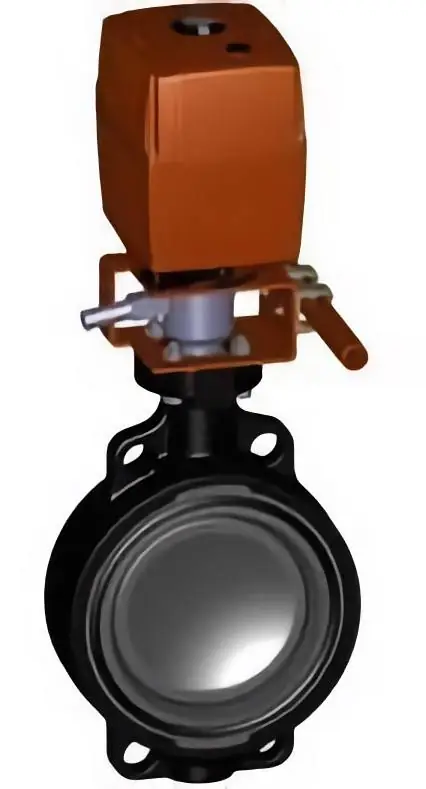

Type 145 Electrically Actuated Wafer Butterfly Valve

The Type 145 Electrically Actuated Butterfly Valve shall be wafer style compatible with both ANSI B16.5 150 lb and DIN 2501 flange patterns. The disk operation shall utilize double eccentric design principles. The shaft shall be non-wetted by a bushing assembly with double O-ring seals and fixed at both ends. The face seal shall be a Q-ring compatible with flat and serrated flange adapters. The face, disk and shaft seals shall operate independently. The wetted body and disk shall be of like materials. Valves shall be rated for bidirectional use. All valves shall be tested in accordance to ISO9393 and designed to ISO16136 standards. All valves shall be manufactured under ISO9001 for Quality and ISO14001 for Environmental Management. Following assembly, every valve shall be tested and certified bubble tight exceeding Class VI standards.

Optional Features

Control & Monitoring

• Positioner
  • Current sensing
  • Voltage sensing
• Network
  • Profibus DP
• Fail Safe Return
  • Battery back up
  • Externally powered board
• Smart Module
  • Cycle monitoring
  • Cycle counter
  • Cycle time extension
  • Motor current monitoring
• Manual Loading Station
  • Local control box

Construction

• Stem Extension
  • Two piece stainless steel
• Shaft
  • Titanium
  • Hastelloy-C
• Hardware
  • Alternatives available upon request
• Cleaned
  • Silicone free
  • Oil free
