Headline

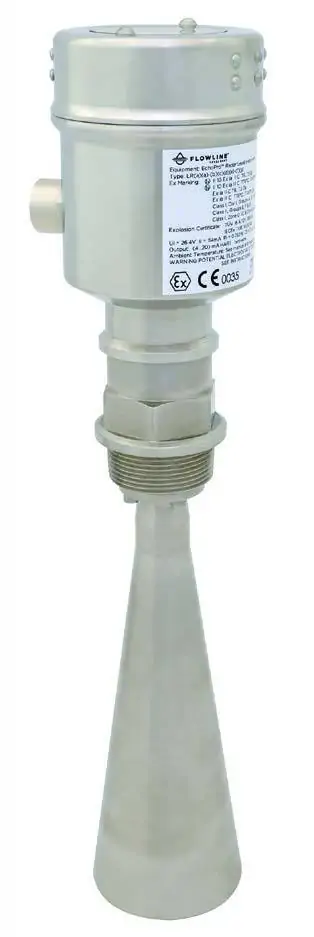

EchoPro LR36 Radar Solids Level Sensor Transmitter
The intrinsically safe 26 GHz. pulse radar transmitter provides continuous level measurement up to 49.2' (15m) with a 4-20 mA analog and HART digital signal output, and is configured via its integral push button display module or HART communicator. The non-contact solids level sensor is intended for dry solid media including aggregates, grains, pellets, powders and building materials. Select this sensor for easy process conditions with minimal dust and installation with an adjustable mounting bracket or gimbal flange. Typical applications include bins, transfer stations and crushers.
Features & Benefits
Key Features
Advanced Monitoring & Control
- LCD display shows level in feet/meters with span bar
- Optional echo signal return curve display mode
- Configuration via push button display or HART communicator
- Recognition, storage and rejection of false echo signals
- Fail-safe diagnostics with selectable outputs
Rugged Construction
- 316L stainless steel antenna and process mount
- IP67 stainless enclosure
- Polycarbonate display window
- Gimbal flange for angle of repose positioning

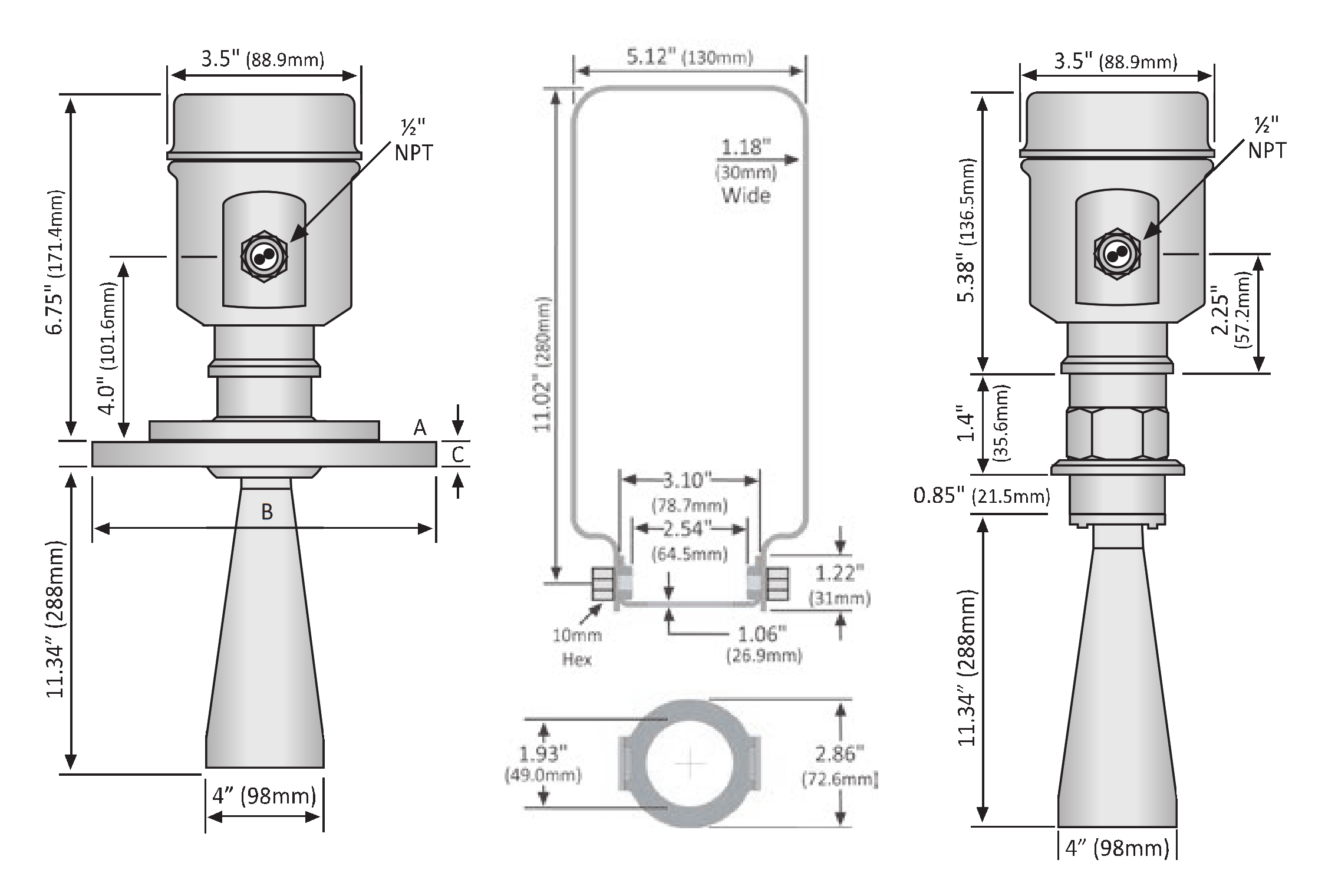

Dimensional drawings
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| FLI-LR3650214000 | LR36-5021-40-00 | 26 GHz. - 4 inch (98mm) Horn - 1-1/2” NPT - 316L | $2,950.00 |
