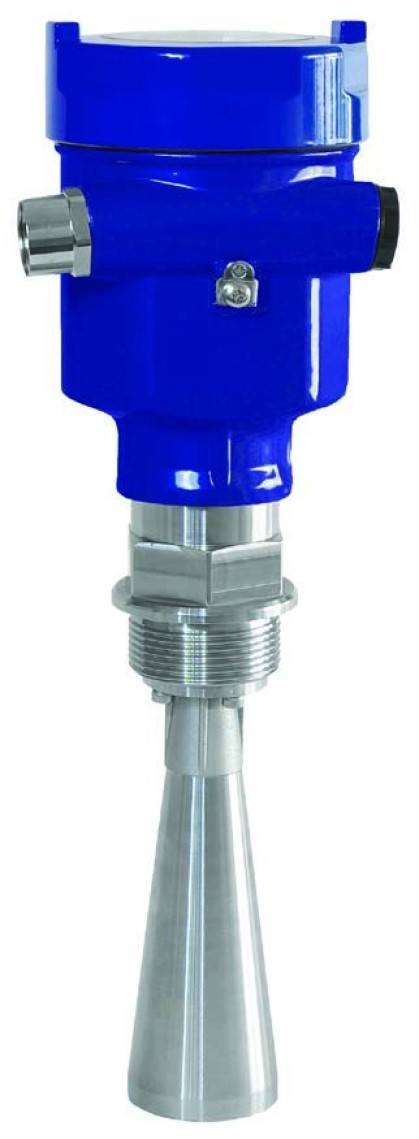

EchoPulse LR15 Radar Liquid Level Sensor Transmitter

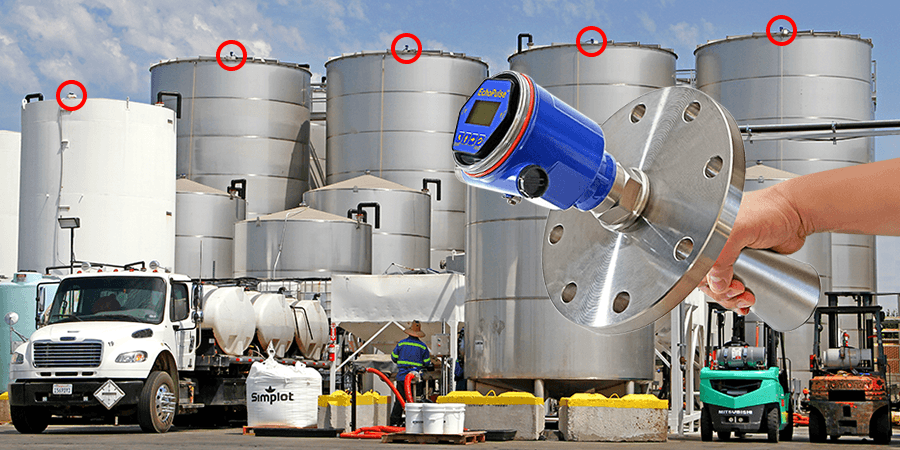

The general purpose 26 GHz. pulse radar level transmitter provides continuous level measurement up to 98.4' (30m) with a 4-20 mA signal output, and is configured via its integral push button display module. The non-contact liquid level sensor is intended for petroleum, water, wastewater and diluted chemical storage or process applications in above or below grade tanks of any material. Select this sensor for challenging process conditions with diluted or non-corrosive media, light surface foam or agitation, higher temperature or pressure, condensation or vapor, and installation in a tank adapter, flange fitting or metal stand-pipe. Typical applications include bulk storage, tanker truck, process tank, waste sump and neutralization tanks.

Key Features

Rugged Construction

• 316L stainless steel antenna and process mount
• IP67 aluminum enclosure with polycarbonate window

Advanced Sensing

• 26 GHz pulse radar technology
• Unaffected by vapor or condensation
• 12" (30cm) dead band enables full tank utilization

Smart Display & Controls

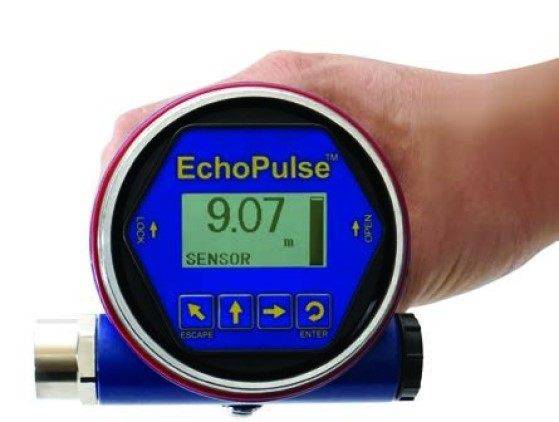

• LCD display shows level in feet/meters
• Percent of span bar indicator
• Simple configuration via push button module
• Optional echo signal return curve display

Intelligent Safety Features

• Fail-safe diagnostics
• Selectable signal fail-safe outputs
• Recognition, storage and rejection of false echo signals
