Headline
EchoPulse LR10 Radar Liquid Level Sensor Transmitter
The general purpose 26 GHz. pulse radar level transmitter provides continuous level measurement up to 32.8' (10m) with a 4-20 mA signal output, and is configured via its integral push button display module. The non-contact liquid level sensor is intended for chemical or water storage applications in above grade metal or reinforced concrete tanks or below grade tanks of any material. Select this sensor for easy process conditions with corrosive media, light agitation, condensation or vapor, and installation in a low-profile tank adapter or flange fitting. Typical applications include chemical bulk storage and tanker trucks.
Features & Benefits
Key Features
Display & Configuration
- LCD display shows level in feet/meters with span bar
- Simple configuration via push button display module
- Optional mode displays echo signal return curve
- Recognition, storage and rejection of false echo returns
Performance
- 26 GHz pulse radar unaffected by vapor or condensation
- 12" (30cm) dead band enables full tank utilization
- Fail-safe diagnostics with selectable signal outputs
Construction
- PTFE encapsulated antenna and mount for corrosive media
- Rugged IP67 aluminum enclosure
- Polycarbonate window protection
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency | 26 GHz |
| Dead Band | 12" (30cm) |
| Protection Rating | IP67 |

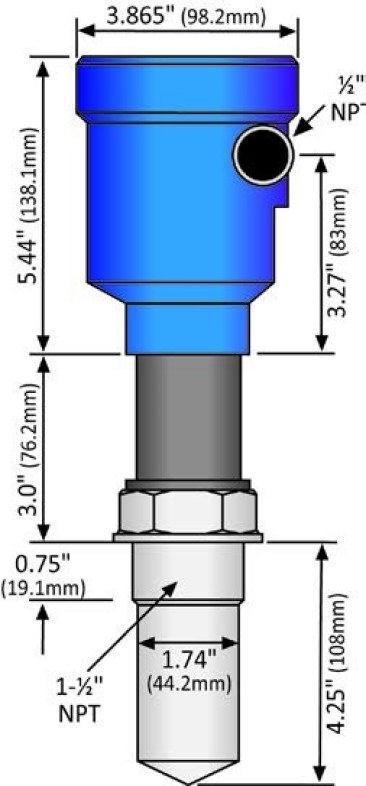

Dimensional drawings
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| FLI-LR100010 | LR10-0010 | 26 GHz. - 1-1/2 inch NPT - PTFE | $1,930.00 |
