Switch-Tek LZ12 Vibration Liquid Level Switch
The general purpose vibration liquid level switch provides high or low liquid level detection of dirty liquids or those with light to medium coating or scaling characteristics with a 1A relay output. Media examples include wastewater, diluted caustic soda and copper sulfate. For optimum performance, the sensor automatically adjusts for coating build up, and if necessary, outputs a proactive maintenance alarm to request cleaning. The submersible PP-Ryton level switch sensor is universally mounted through the tank wall or inside the tank, and connected to a PLC or relay controller.
Features & Benefits
Key Features
Smart Sensing & Control
- Automatic coating adjustment optimizes sensor performance
- Maintenance alarm proactively alerts user if sensor cleaning is required
- 60VA SPST relay selectable NO or NC via power supply wiring polarity
Durable Construction
- Submersible Ryton sensor with polypropylene cable for corrosive liquids
- Compatible with Smart Trak and Switch-Pak installation fittings
- Plastic vibration sensor well suited for corrosive environments
Performance Benefits
- Ideal for coating, scaling or crystalizing liquids
- Sensor measures and adjusts for material build up over time
- Plastic vibration sensor is well suited for use in corrosive liquids

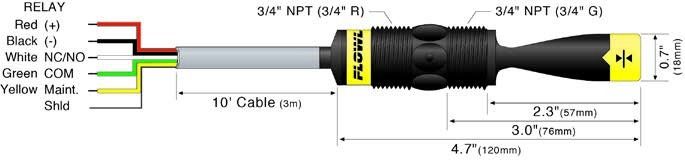

Dimensional drawings
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| FLI-LZ121405 | LZ12-1405 | Ryton - 3/4 inch NPT | $405.00 |
