Switch-Tek LV41 Sump Float Level Switch
The general purpose sump float level switch provides reliable liquid level detection and is perfect for simple liquid level control for filling or draining reservoirs and tanks. The float switch is universally used for pump automation with reliability, cost effectiveness and ease of installation.
Features & Benefits
Key Features
Design & Construction
- Submersible polypropylene body and PVC cable for corrosive liquids
- Compatible with counter weight and cable hanger installations
Operation
- Float switch for automatic start/stop of electrical components
- Dry contact closure selectable NO or NC state via wiring selection
Benefits
Control & Integration
- Float can wire directly to PLC/SCADA or controller
- Ideal for simple liquid level control applications
- Filling reservoirs and tanks
- Draining reservoirs and tanks

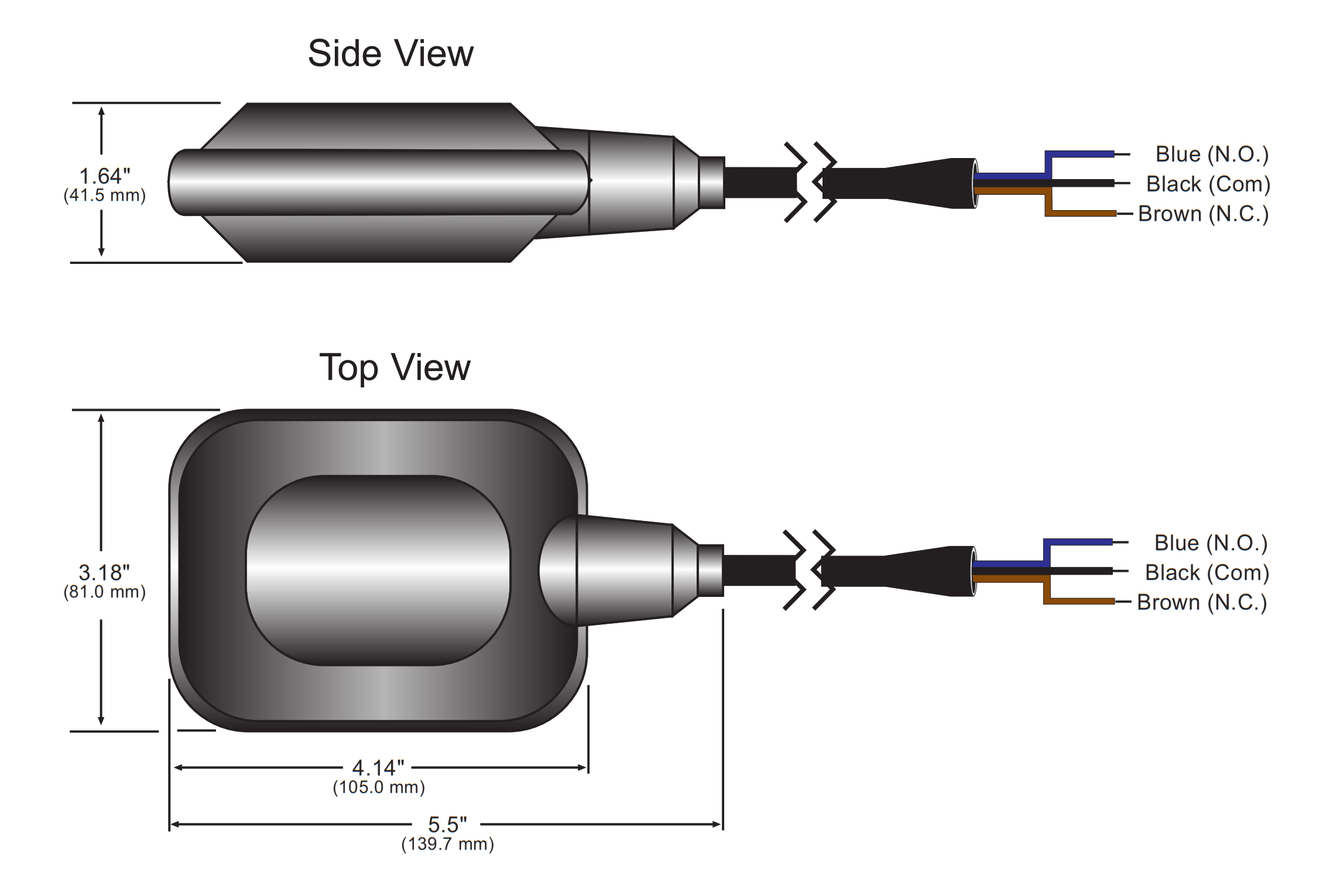

Dimensional drawings
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| FLI-LV417201 | LV41-7201 | PP - 20' Cable | $132.00 | |
| FLI-LV417501 | LV41-7501 | PP - 50' Cable | $195.00 |
