Headline
Switch-Tek LP50 Non-Intrusive Capacitance Level Switch
The general purpose non-intrusive capacitance level switch provides reliable liquid level detection of water based conductive liquids with non-coating and/or scaling characteristics with a 1A relay output. Media examples include hydrochloric, sulfuric acid and water. The liquid level sensor is bracket mounted on the exterior wall of non-metallic tanks and applied as a high level alarm or low level alarm.
Features & Benefits
Key Features
- Non-intrusive level detection through plastic or fiberglass walls
- Rugged PSO enclosure rated NEMA 4X with conduit connector
- 60VA relay selectable NO or NC via power supply wiring polarity
Installation Options
- Installed with PE, PP or PVDF adhesive 3M mounting brackets
- Three different bracket materials makes attachment to tank easy
- Compatible with non-metallic or FRP tanks up to 1" thick
Applications & Benefits
- Ideal for high purity conductive liquids
- Use as a high or low level switch
- Non-invasive measurement through tank walls
- Simple mounting and installation

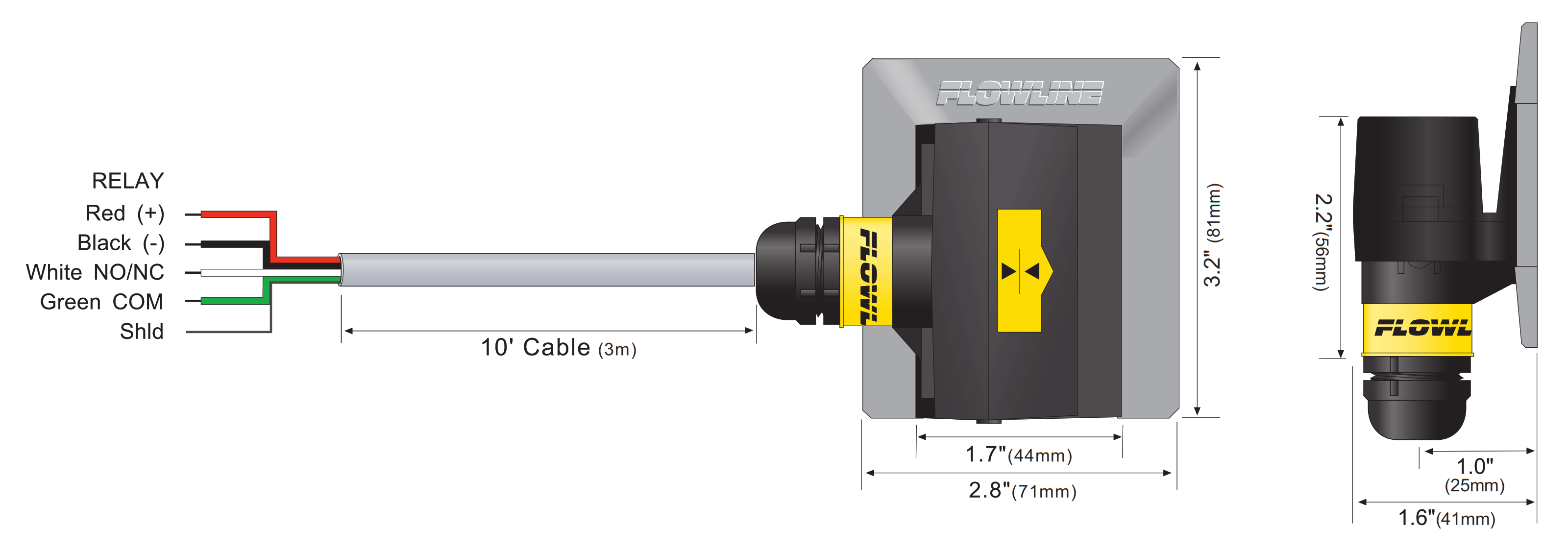

Dimensional drawings
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| FLI-LP505005 | LP50-5005 | Non-Intrusive Capacitance Level Switch - PVDF Bracket | $365.00 | |
| FLI-LP506005 | LP50-6005 | Non-Intrusive Capacitance Level Switch - PE Bracket | $330.00 | |
| FLI-LP951001 | LP95-1001 | Mounting Bracket - PP | $39.00 | |
| FLI-LP955001 | LP95-5001 | Mounting Bracket - PVDF | $72.00 | |
| FLI-LP956001 | LP95-6001 | Mounting Bracket - PE | $39.00 |
