Headline
Switch-Pro AX18 with Compact Junction Box
Intended for side wall installation, the general purpose level switch package provides reliable liquid level detection with one 1A relay and a compact junction box for integral wiring termination. Available in two level sensor technologies, select the type and material based upon your application media. This liquid level switch package is widely applied in bulk storage and process tank level applications as a high level alarm or low level alarm.
Features & Benefits
Key Features
- Rugged sensor construction
- PP-Ryton or PFA sensor for corrosive applications
- PP enclosure with NEMA 4X rating
- Swivel base with terminal strip
- Flexible configuration
- 60VA relay selectable NO or NC
- Power supply wiring polarity selection
- Two sensing technology options
- Broad application coverage
Key Benefits
- Versatile installation
- Ideal for side wall tank mounting
- Suitable for outdoor installation
- Direct PLC/SCADA wire connectivity
- Application advantages
- Excellent for corrosive liquids
- Effective with coating liquids

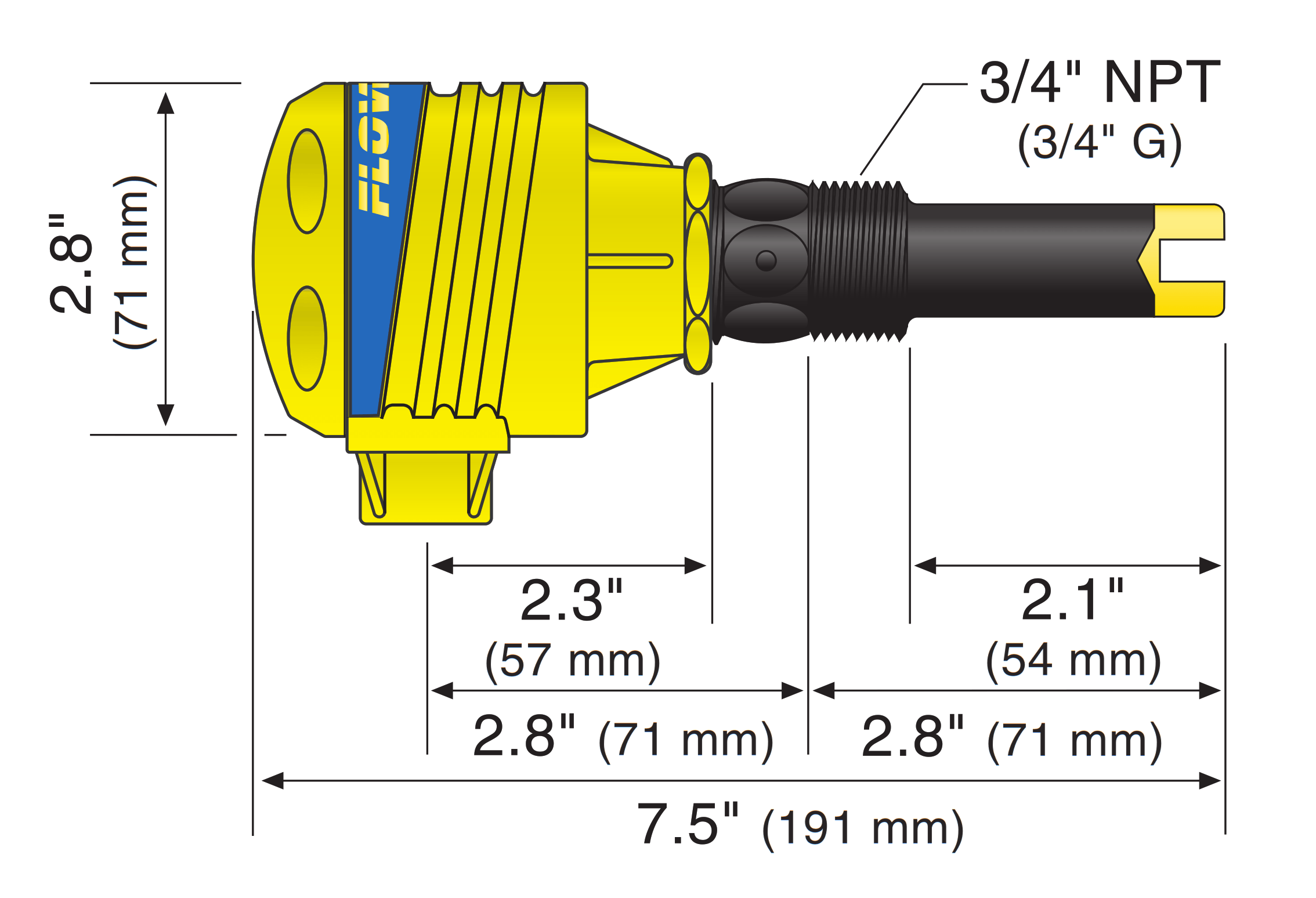

Dimensional drawings
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| FLI-AU181130 | AU18-1130 | Ultrasonic - SPST Relay - PP - 3/4 inch NPT | $680.00 | |
| FLI-AU181134 | AU18-1134 | Ultrasonic - SPST Relay - PP - 3/4 inch G | $710.00 | |
| FLI-AU182130 | AU18-2130 | Ultrasonic - SPST Relay - PFA - 3/4 inch NPT | $875.00 | |
| FLI-AU182134 | AU18-2134 | Ultrasonic - SPST Relay - PFA - 3/4 inch G | $930.00 | |
| FLI-AZ181130 | AZ18-1130 | Vibration - SPST Relay - Ryton - 3/4 inch NPT | $700.00 | |
| FLI-AZ181134 | AZ18-1134 | Vibration - SPST Relay - Ryton - 3/4 inch G | $735.00 |
