Headline
Float-Point AVX6 with Compact Junction Box
The general purpose level float switch package provides reliable, multi-point liquid level detection of relatively clean liquids such as water, diluted chemicals and light weight oils up to 8' (2.44m) with 1-5 reed switch outputs and a compact junction box for integral wiring termination. The stainless steel level float switch is selected for high temperature or pressure process tank level applications.
Features & Benefits
Key Features
Construction
- Rugged 316 stainless steel float, guide and mounting plug
- PP enclosure rated NEMA 4X with swivel base for conduit alignment
Operation
- Multi-point float level switch solution for high temp and pressure
- 60VA dry contacts connect directly to a PLC or relay controller
- Assembled to your guide length and switch set point dimensions
Key Benefits
Installation & Control
- Mounts on the top of tank or sump
- Select from 1 to 5 switch points
- Each switch point connects directly to PLC/SCADA
Applications
- Ideal for high temperature, vapor and pressure applications

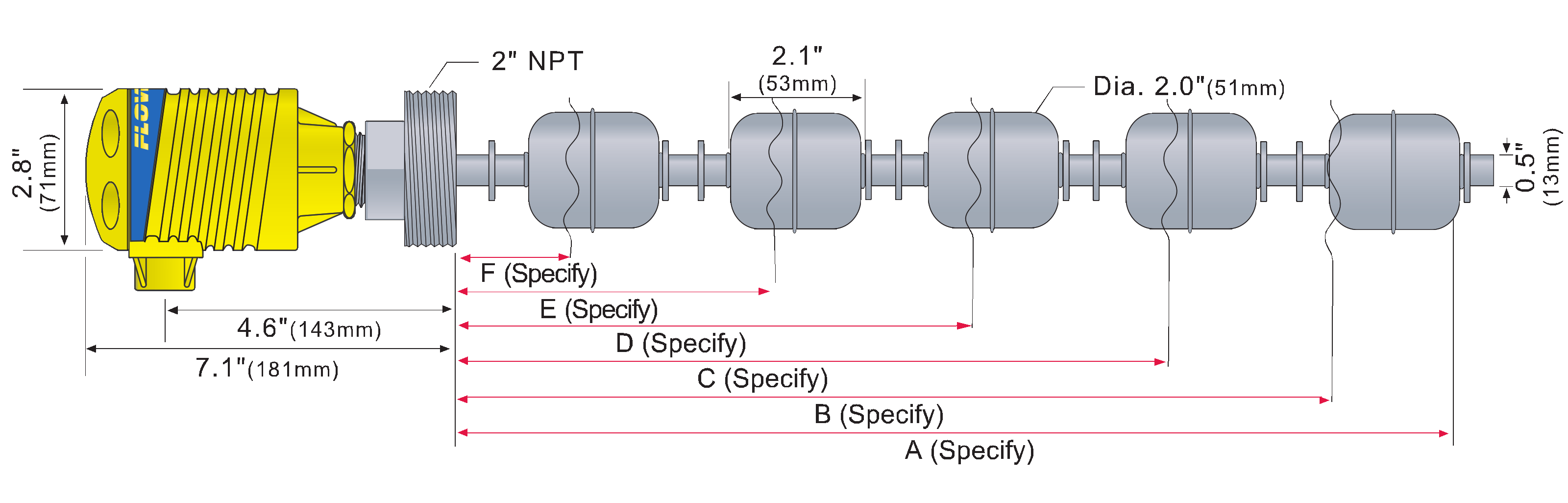

Dimensional drawings
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| FLI-AV165243AB | AV16-5243-A-B | 316 SS - 1-Float - 2 inch NPT | $389.00 | |
| FLI-AV265243ABC | AV26-5243-A-B-C | 316 SS - 2-Float - 2 inch NPT | $494.00 | |
| FLI-AV365243ABCD | AV36-5243-A-B-C-D | 316 SS - 3-Float - 2 inch NPT | $599.00 | |
| FLI-AV465243ABCDE | AV46-5243-A-B-C-D-E | 316 SS - 4-Float - 2 inch NPT | $704.00 | |
| FLI-AV565243ABCDEF | AV56-5243-A-B-C-D-E-F | 316 SS - 5-Float - 2 inch NPT | $809.00 |
