Headline

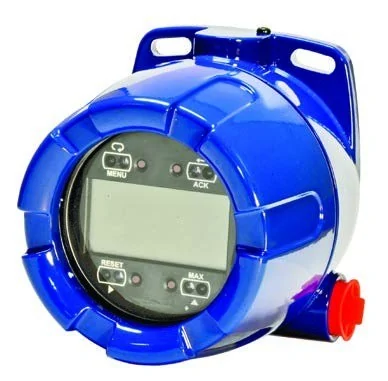

DataKeep 300500 XP Level Indicator
The explosion proof loop powered level indicator displays engineering units connected in series with one 4-20 mA continuous level transmitter. Select this level indicator for hazardous applications with an explosion proof level sensor. The windowed field enclosure is easily wall mounted and includes two conduit connectors.
Features & Benefits
Features:
- Rugged aluminum explosion proof windowed enclosure
- LCD display indicates engineering units and descriptors
- Non-volatile memory with security password lock out
- SafeTouch through-glass button programming
- 32-point, square root or exponential linearization
Benefits:
- Simple, loop powered display for use in explosion proof applications
- Add display to current loop in the classified area
- Displays in inches, feet, meters, gallons or liters of liquid in the tank
- Easy to configure and scale for your application
- Provides Hi or Lo level alarm indication
Additional Notes
Specifications:
- Display type: LCD, Upper: 5 digits, Lower: 7 characters
- Display units: Engineering
- Display output: 0.001 to 99,999
- Display height: Main: 0.70” (18mm), Secondary: 0.4” (10mm)
- Decimal point: 0, 1, 2 or 3
- Configuration: Push button, SafeTouch through-glass
- Memory: Non-volatile
- Sensor input: (1) 4-20 mA transmitter
- Loop power: 9-30 VDC
- Voltage drop: 3.0 VDC @ 20 mA w/o backlight, 6.0 VDC @ 20 mA with backlight
- Ambient temp.: F: -40° to 167°, C: -40° to 75°
- Enclosure rating: NEMA 4X, 7 & 9 (IP68)
- Enclosure mat’l.: Aluminum
- Window mat’l.: Glass
- Conduit entrance: Dual, 3/4” NPT
- Classification: Explosion proof
- Compliance: CE
- Approvals: FM, ATEX, IECEx, CSA

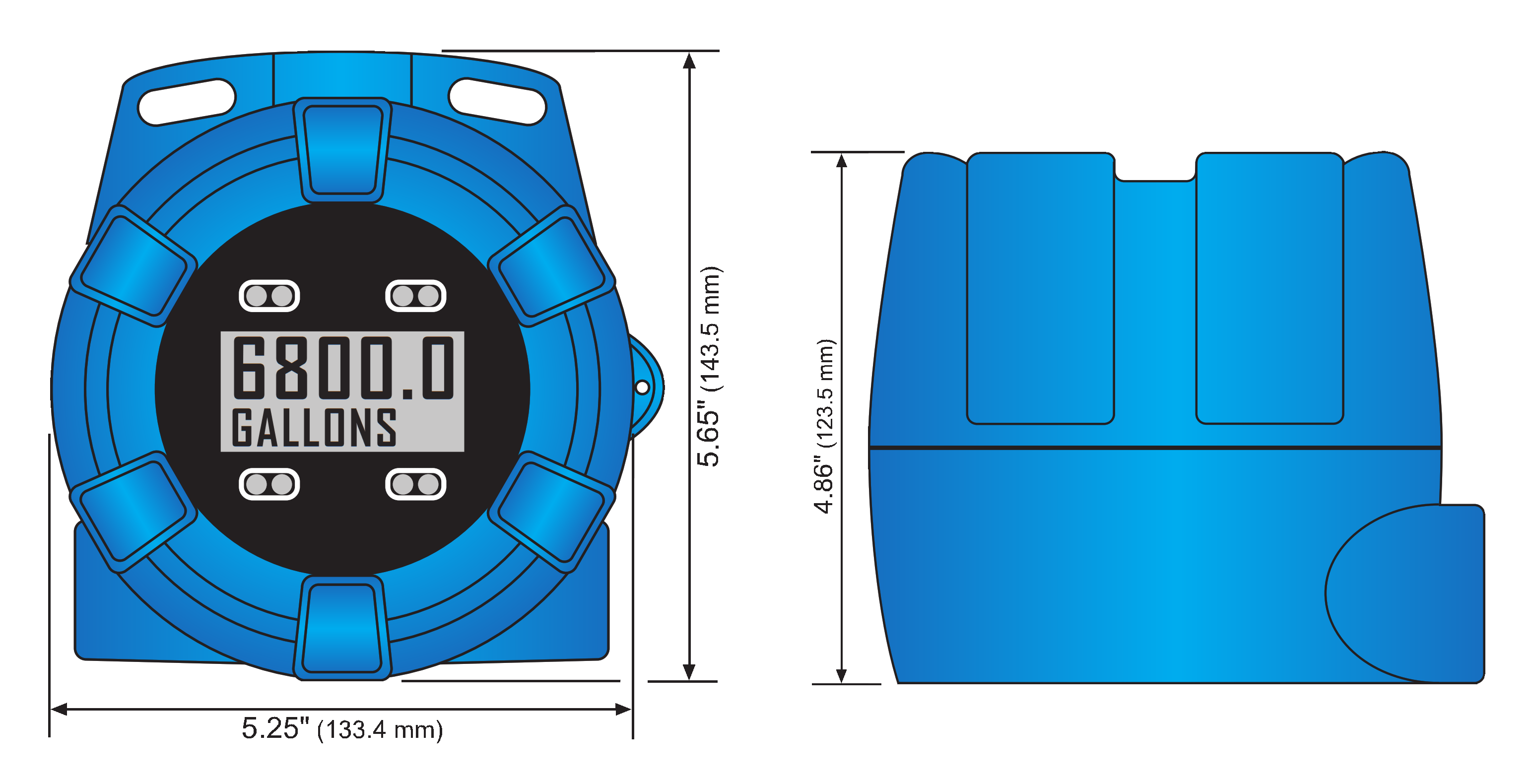

Dimensional drawings
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| FLI-300500 | 300500 | Explosion Proof Level Indicator | $1,595.00 | |

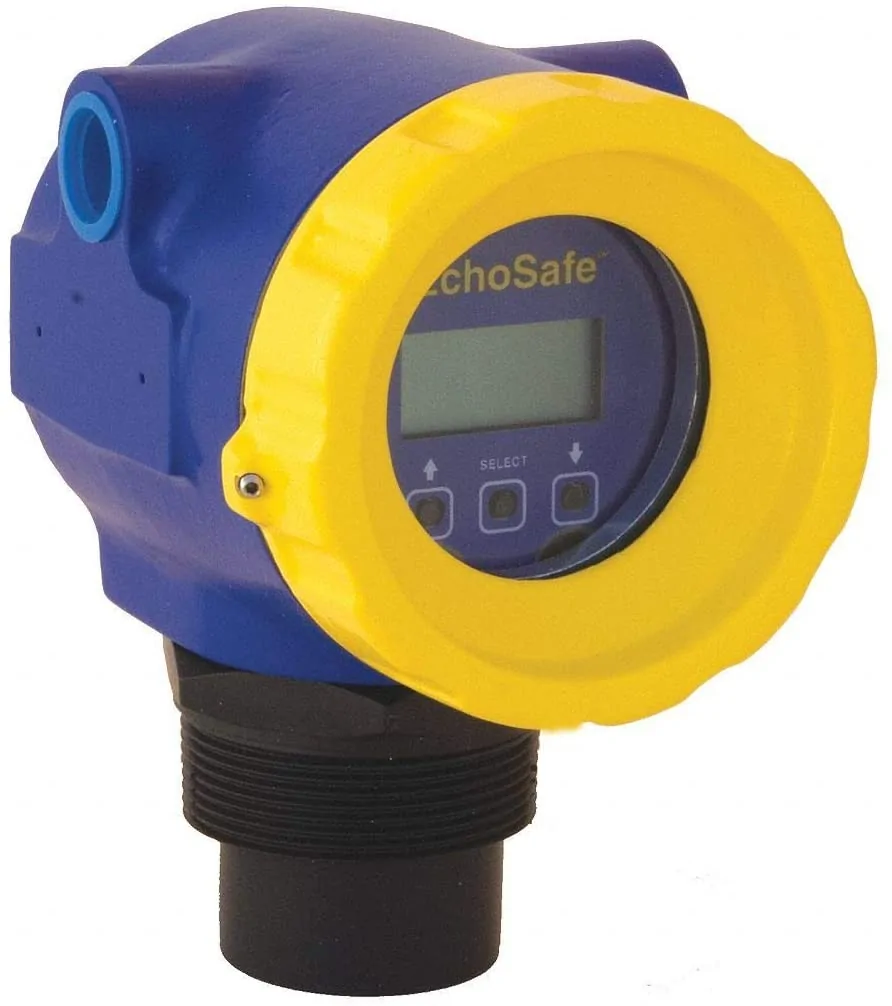

| FLI-XP880 | XP88-0 | 7.5m (24.6') Range - 2 inch NPT | $1,445.00 | |
| FLI-XP890 | XP89-0 | 10m (32.8') Range, - 2 inch NPT | $1,645.00 |
