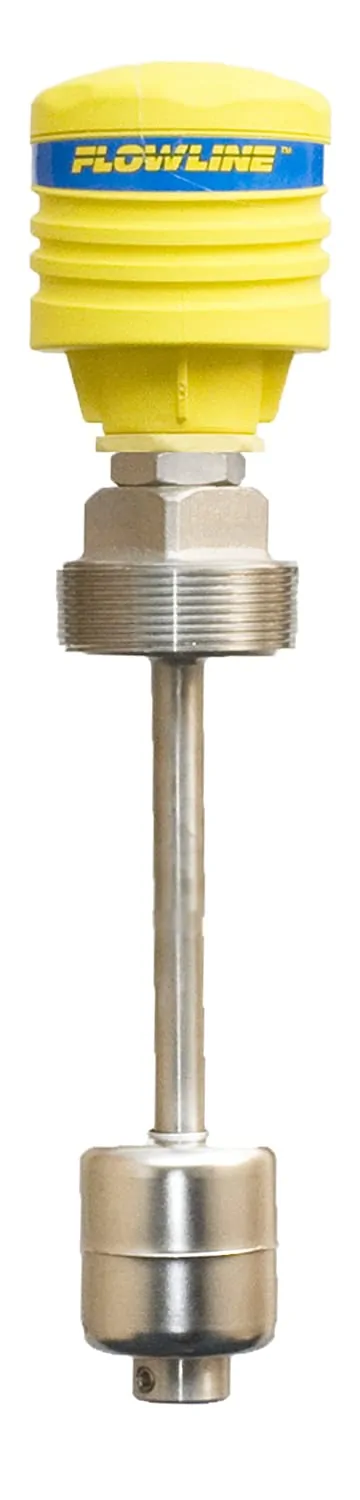

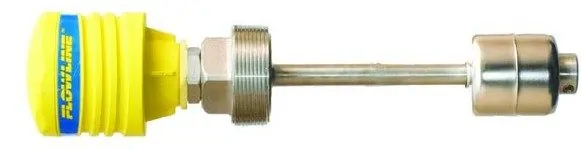

FloaTek LV55 Float Level Transmitter
The general purpose float level transmitter provides continuous level measurement up to 6.5’ (2m) with a 4-20 mA signal output, and is factory configured to your selected dimension. This stainless steel liquid level sensor is well suited for high temperature or pressure tank level applications with relatively clean liquids such as water, diluted chemicals and light weight oils. Application examples include boilers and process vessels.
Features & Benefits
Features:
- Level measurement solution for high temperature or pressure
- Rugged 316 stainless steel float guide and process mounting plug
- Assembled to your guide length and measurement span dimensions
- PP junction box rated NEMA 4X with conduit port and terminal strip
Benefits:
- Great for high pressure applications up to 200 psi
- Use in applications with foam or turbulence
- Loop powered output will interface directly with PLC/SCADA or local display
Additional Notes
Specifications:
- Range: 12” to 6.5’ (30cm to 2m)
- Resolution: 1/4”
- Configuration: None, fixed span
- Orientation: ± 30° from vertical
- Specific gravity: 0.55 minimum
- Supply voltage: 10 to 30 VDC
- Loop resist.: 600 Ohms @ 24 VDC
- Signal output: 4-20 mA, two-wire
- Process temp.: F: -40° to 185°, C: -40° to 85°
- Ambient temp.: F: -40° to 140°, C: -40° to 60°
- Pressure: 200 psi (13.8 bar)
- Enclosure rating: NEMA 4X (IP65)
- Enclosure mat.: PP, UL94VO
- Conduit entrance: Single, 1/2” NPT
- Process mount: 2” NPT
- Guide-float mat.: 316 SS
- Classification: General purpose
- Compliance: CE

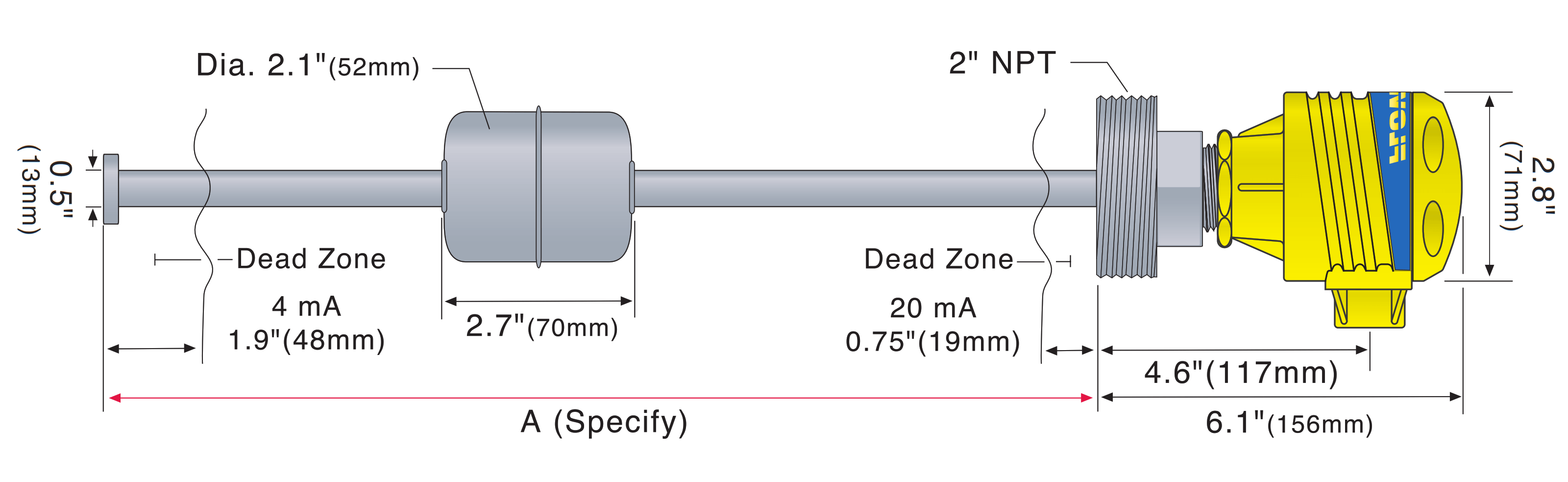

Dimensional drawings
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| FLI-LV55S001 | LV55-S001 | 316 SS - Custom Length | $840.00 | |
| FLI-LV55S00116 | LV55-S001-16 | 316 SS - 16 inch (41cm) | $1,080.00 | |
| FLI-LV55S00124 | LV55-S001-24 | 316 SS - 24 inch (61cm) | $1,280.00 | |
| FLI-LV55S00132 | LV55-S001-32 | 316 SS - 32 inch (81cm) | $1,480.00 | |
| FLI-LV55S00136 | LV55-S001-36 | 316 SS - 36 inch (91cm) | $1,580.00 | |
| FLI-LV55S00142 | LV55-S001-42 | 316 SS - 42 inch (107cm) | $1,730.00 | |
| FLI-LV55S00148 | LV55-S001-48 | 316 SS - 48 inch (122cm) | $1,880.00 |
