Commander LI90 Multi-Tank Level Controller
The general purpose level controller displays engineering units with four 4-20 mA continuous level sensor inputs and 6 programmable relays. Select from one of three run configurations including multi-tank with 4 level sensor inputs and 4 relays; or pump control with 1 level sensor input and 6 relays for lift stations in simplex (one pump) or duplex (two pumps) level control modes; or differential level with 2 level sensor inputs and 4 relays for municipal screen or rake control. Relays can be configured on a single set point (high or low level alarm) or latched on two set points for automatic fill or empty pump or valve control with selectable time delay. The graphic LCD display indicates span and relay status for each input channel. The optional MicroSD card enables data-logging storage and retrieval.
Features:
- Multi-tank controller with three run mode configurations
- Graphic LCD display indicates channel span and relay status
- Easy user configuration via the push button display module
- DIN enclosure with NEMA 4X faceplate and shallow case
- Simulation for configuration testing and troubleshooting
- Data logging and retrieval via the optional MicroSD card
Benefits
- Get PLC performance in a simple to use controller
- Choose multi-tank, differential or pump controller modes of operation
- Simple HMI makes configuration quick and easy
Specifications:
- Display type: LCD, graphic
- Display pixels: 128 x 64
- Display units: Engineering
- Display output: 0 to 999999
- LCD indication: Relay status
- Configuration: Push button
- Backlight: Yes
- Memory: Non-volatile
- Opt. memory: MicroSD card (up to 1 GB)
- Linearization: Tank shapes
- Sensor inputs: -1001: (4) 4-20 mA, -2001: (2) 4-20 mA
- Supply voltage: 10-30 VDC
- Contact type: -1001: 6 SPST relays, -2001: No relays
- Consumption: 130 @ 24 VDC
- Contact rating: 3A @ 30 VDC or 250 VAC resistance load (-1001 only)
- Repeater output: (2) 4-20 mA, 24 VDC (-2001 only)
- Ambient temp.: F: 32° to 122°, C: 0° to 50°
- Weight: 12.5 oz (0.354 kg)

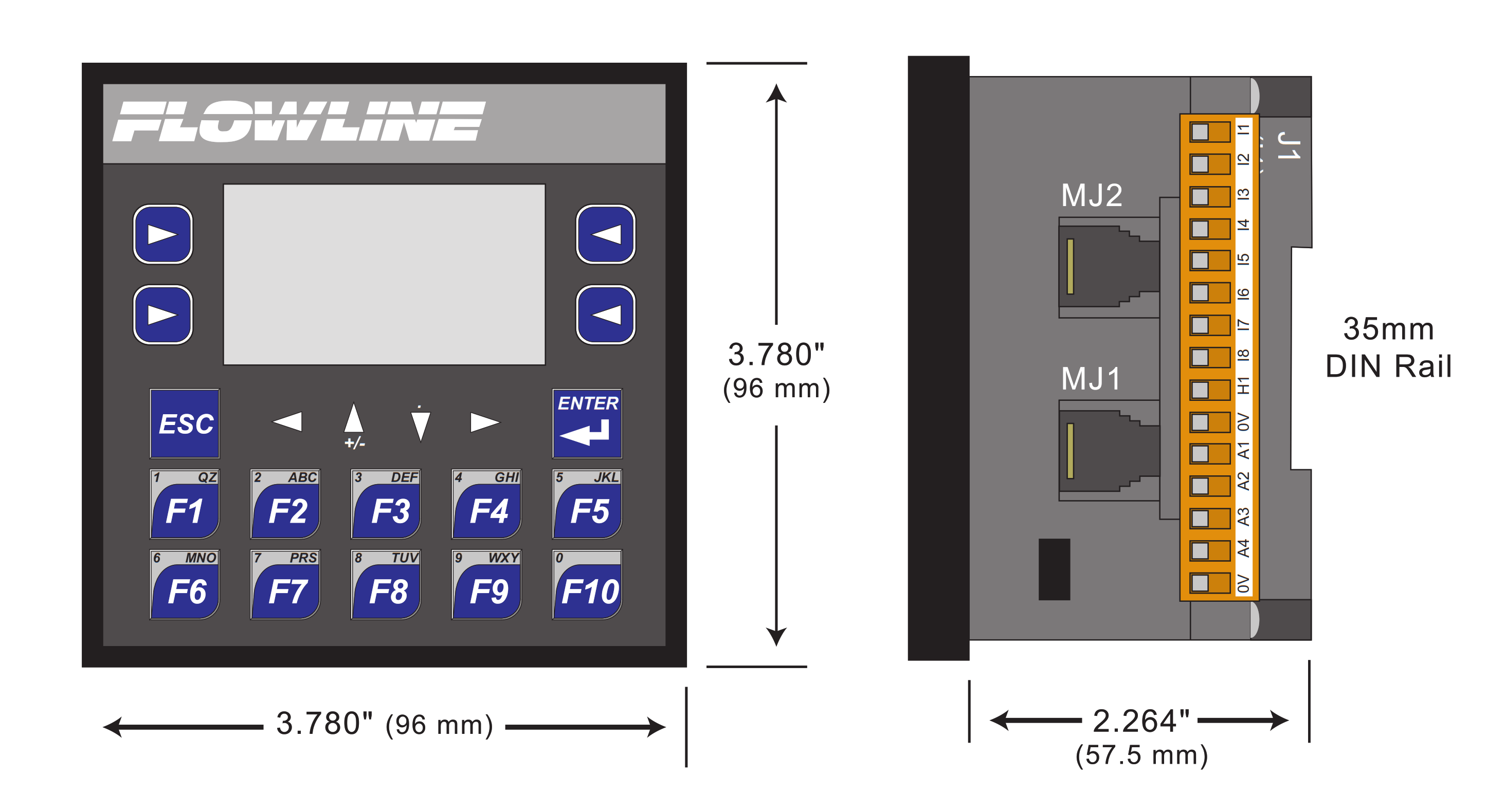

- Enclosure type: 1/4 DIN, panel mount with 35mm DIN rail
- Enclosure rating: NEMA 4X (IP65) faceplate
- Enclosure mat.: Polycarbonate
- Classification: General purpose
- Compliance: CE
- Approvals: cULus
| SKU | Description | List price | - |
|---|---|---|---|
| FLI-LI901001 | LI90-1001 | Multi-Tank Level Controller | $995.00 |
