Headline

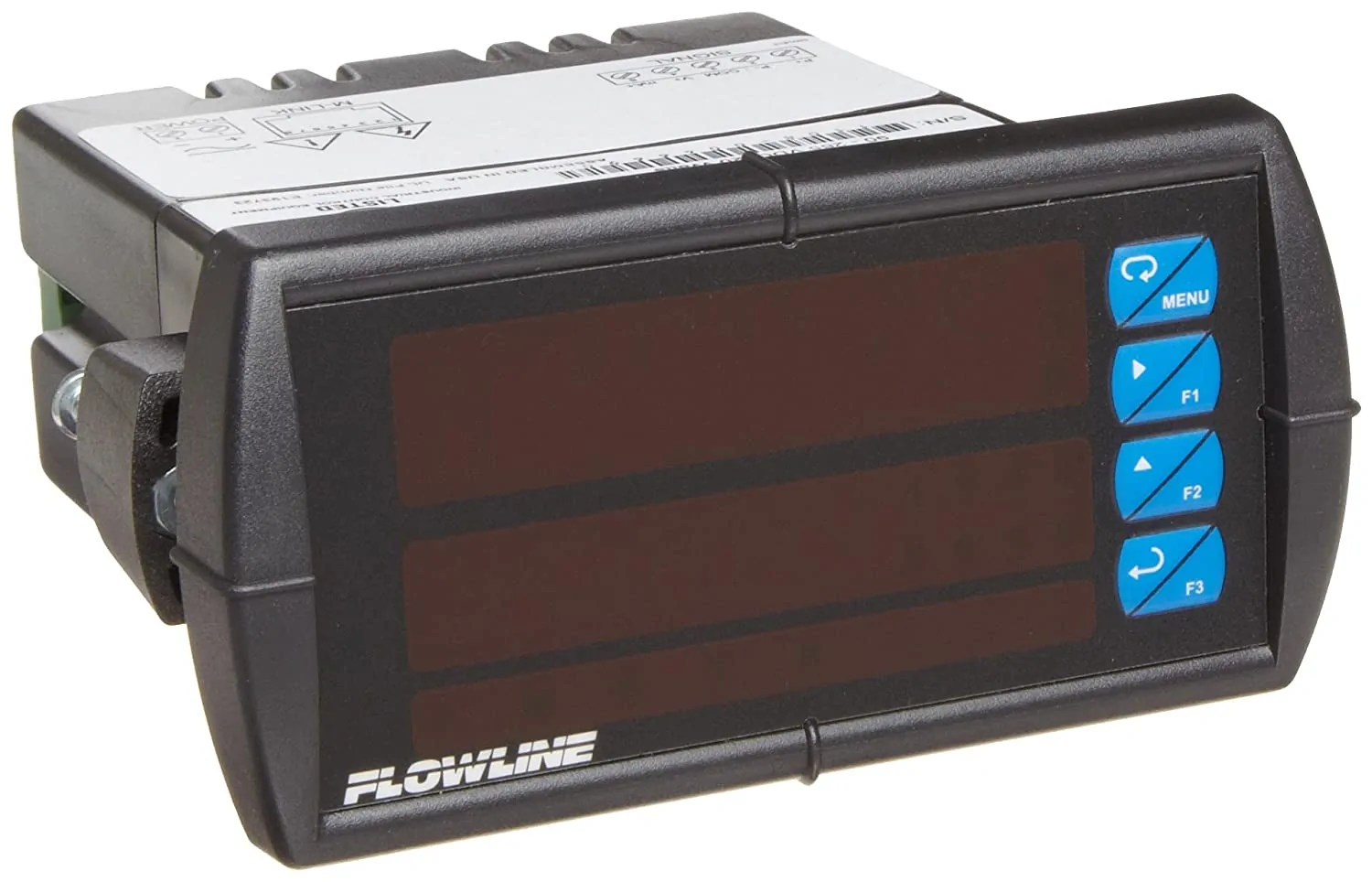

DataView LI55 Level Sensor Controller
The general purpose AC or DC powered tank or silo level controller displays engineering units with one 4-20 mA level transmitter and is offered in three configurations with optional two or four programmable relays and an isolated 4-20 mA repeater. Each relay can be configured on a single set point as a high or low level alarm, or latched on two set points for automatic fill or empty control in simplex or duplex modes. Select this panel mount controller for use with general purpose two or three-wire level sensors. For field mount installation, add a single or double NEMA box with optional flash and/or audible alarm.
Features & Benefits
Features:
- LED main display and secondary unit display with relay status
- Easy configuration via the push button display module
- 1/8 DIN enclosure with NEMA 4X faceplate and shallow case
- Isolated power supply to sensor with optional 4-20 mA repeater
- Non-volatile memory with security password protection
- 32-point linearization function for volumetric measurement
- Available with NEMA boxes and tank alarm accessories
Benefits:
- Capable of displaying units in gallons, liters, inches, feet, meters or percent of liquid
- Add 2 or 4 relays to control tank pumps, valves or alarms
- Add repeater output to repeat the 4-20 mA signal to another PLC, SCADA or display
- Available in AC or DC powered configurations
Additional Notes
Specifications:
- Display type: LED, 6-digit
- Display units: Engineering
- Display output: -99999 to 999999
- Display height: Main: 0.6” (15mm), Secondary: 0.46” (12mm)
- Decimal point: Floating
- LED indication: Relay status
- Configuration: Push button
- Memory: Non-volatile
- Linearization: 2-32 point function
- Sensor input: (1) 4-20 mA or 0-10 VDC
- Supply voltage: -1_ 1: 85-265 VAC @ 50-60 Hz, -8 _1: 12-24 VDC ±10%
- Consumption: VAC: 20 watts max., VDC: 15 watts max.
- Sensor supply: 24 VDC ± 5% @ 200 mA
- Repeater output: 4-20 mA, 24 VDC ± 5% @ 40 mA supply
- Contact type: -12_1: (2) SPDT relays, -14_1: (4) SPDT relays
- Contact rating: 3A @ 30 VDC, 250 VAC resistive load
- Ambient temp.: F: -40° to 149°, C: -40° to 65°
- Enclosure type: 1/8 DIN, panel mount
- Enclosure rating: NEMA 4X (IP65) faceplate
- Enclosure mat’l: Polycarbonate
- Classification: General purpose
- Compliance: CE
- Approvals: UL, cULus listed, E160849, 508 industrial control equipment
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| FLI-LI551001 | LI55-1001 | 85-265 VAC - Meter Only - No Repeater | $672.00 | |
| FLI-LI551011 | LI55-1011 | 85-265 VAC - Meter w/2 Relays - 4-20 mA Repeater | $808.00 | |
| FLI-LI551201 | LI55-1201 | 85-265 VAC - Meter w/2 Relays - No Repeater | $776.00 | |
| FLI-LI551211 | LI55-1211 | 85-265 VAC - Meter w/2 Relays - 4-20 Repeater | $900.00 | |
| FLI-LI551401 | LI55-1401 | 85-265 VAC - Meter w/4 Relays - No Repeater | $860.00 | |
| FLI-LI551411 | LI55-1411 | 85-265 VAC - Meter w/4 Relays - 4-20 mA Repeater | $980.00 | |
| FLI-LI558001 | LI55-8001 | 12-24 VDC - Meter Only - No Repeater | $800.00 | |
| FLI-LI558011 | LI55-8011 | 12-24 VDC - Meter Only - 4-20 mA Repeater | $946.00 | |
| FLI-LI558201 | LI55-8201 | 12-24 VDC - Meter w/2 Relays - No Repeater | $900.00 | |
| FLI-LI558211 | LI55-8211 | 12-24 VDC - Meter w/2 Relays - 4-20 Repeater | $1,020.00 | |
| FLI-LI558401 | LI55-8401 | 12-24 VDC - Meter w/4 Relays - No Repeater | $980.00 | |
| FLI-LI558411 | LI55-8411 | 12-24 VDC - Meter w/4 Relays - 4-20 mA Repeater | $1,100.00 |
