Headline

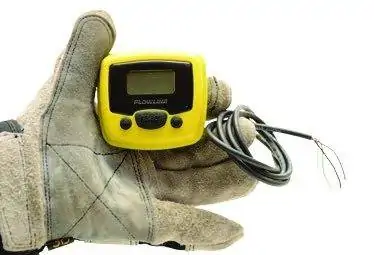

PodView LI40 Level Sensor Indicator
Compatible with DL series EchoPod sensors, the general purpose level indicator displays the measured value, applicable relay status and set point configuration of the attached sensor, as the sensor was configured to operate by WebCal software. PodView requires no programming, and receives both power and data from the connected sensor. Through the indicator, users can adjust EchoPod relay set points in the field. PodView is installed up to 15’ (4.5m) away from the sensor in a panel or NEMA enclosure.
Features & Benefits
Features:
- Field mount indicator for use with EchoPod sensors
- Indicates level or volume and EchoPod relay status
- Enables EchoPod relay set point changes in the field
- Powered directly by the attached EchoPod sensor
- Repeats EchoPod sensor data with no programming
- Corrosion resistant enclosure with NEMA 4 faceplate
Additional Notes
Specifications:
- Display type: LCD, 6-digit with 4 relay indicators
- Display units: Engineering
- Display output: -99999 to 999999
- Character height: 0.374” (9.5mm)
- Decimal point: Fixed
- Dot indication: Relay status
- User interface: Three button
- Sensor input: (1) EchoPod sensor
- Supply voltage: Provided by EchoPod
- Operating temp.: F: -4° to 140°, C: -20° to 60°
- Cable type: 4-conductor, #22 AWG
- Cable length: 6’ (1.8m)
- Cable jack. mat.: Polyurethane
- Enclosure rating: NEMA 4 (IP65) faceplate
- Enclosure mat’l: Polycarbonate
- Enclosure type: Panel mount
- Button material: Silicon rubber
- Classification: General purpose
- Compliance: CE
Dimensional drawings
Alternate configurations
SKU | Description | List price | - |
---|---|---|---|
FLI-LI401001 | LI40-1001 | Level Indicator for EchoPod | $275.00 |
