Headline
DataLoop LI24 Intrinsically Safe Level Sensor Indicator

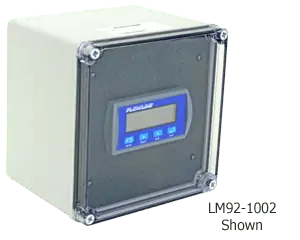

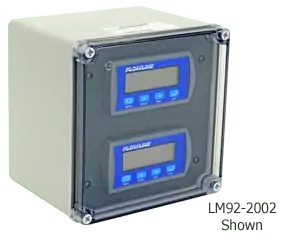

The intrinsically safe loop powered tank or silo level indicator displays engineering units connected in series with one 4-20 mA continuous level transmitter, and is available with two optional relays and an isolated 4-20 mA repeater. Select this panel mount indicator for use with intrinsically safe two-wire level sensors. For field mount installation, add a single or two indicator NEMA box.
Features & Benefits
Features:
- LCD main display with secondary unit and bar graph display
- Easy configuration via the push button display module
- Available with 2 latching relays and isolated 4-20 ma repeater
- DIN enclosure with NEMA 4X faceplate and shallow case
- Linear, square root and programmable exponent functions
- Non-volatile memory with security password protection
- Available with NEMA boxes for easy field installation
Benefits:
- Bright backlit display for easy night viewing
- Capable of displaying units in gallons, liters, inches, feet, meters or percent of liquid
- Optional relays provide convenient local alarms
- Recieves power and signal via the transmitters current loop with minimal voltage drop
Additional Notes
Specifications:
- Display type: LCD, 5-digit top / 8-digit bottom
- Display units: Engineering
- Display output: -9999 to 99999 (top) / -9999999 to 999999999 (bottom)
- Display height: 0.7” (17.8mm) top / 0.4” (10.2mm) bottom
- Decimal point: Floating
- Backlight: LED
- Configuration: Push button
- Memory: Non-volatile
- Sensor input: (1) 4-20 mA transmitter
- Loop power: 12-30 VDC
- Voltage drop: 1.5 VDC w/o backlight, 4.5 VDC w/ backlight
- Contact type: -10_1: N/A; -12_1: (2) SPST relays (latching)
- Contact rating: -10_1: N/A; -12_1: 1A @ 250 VAC / VDC res. load
- Contact delay: -10_1: N/A; -12_1: 0-9.999 seconds
- Repeater output: -1_01: N/A; -1_11: 4-20 mA, 7-30 VDC ext. power required
- Process temp.: F: -40° to 167°, C: -40° to 75°
- Ambient temp.: F: -40° to 185°, C: -40° to 85°
- Enclosure type: 1/8 DIN, panel mount
- Enclosure rating: NEMA 4X (IP65) faceplate
- Enclosure mat’l: PPE & PS blend
- Classification: Intrinsically safe
- Compliance: CE
- Approvals: UL-C/UL; Class I, Div 1, Groups A, B, C & D T4; Class II, Div 2, Groups A, B, C & D T4; Ex ia IIC T4 (Canada); Class I Zone 0, Zone 1, AEx ia IIC T4 (US); Class I Zone 2, Group IIC T4 (US)
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| FLI-LI241001 | LI24-1001 | Intrinsically Safe Level Indicator | $776.00 | |
| FLI-LI241011 | LI24-1011 | Intrinsically Safe Level Indicator with 4-20mA Repeater | $990.00 | |
| FLI-LI241201 | LI24-1201 | Intrinsically Safe Level Indicator with 2 Relays | $990.00 | |
| FLI-LI241211 | LI24-1211 | Intrinsically Safe Level Indicator with 2 Relays & 4-20mA Repeater | $1,120.00 |
